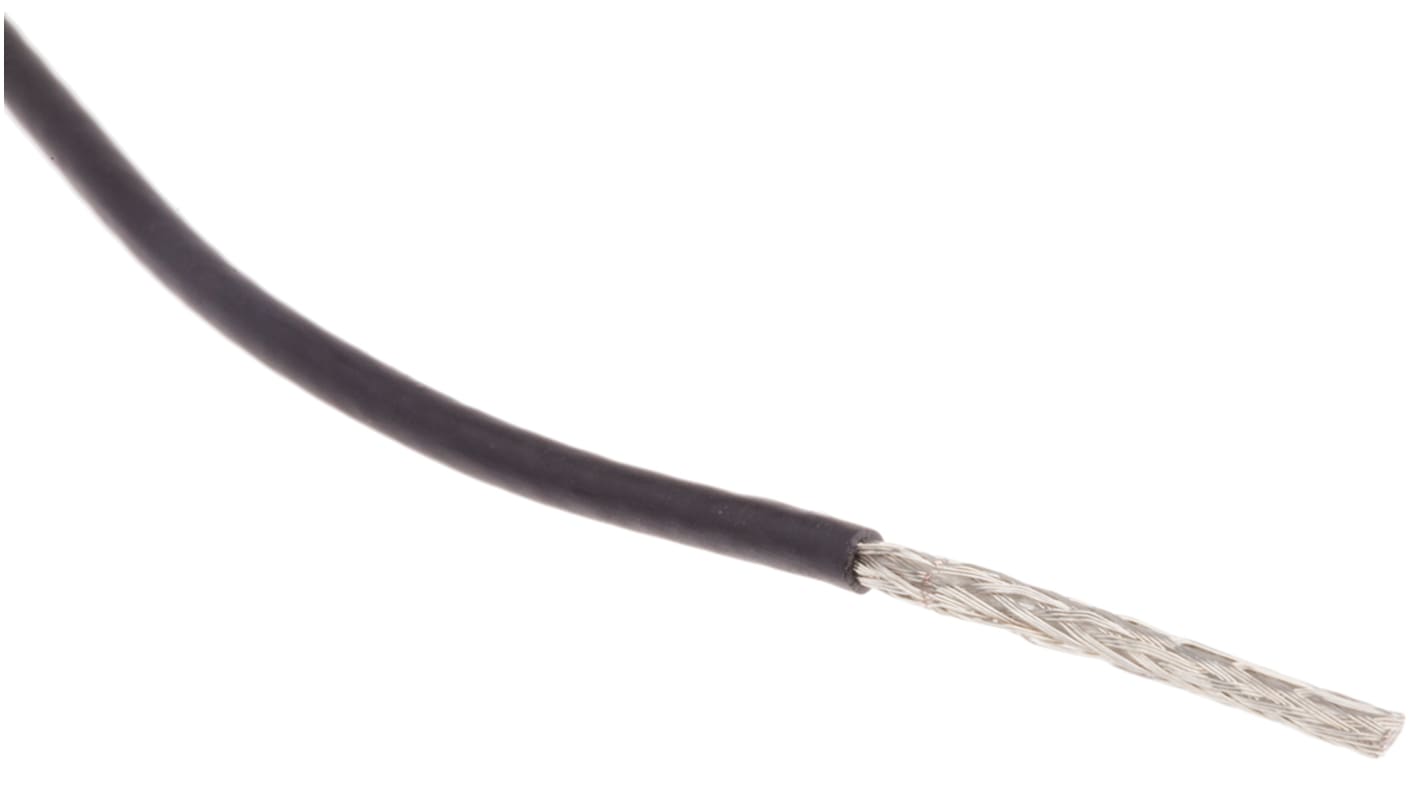

Belden MRG1781 Series Coaxial Cable, 100m, RG178PE Coaxial, Unterminated
- RS Stock No.:
- 521-7944
- Manufacturer:
- Belden
15 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price 1 Reel of 100 Metre(s)
MYR1,369.06
| Reel(s) | Per Reel | Per Metre* |
| 1 + | MYR1,369.06 | MYR13.691 |
| *price indicative | ||
- RS Stock No.:
- 521-7944
- Manufacturer:
- Belden
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- NL
Product Details
RG178
A RG 179 coaxial cable for transmission purposes.
Features and Benefits
· Meets the requirements of MIL-C-17-9
· PE Dialectric
· PVC sheath to European Standard HD 624
· Meets the requirements of MIL-C-17-9
· PE Dialectric
· PVC sheath to European Standard HD 624
Specifications
Attribute | Value |
|---|---|
| Terminated/Unterminated | Unterminated |
| Coaxial Type | RG178PE |
| Outer Diameter | 1.8mm |
| CPR Certification | Eca |
| Characteristic Impedance | 50 Ω |
| Attenuation | 19 dB/100m @10 MHz |
| Length | 100m |
| Sheath Colour | Black |
| Conductor Strand Type | Stranded |
| Sheath Material | Polyvinyl Chloride PVC |
| Shielding | Tinned Copper Braid |
| Insulation Material | PE |
| Velocity ratio | 66% |
| Minimum Operating Temperature | -25°C |
| Series | MRG1781 |
| Core Strands | 7/0.1 |
| Capacitance | 100pF/m |
| Conductor Material | Silver Plated Copper Clad Steel |
| Size of Strands | 0.1 mm |
| Maximum Operating Temperature | +70°C |
| Operating Temperature Range | -25 → +70 °C |
| Number of Strands | 7 |
