- RS Stock No.:
- 260-7596
- Mfr. Part No.:
- EZ086AL.TP.3M
- Manufacturer:
- Times Microwave
6 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
5 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price 1 Reel of 3 Metre(s)
MYR1,181.89
| Reel(s) | Per Reel | Per Metre* |
| 1 + | MYR1,181.89 | MYR393.963 |
| *price indicative | ||
- RS Stock No.:
- 260-7596
- Mfr. Part No.:
- EZ086AL.TP.3M
- Manufacturer:
- Times Microwave
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details

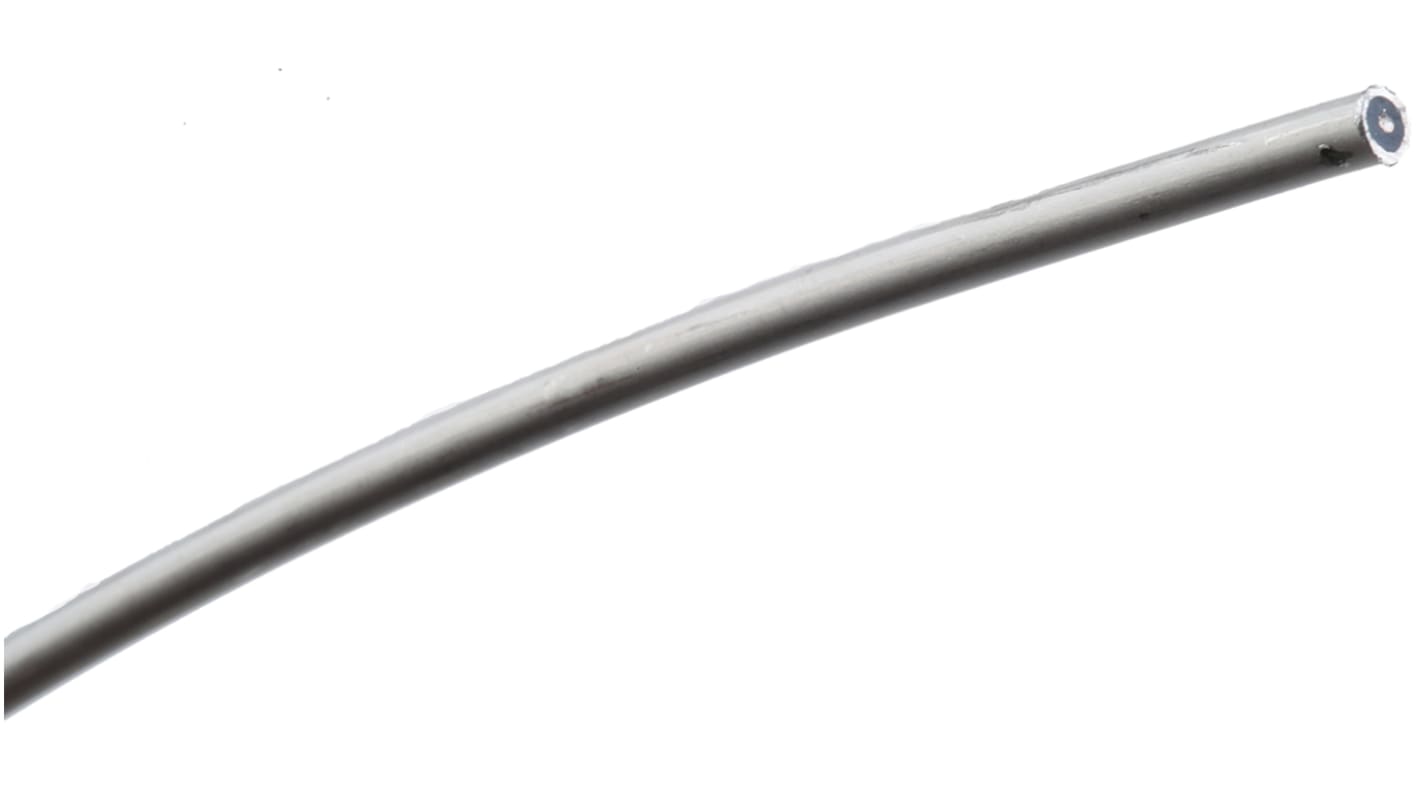

Coaxial Cable RG402, 405
Cable for microwave applications made of silver-coated, copped plated steel strand, with a
PTFE dielectric. The shielding can be made of copper or aluminium (AL-TP). With aluminium, the cable is easier to shape and lighter in weight (over 40% lighter).
PTFE dielectric. The shielding can be made of copper or aluminium (AL-TP). With aluminium, the cable is easier to shape and lighter in weight (over 40% lighter).
Specifications
Attribute | Value |
|---|---|
| Terminated/Unterminated | Unterminated |
| Coaxial Type | RG405 |
| Outer Diameter | 2.2mm |
| Characteristic Impedance | 50 Ω |
| Attenuation | 3.23dB/100m@17GHz, 3.34dB/100m@18GHz, 3.46dB/100m@19GHz, 3.57dB/100m@20GHz |
| Length | 3m |
| Conductor Strand Type | Solid |
| Number of Strands | 1 |
| Maximum Operating Temperature | +125°C |
| Size of Strands | 0.51 mm |
| Conductor Material | Silver Plated Copper Clad Steel |
| Capacitance | 105pF/m |
| Core Strands | 1/0.51 |
| Operating Temperature Range | -40 → +125 °C |
| Insulation Material | PTFE |
| Velocity ratio | 69.5% |
| Minimum Operating Temperature | -40°C |
| Sheath Material | Aluminium |
