Belden 1694F Series SDI Coaxial Cable, 304.8m, RG6 Coaxial, Unterminated
- RS Stock No.:
- 187-6104
- Mfr. Part No.:
- 1694F B591000
- Manufacturer:
- Belden
Temporarily out of stock - back order for despatch 13/08/2024, delivery within 4 working days from despatch date
Added
Price Each
MYR36.355
| Units | Per Unit | Per Reel* |
| 305 + | MYR36.355 | MYR11,088.275 |
| *price indicative | ||
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 187-6104
- Mfr. Part No.:
- 1694F B591000
- Manufacturer:
- Belden
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details

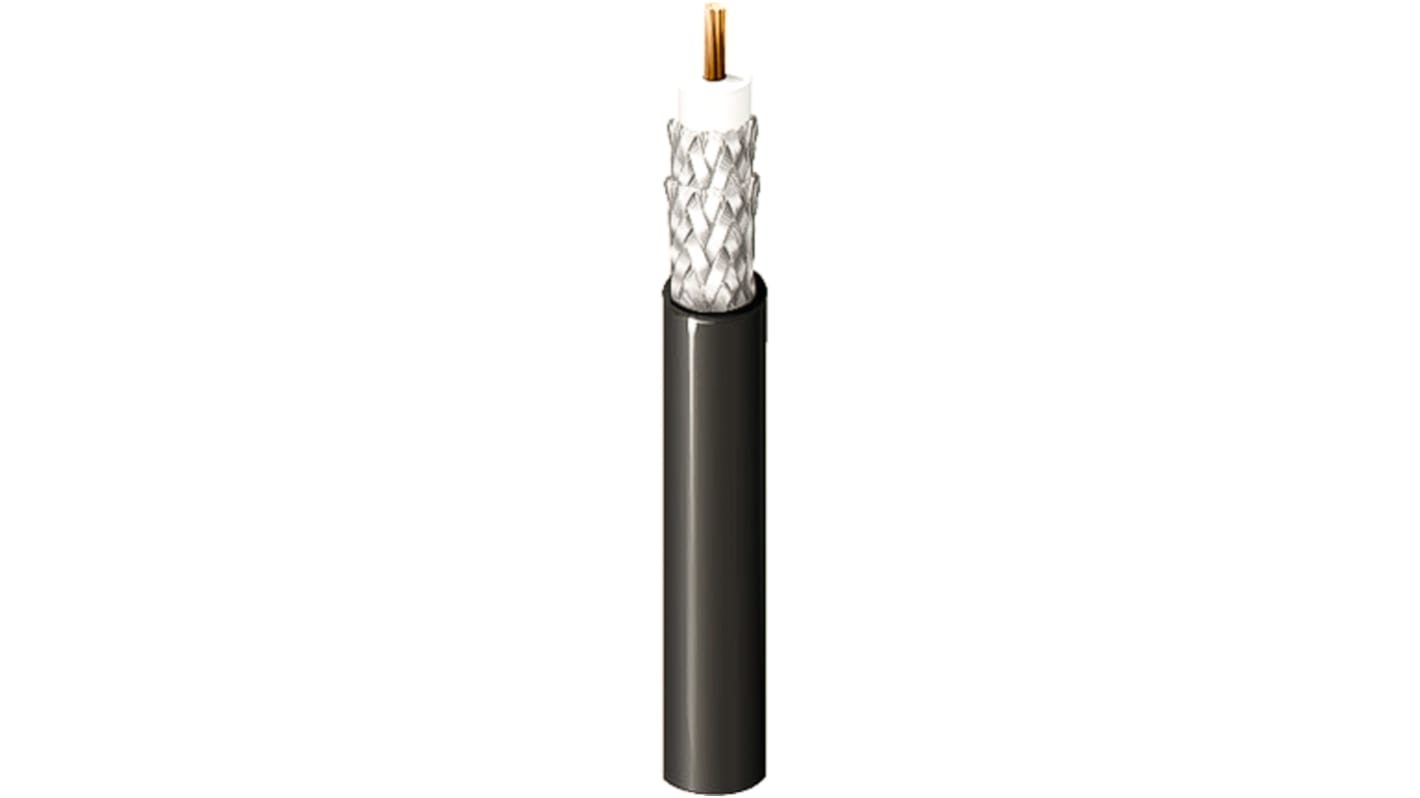

Belden 1694F Digital Coaxial Cable, 75 Ohm, 19 AWG
If you need a tough, long-lasting, high-performance coaxial cable for your digital video application, try the 1694F cable from Belden.
The Belden 1694F is a flexible SDI coaxial cable which is RG-6 rated. It has a PVC outer jacket, which ensures high durability against abrasions, water and oils. It can be operated in temperatures of -35°C to +75°C, making it a versatile choice for your installation. It offers high conductivity due to its 7x27 stranded bare copper conductor, enabling dependable signal transmission.
The 1694F B591000 cable is 304.8m with a black sheath and has a voltage rating of 300V.
Features and Benefits:
• Low loss serial digital coax
• Foam Polyethylene insulation (PE)
• Double 95% tinned copper braid shield defends against electromagnetic interference
• 90 lbs (41 kg) maximum pull tension
• Foam Polyethylene insulation (PE)
• Double 95% tinned copper braid shield defends against electromagnetic interference
• 90 lbs (41 kg) maximum pull tension
Applications:
Digital Video
6 Gb/s UHDTV
HD-SDI 1080p
6 Gb/s UHDTV
HD-SDI 1080p
Why is shielding used in cables?
Cables which are screened, or shielded, are better protected again electromagnetic interference (EMI) than unshielded versions. EMI refers to electrical noise which is conducted or radiated, and it can negatively affect the functioning of devices and equipment. Screening reduces crosstalk between cables (signal leakage), ensuring better transmission.
Specifications
Attribute | Value |
|---|---|
| Terminated/Unterminated | Unterminated |
| Coaxial Type | RG6 |
| Outer Diameter | 7.01mm |
| Characteristic Impedance | 75 Ω |
| Attenuation | 0.007 dB/ 100 m |
| Length | 304.8m |
| Sheath Colour | Black |
| Conductor Strand Type | Stranded |
| Fire Behaviour | Flame Retardant |
| Shielding | Tinned Copper |
| Insulation Material | Foam HDPE |
| Velocity ratio | 0.8 |
| Conductor Material | Bare Copper |
| Sheath Material | Polyvinyl Chloride PVC |
| Minimum Operating Temperature | -30°C |
| Operating Temperature Range | -30 → +75 °C |
| Maximum Operating Temperature | +75°C |
| Capacitance | 55.78pF/m |
| Series | 1694F |
