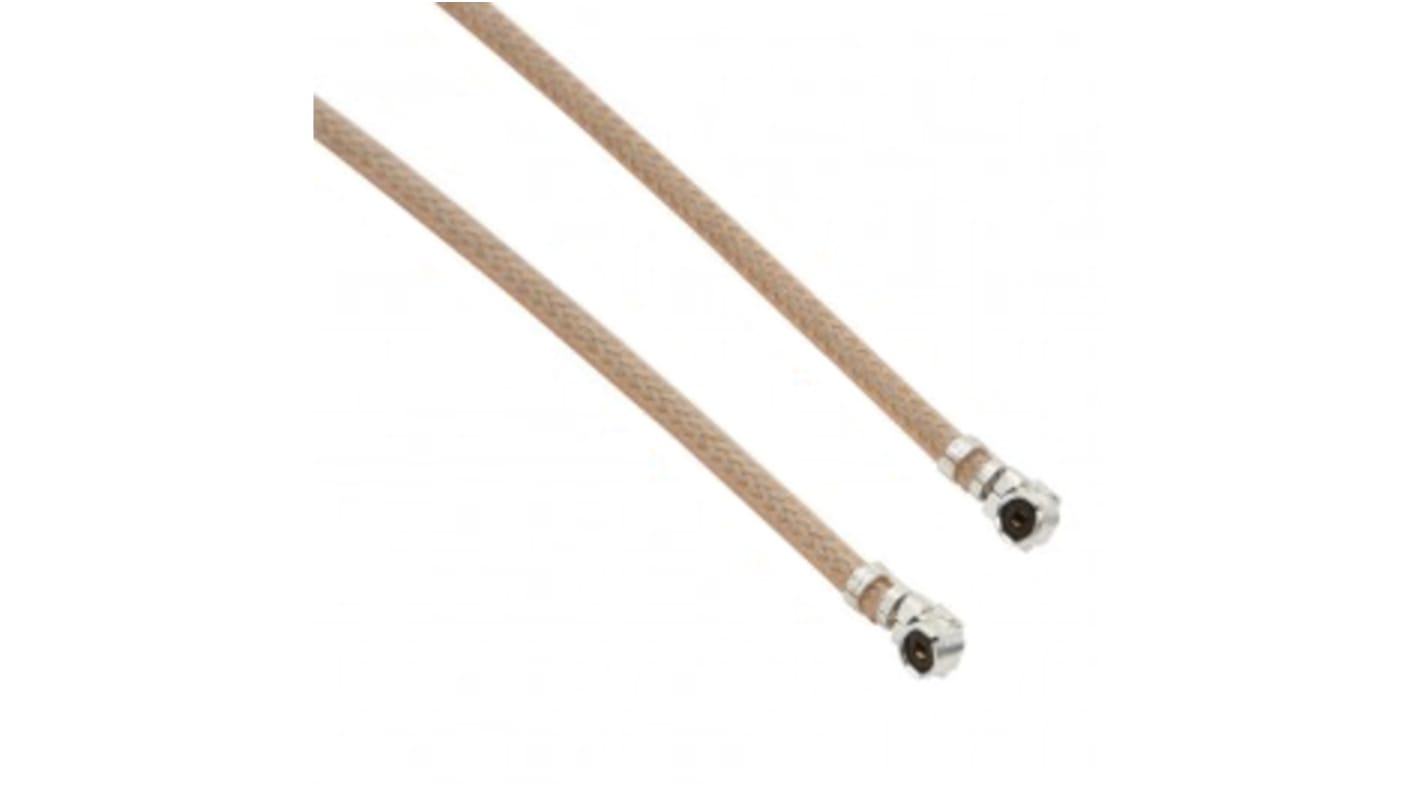

Amphenol RF AMC Series Male U.FL to Male U.FL Coaxial Cable, 1m, RG178 Coaxial, Terminated
- RS Stock No.:
- 144-0937
- Mfr. Part No.:
- A-1PA-178-01KN2
- Manufacturer:
- Amphenol RF
23 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR60.11
| Units | Per Unit |
| 1 - 24 | MYR60.11 |
| 25 - 49 | MYR57.99 |
| 50 + | MYR55.81 |
- RS Stock No.:
- 144-0937
- Mfr. Part No.:
- A-1PA-178-01KN2
- Manufacturer:
- Amphenol RF
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
RF offers a full range of pre-assembled, fixed length, standard cable assemblies. Standard assemblies are for use in a variety of commercial and industrial applications that require standard configurations or lengths. Cables are available with most commercially available RF connector series mounted to popular flexible cables as well as semi-rigid conformable (hand formable) cable. Custom assemblies are also available.
AMC Right Angle Plug to AMC Right Angle Plug on RG-178 Cable, 1000MM
Specifications
Attribute | Value |
|---|---|
| Terminated/Unterminated | Terminated |
| Connector 1 | U.FL |
| Coaxial Type | RG178 |
| Connector 2 | U.FL |
| Connector 1 Gender | Male |
| Connector 2 Gender | Male |
| Connector 1 Orientation | Right Angle |
| Connector 2 Orientation | Right Angle |
| Characteristic Impedance | 50 Ω |
| Length | 1m |
| Sheath Colour | Natural |
| Conductor Strand Type | Stranded |
| Shielding | Tin Plated Annealed Copper Wire |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +90°C |
| Sheath Material | FEP |
| Series | AMC |
| Operating Temperature Range | -40 → +90 °C |
| Insulation Material | PBT |
| Conductor Material | Phosphor Bronze |
