Belden 83265 Series Coaxial Cable, 30.48m, RG178B/U Coaxial, Unterminated
- RS Stock No.:
- 136-6341
- Mfr. Part No.:
- 83265 009100
- Manufacturer:
- Belden
Temporarily out of stock - back order for despatch 04/10/2024, delivery within 4 working days from despatch date
Added
Price 1 Reel of 30 Metre(s)
MYR2,381.39
| Reel(s) | Per Reel | Per Metre* |
| 1 + | MYR2,381.39 | MYR79.38 |
| *price indicative | ||
- RS Stock No.:
- 136-6341
- Mfr. Part No.:
- 83265 009100
- Manufacturer:
- Belden
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- MX
Product Details

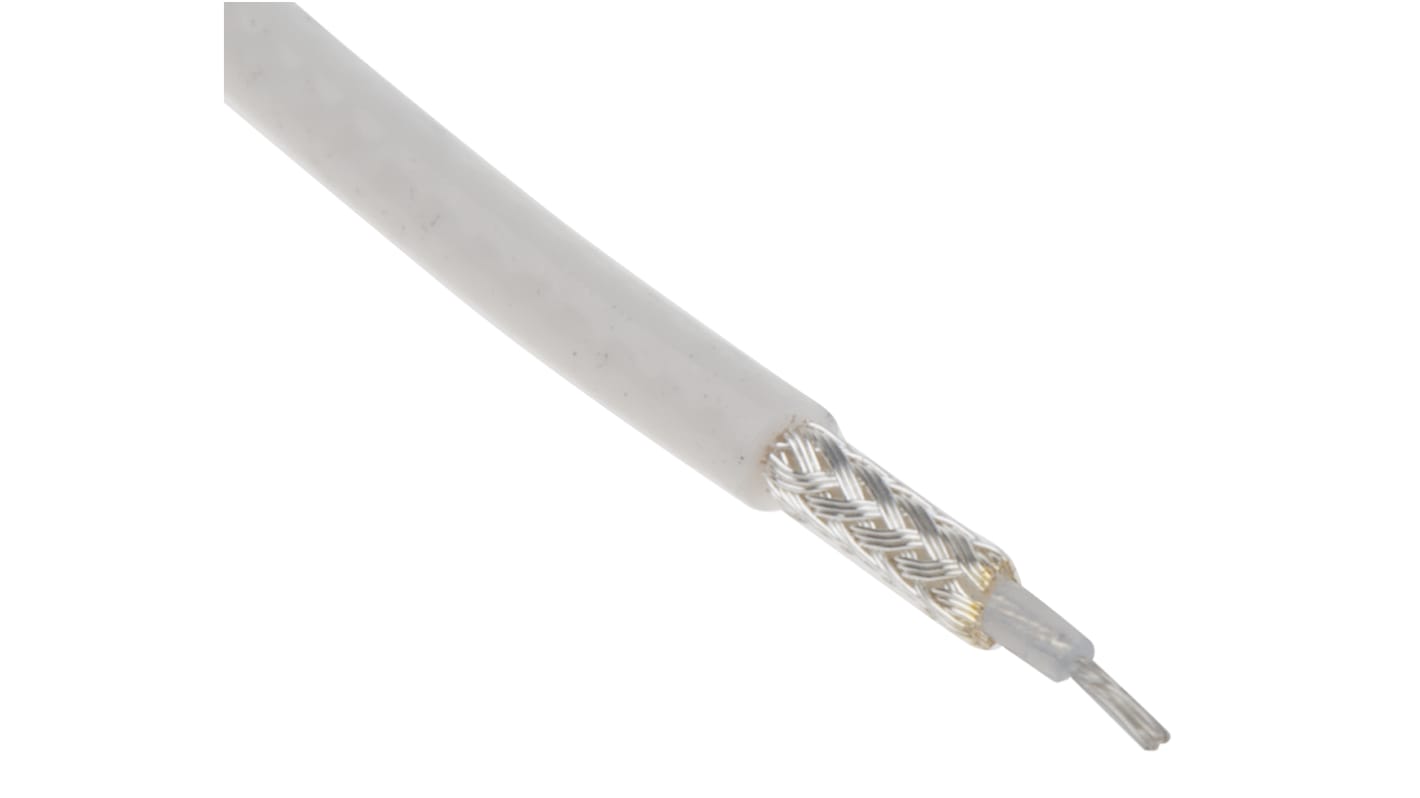

Belden Coaxial Cable, Shielded, 1.8mm OD - 83265 Series - 83265 009100
Need a reliable way to transfer radio frequency signals between pieces of equipment? Turn to this composite coaxial cable from Belden. Its robust silver-plated copper conductor has reliable electrical conductivity to ensure the stable transmission of high-frequency signals. This conductor is also resistant to corrosion, so you can be sure of a long service life. Thanks to the hard-wearing FEP outer jacket, this cable is resistant to wear and tear, which means you can safely use it in demanding settings.
Features & Benefits
• Wide operating temperature range between -70°C and +200°C to withstand extreme environments
• TFE insulation prevents overheating, for system safety
• Length of 30.48m to support long-distance connections
• TFE insulation prevents overheating, for system safety
• Length of 30.48m to support long-distance connections
Applications
• Satellites
• Automotive engineering
• Surveillance systems
• Automotive engineering
• Surveillance systems
What type of shield does this coaxial cable have?
This coaxial cable has a braided silver-plated copper outer shield with 95% coverage. This helps protect the conductors from EMI and static noise to ensure clear signal quality.
Specifications
Attribute | Value |
|---|---|
| Terminated/Unterminated | Unterminated |
| Coaxial Type | RG178B/U |
| Outer Diameter | 1.8mm |
| Characteristic Impedance | 50 Ω |
| Attenuation | 150.926 dB/100m @ 1000 MHz |
| Length | 30.48m |
| Sheath Colour | White |
| Conductor Strand Type | Stranded |
| Core Strands | 7/0.3 |
| Series | 83265 |
| Number of Strands | 7 |
| Operating Temperature Range | -70 → +200 °C |
| Insulation Material | TFE |
| Shielding | Silver Plated Copper Braid |
| Capacitance | 95.14pF/m |
| Sheath Material | FEP |
| Maximum Operating Temperature | +200°C |
| Size of Strands | 38 AWG |
| Velocity ratio | 69.5% |
| Standards Met | M17/93-RG178, MIL-C-17, UL 1637 |
| Conductor Material | Silver Plated Copper |
| Minimum Operating Temperature | -70°C |
