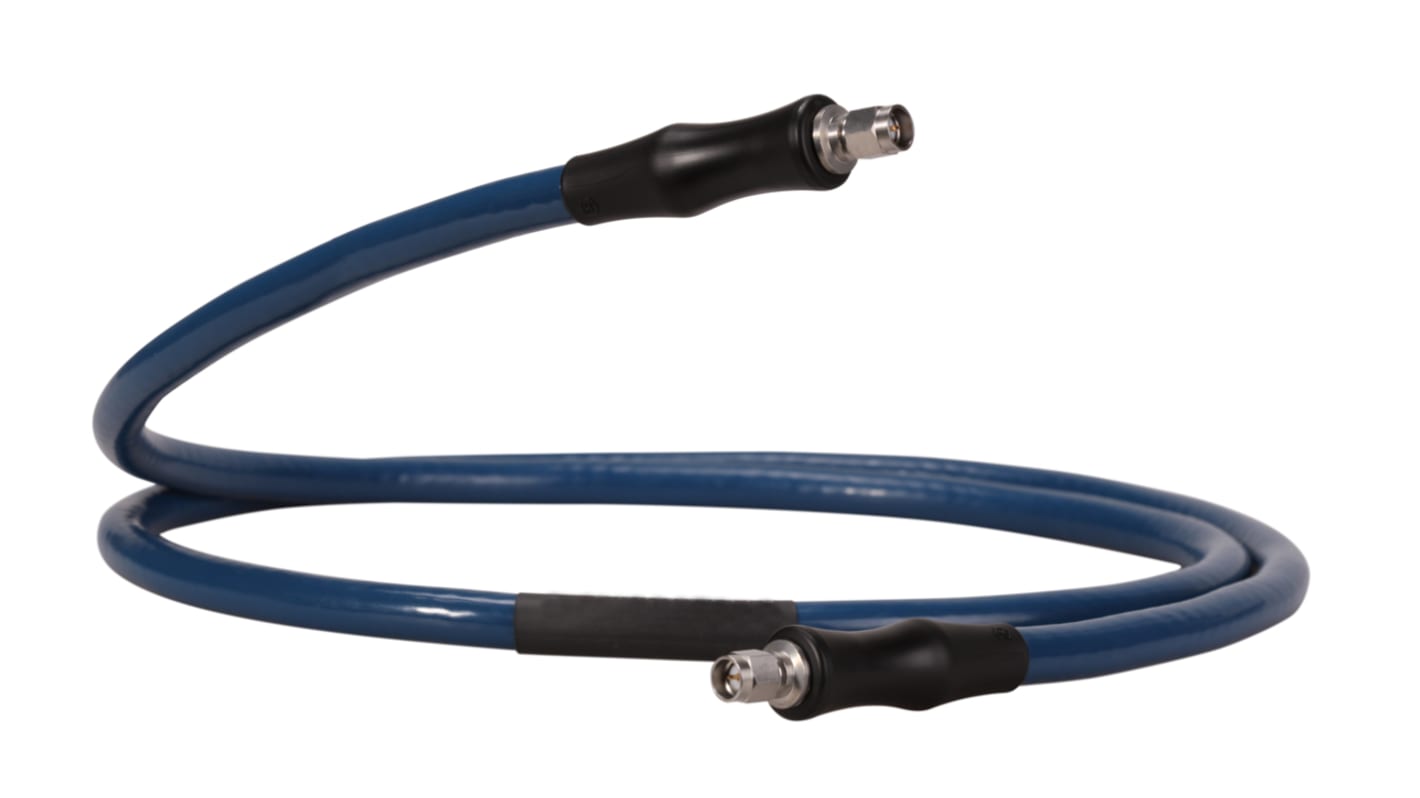

Huber+Suhner TL-8A Series Male SMA to Male SMA Coaxial Cable, 3m, Terminated
- RS Stock No.:
- 132-8155
- Mfr. Part No.:
- TL8A-11SMA-11SMA-03000-51
- Manufacturer:
- Huber+Suhner
4 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR1,864.66
| Units | Per Unit |
| 1 - 4 | MYR1,864.66 |
| 5 - 9 | MYR1,832.04 |
| 10 - 19 | MYR1,784.52 |
| 20 - 29 | MYR1,735.76 |
| 30 + | MYR1,691.04 |
- RS Stock No.:
- 132-8155
- Mfr. Part No.:
- TL8A-11SMA-11SMA-03000-51
- Manufacturer:
- Huber+Suhner
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CH
Product Details
Huber & Suhner TL-8A High Flex Test Cable Assemblies
From Huber & Suhner, a range of 50 Ω coaxial cable assemblies designed to test components and equipment up to 8 GHz with a network analyser. The TL-8A highly flexible test cables are made with a double screened foamed PE cable and blue TPU armoured jacket. This special feature provides outstanding oil, grease and abrasion resistant properties offering advanced protection in harsh environments. With excellent electrical performance, and high mechanical tolerance the TL-8A test assemblies are ideal for use in laboratories and test units. Available in various lengths and connector configurations.
Features and Benefits
• N connectors with quick-lock nut
• Up to 8 GHz
• Excellent insertion and return loss
• High mechanical endurance
• High mating cycle
• Halogen free
• Up to 8 GHz
• Excellent insertion and return loss
• High mechanical endurance
• High mating cycle
• Halogen free
Applications
• Test labs
• Operations
• Operations
Huber & Suhner Range
Specifications
Attribute | Value |
|---|---|
| Connector 1 | SMA |
| Terminated/Unterminated | Terminated |
| Connector 2 | SMA |
| Connector 1 Gender | Male |
| Connector 2 Gender | Male |
| Outer Diameter | 10.4mm |
| Characteristic Impedance | 50 Ω |
| Attenuation | 1.84 dB @ 8 GHz |
| Length | 3m |
| Sheath Colour | Blue |
| Voltage Rating | 500 V ac |
| Sheath Material | TPU |
| Capacitance | 82pF/m |
| Shielding | Steel Braid |
| Insulation Material | PE Foam (Cable), TPU (Armour) |
| Velocity ratio | 0.82 |
| Conductor Material | Cu-Be/Gold |
| Minimum Operating Temperature | -5°C |
| Maximum Operating Temperature | +85°C |
| Standards Met | IEC 61169-15 / MIL-STD-348A/310 |
| Series | TL-8A |
| Operating Temperature Range | -5 → +85 °C |
