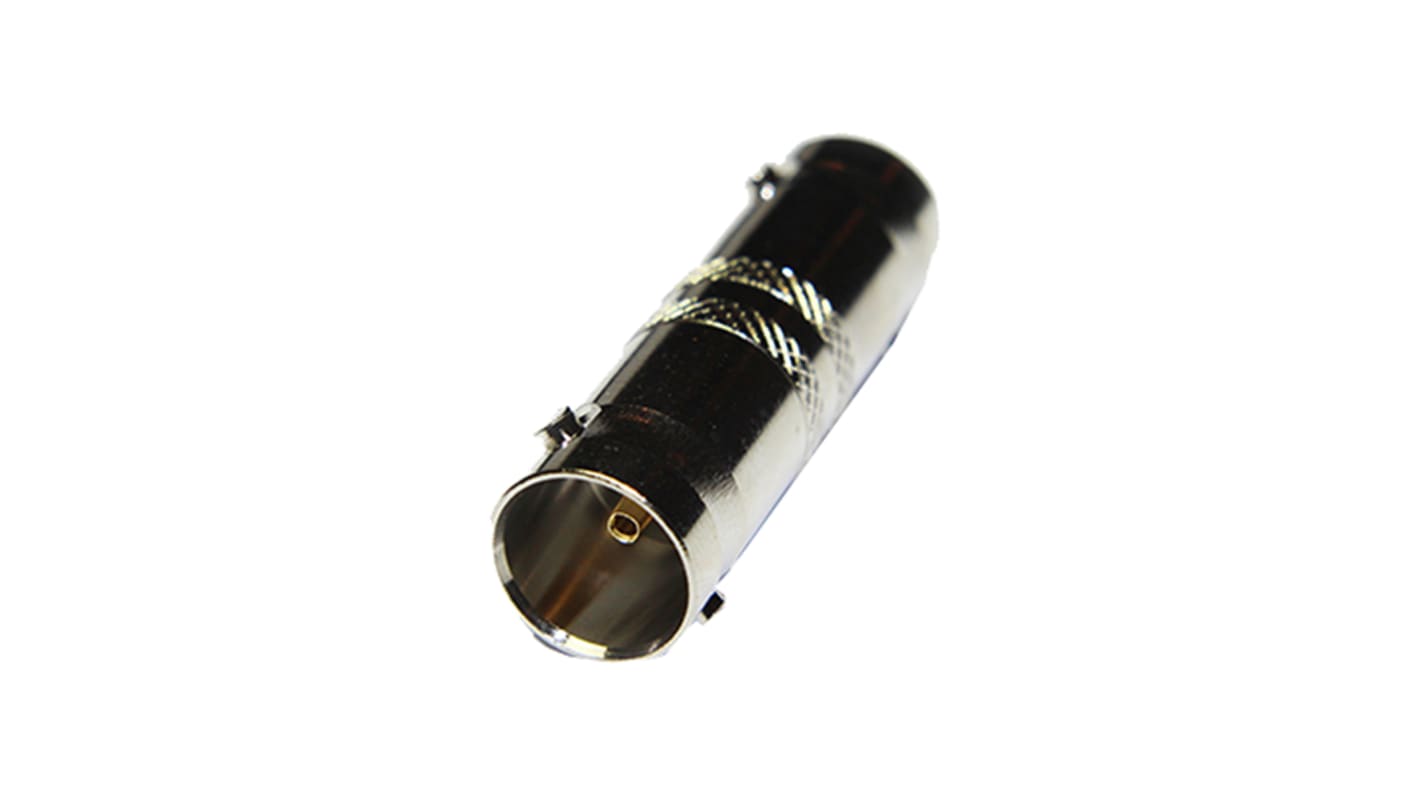

COAX Connectors Straight 75Ω Coaxial Adapter BNC Socket to BNC Socket 4GHz

RS Stock No.:: 916-0665
Mfr. Part No.:: 10-500-B36
Manufacturer:: COAX Connectors

COAX Connectors Straight 75Ω Coaxial Adapter BNC Socket to BNC Socket 4GHz

14 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each

MYR77.38

Units	Per Unit
1 - 4	MYR77.38
5 - 9	MYR75.75
10 - 24	MYR73.48
25 - 49	MYR71.68
50 +	MYR70.10

RS Stock No.:: 916-0665
Mfr. Part No.:: 10-500-B36
Manufacturer:: COAX Connectors

Technical data sheets

BNC jack to jack adaptor data sheet

Legislation and Compliance

COO (Country of Origin):: TW

Product Details

BNC Jack to BNC Jack Adapters

From Coax Connectors, a series of 75 Ω BNC jack to jack adapters. The BNC connectors feature a simple bayonet coupling which requires only a quarter turn to connect and disconnect. The coaxial adapters have nickel plated brass bodies and gold plated centre contacts. These RF adapters are ideally suited to the broadcast market and meet SMPTE 292M and 424M standards.
Part number 916-0665 Straight jack to jack adapter
Part number 916-0678 Bulkhead jack to jack adapter
Part number 916-0671 Insulated jack to jack adapter
Part number 916-0681 Push Fit jack to jack adapter

Coax Connector Series Adaptors

Specifications

Attribute	Value
Adapter Type	BNC Jack to BNC Jack
Adapter Type A	BNC
Adapter Type B	BNC
Gender A	Female
Gender B	Female
Impedance	75Ω
Body Orientation	Straight
Operating Frequency	4GHz
Contact Plating	Gold
Length	32mm
Body Plating	Nickel
Contact Material	Phosphor Bronze
