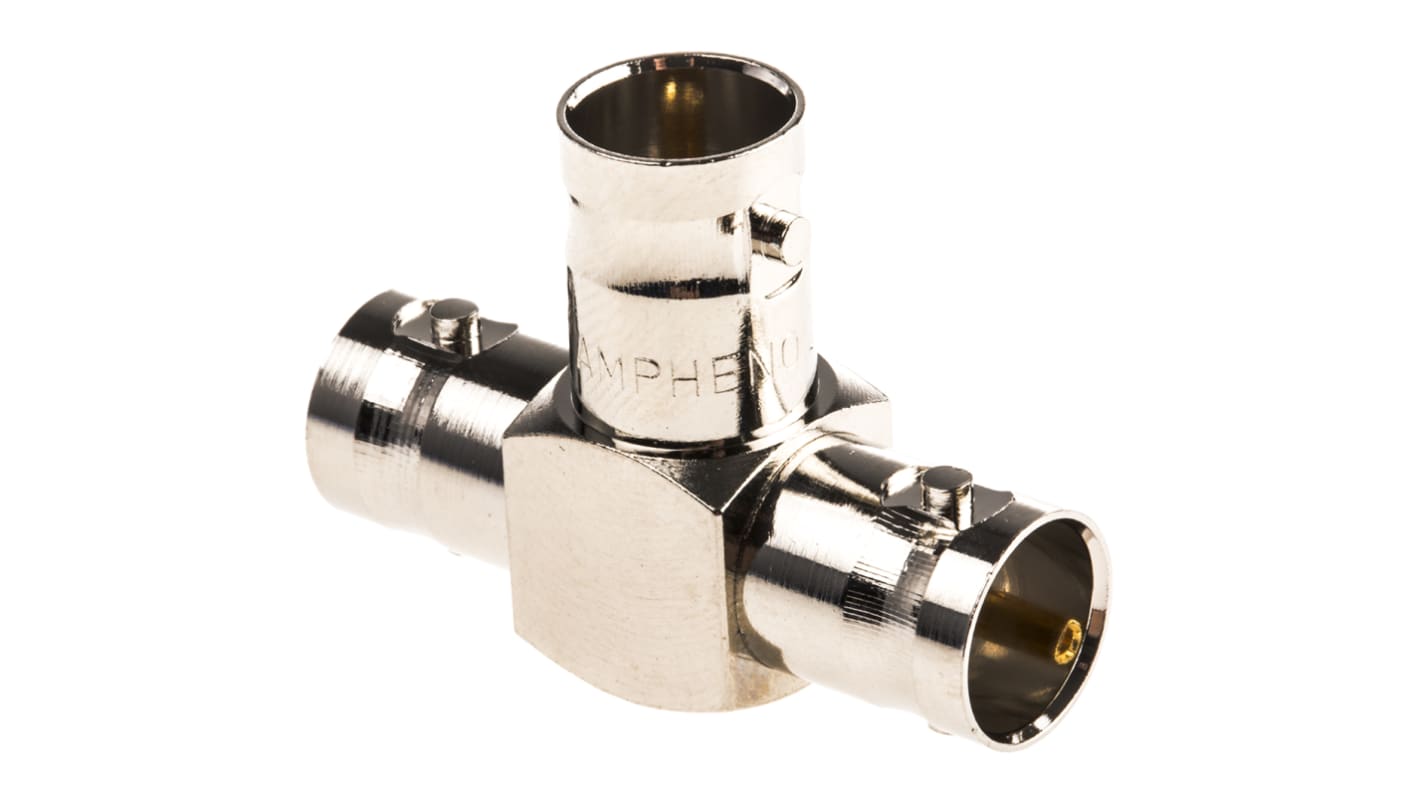

Amphenol RF Tee 75Ω RF Adapter BNC Socket to BNC Socket 1GHz
- RS Stock No.:
- 700-9509
- Mfr. Part No.:
- B8073A1-ND3G-75
- Manufacturer:
- Amphenol RF
87 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR42.98
| Units | Per Unit |
| 1 + | MYR42.98 |
- RS Stock No.:
- 700-9509
- Mfr. Part No.:
- B8073A1-ND3G-75
- Manufacturer:
- Amphenol RF
Technical data sheets
Legislation and Compliance
Product Details
Amphenol RF Coaxial BNC 'T' Adapters
RF coaxial 50 ohm and 75 ohm BNC 'T' adapters with a nickel plated body, delrin insulator and gold plated centre contact.
Stock numbers 700-9499 and 700-9509 have a jack-jack-jack configuration and a brass body.
Stock numbers 700-9502 and 700-9506 have a jack-plug-jack configuration and a die cast zinc body.
Stock numbers 700-9499 and 700-9509 have a jack-jack-jack configuration and a brass body.
Stock numbers 700-9502 and 700-9506 have a jack-plug-jack configuration and a die cast zinc body.
Amphenol BNC Connectors
Specifications
Attribute | Value |
|---|---|
| Adapter Type A | BNC |
| Adapter Type B | BNC |
| Gender A | Female |
| Gender B | Female |
| Impedance | 75Ω |
| Body Orientation | Tee |
| Operating Frequency | 1GHz |
| Contact Plating | Gold |
| Length | 33mm |
| Body Plating | Nickel |
| Contact Material | Beryllium Copper |
