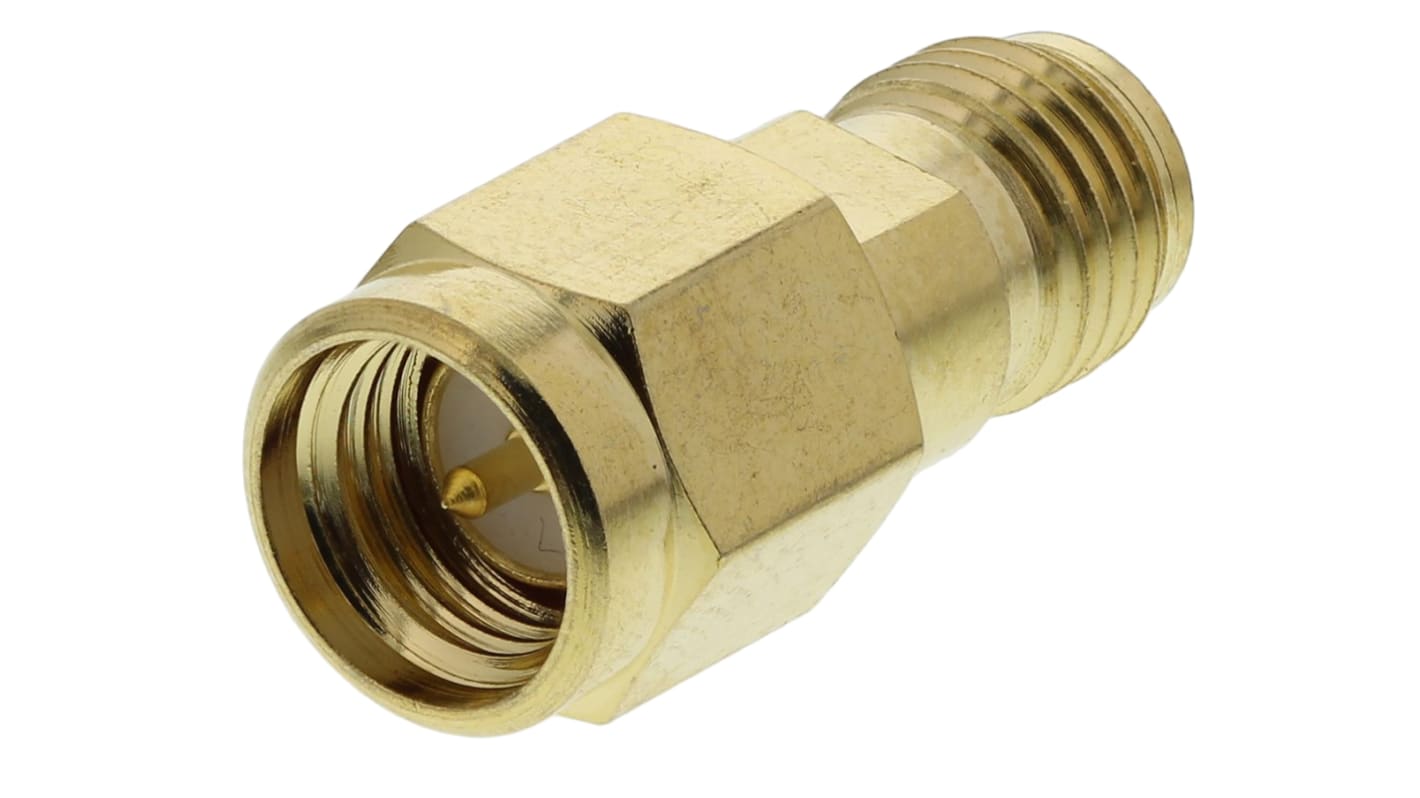

Straight 50Ω RF Adapter SMA Plug to SMA Socket 18GHz

  • RS Stock No. 546-3298
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

Plug/jack adaptor

Gold Plated - RS

SMA Connectors for semi-rigid and flexible cables.,

SMA Solder (Semi-rigid cable)

For use with semi-rigid coaxial cable
Designed to provide high frequency performance at high power ratings in small diameters
Stud contact types are provided in both captive and non-captive forms
Connectors available for the two most commonly used microwave cables, RG402/U and RG405/U

SMA Crimp (Flexible cable)

Used with a variety of flexible RF cables
Suitable for design and development work and where large quantity usage requires repeatability in performance
Available in non-captive contact form for optimum electrical performance
Assembly is acheived by soldering the centre contact and crimping braid and outer sleeve

SMA Clamp (Flexible cable)

Pressure sleeve clamp versions for use with flexible cables
Captive contacts ensure correct positioning and mating
Ideal for field service applications

Specifications
Attribute Value
Adapter Type SMA Plug to SMA Socket
Adapter Type A SMA
Adapter Type B SMA
Gender A Male
Gender B Female
Impedance 50Ω
Body Orientation Straight
Operating Frequency 18GHz
Length 18.2±0.5mm
Body Plating Gold
Contact Material Beryllium Copper
421 In Global stock for delivery within 4 - 6 working days
Price Each
Was MYR25.21
MYR 24.95
units
Per unit
1 - 14
MYR24.95
15 - 49
MYR23.90
50 - 99
MYR22.29
100 - 249
MYR20.56
250 +
MYR19.00
