Select all	Attribute	Value
	Brand	Fluke
	Absolute Maximum DC Current Measurement	100mA dc
	Absolute Maximum DC Voltage Measurement	30V dc
	Model Number	773
	DC Current Measurement Resolution	10µA
	Best DC Current Accuracy	±1% + 5 Digits
	Clamp Meter Type	DC Current Clamp Meter
	Jaw Capacity Busbars	4.5mm
	Functions Measured	DC Voltage
	Best DC Voltage Accuracy	0.2% + 2 Digits
	Maximum Operating Temperature	+50°C
	Length	248mm
	DC Voltage Measurement Resolution	10mV
	DC Current Measurement Range	0 → 100 mA dc
	Power Source	Battery
	Width	76mm
	Battery Type	AA
	Dimensions	248 x 76 x 41mm
	Display Type	LCD
	Maximum Conductor Size	4.5mm
	Minimum Operating Temperature	-10°C
	Weight	420g
	Battery Life	12 h
	Height	41mm

	Select all
	Brand Fluke
	Absolute Maximum DC Current Measurement 100mA dc
	Absolute Maximum DC Voltage Measurement 30V dc
	Model Number 773
	DC Current Measurement Resolution 10µA
	Best DC Current Accuracy ±1% + 5 Digits
	Clamp Meter Type DC Current Clamp Meter
	Jaw Capacity Busbars 4.5mm
	Functions Measured DC Voltage
	Best DC Voltage Accuracy 0.2% + 2 Digits
	Maximum Operating Temperature +50°C
	Length 248mm
	DC Voltage Measurement Resolution 10mV
	DC Current Measurement Range 0 → 100 mA dc
	Power Source Battery
	Width 76mm
	Battery Type AA
	Dimensions 248 x 76 x 41mm
	Display Type LCD
	Maximum Conductor Size 4.5mm
	Minimum Operating Temperature -10°C
	Weight 420g
	Battery Life 12 h
	Height 41mm

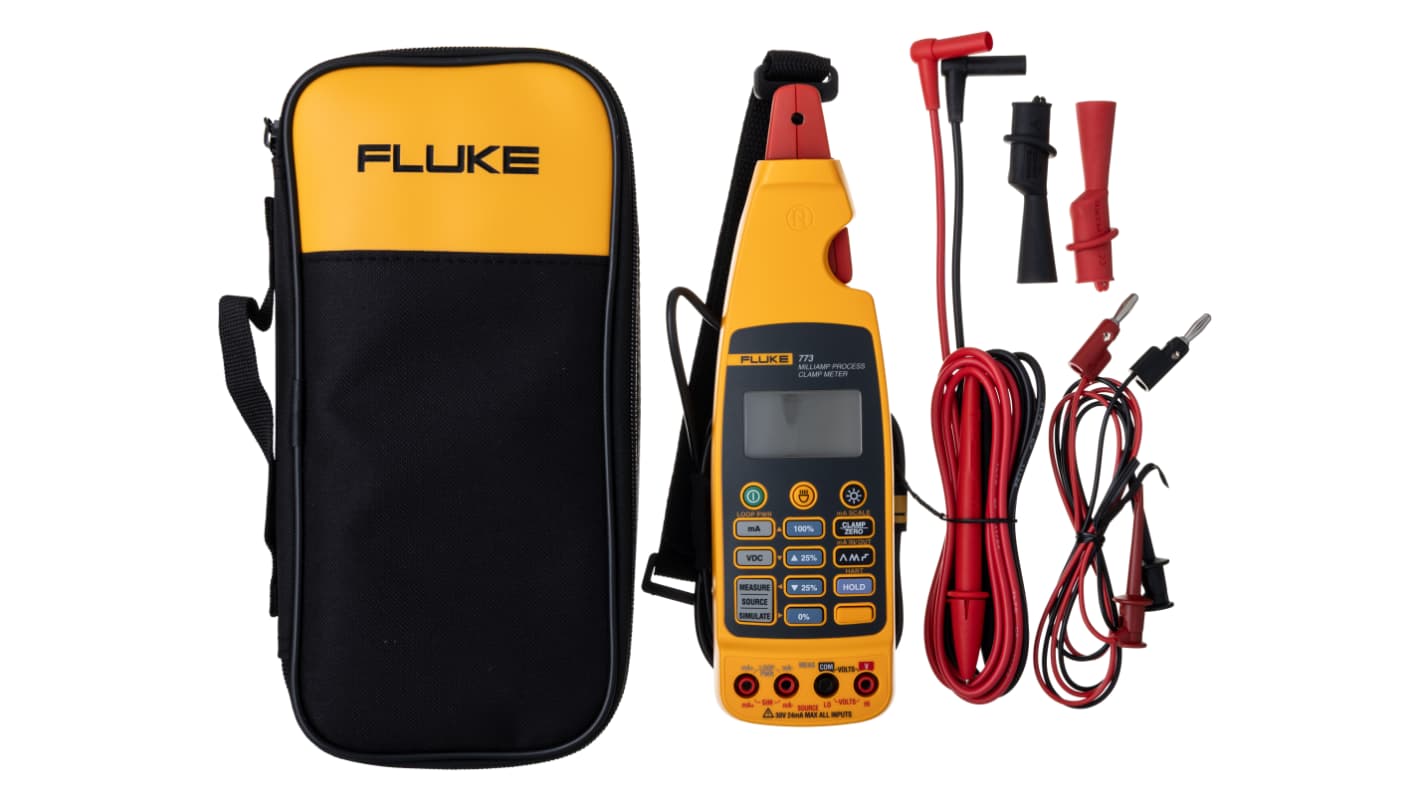

Fluke 773 Clamp Meter, 100mA dc

FREE delivery for orders over MYR500.00

Alternatives

FLUKE 773 Milliamp Process Clamp Meter, 0 to 30V DC Voltage Measurement Range, 12-Hour Battery Life

Features and Benefits

Applications

How much does this clamp meter weigh?
