Schneider Electric 100VA 1 Output Chassis Mounting Transformer, 24V ac
- RS Stock No.:
- 608-6426
- Mfr. Part No.:
- ABL6TS10B
- Manufacturer:
- Schneider Electric
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
MYR426.77
- RS Stock No.:
- 608-6426
- Mfr. Part No.:
- ABL6TS10B
- Manufacturer:
- Schneider Electric
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Primary Voltage Rating | 230 → 400V | |
| Secondary Voltage Rating | 24V ac | |
| Power Rating | 100VA | |
| Number of Outputs | 1 | |
| Mounting Type | Chassis | |
| Length | 85mm | |
| Width | 85mm | |
| Depth | 94mm | |
| Dimensions | 86 x 85 x 94mm | |
| Weight | 2kg | |
| Minimum Operating Frequency | 47Hz | |
| Maximum Operating Frequency | 63Hz | |
| Maximum Temperature | +50°C | |
| Minimum Temperature | -20°C | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Primary Voltage Rating 230 → 400V | ||
Secondary Voltage Rating 24V ac | ||
Power Rating 100VA | ||
Number of Outputs 1 | ||
Mounting Type Chassis | ||
Length 85mm | ||
Width 85mm | ||
Depth 94mm | ||
Dimensions 86 x 85 x 94mm | ||
Weight 2kg | ||
Minimum Operating Frequency 47Hz | ||
Maximum Operating Frequency 63Hz | ||
Maximum Temperature +50°C | ||
Minimum Temperature -20°C | ||
- COO (Country of Origin):
- CZ

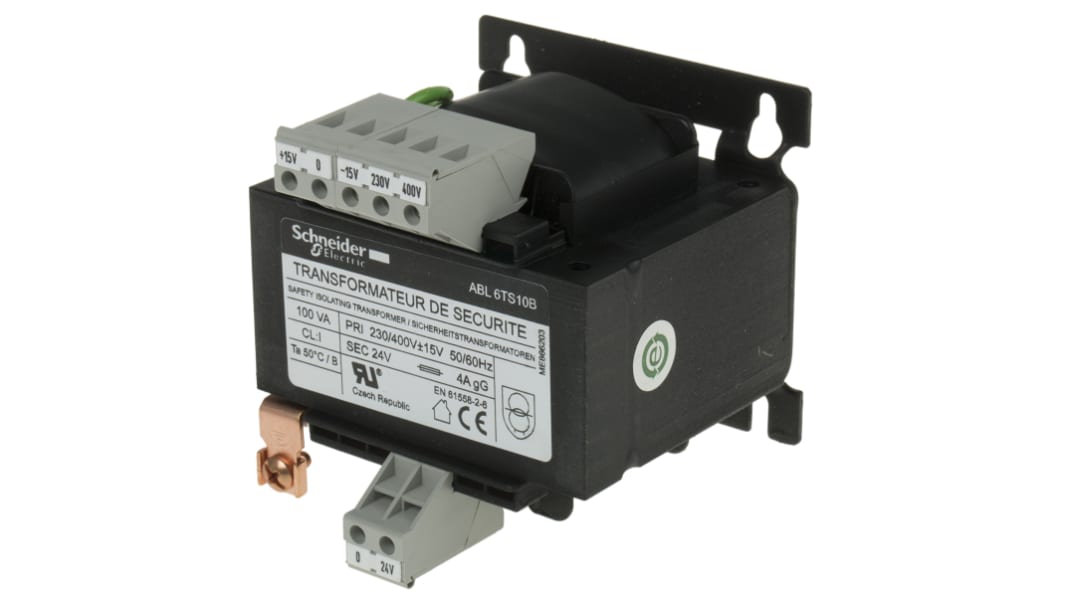

Schneider Electric Panel Mount Voltage Transformer, 230V AC / 400V AC Primary Voltage - ABL6TS10B
This voltage transformer from Schneider Electric converts an input AC (alternating current) of up to 400V (volts) to a 24V output current. It's a single-phase safety and isolation transformer that features two output terminals and six input terminals, offering ideal capacity for a range of current monitoring and safety applications. The transformer includes external output protection against overload, short circuits and overvoltage to ensure safe and reliable operation. Thanks to the unit's compact dimensions of 85 (L) x 94 (W) x 86mm (D), it won't take up much room on your control panel.
Features & Benefits
• Light weight of 2.1kg to minimise strain on your setup
• Minimum operating frequency of 47Hz (Hertz) and maximum frequency of 63Hz for versatile use
• Power rating of 100VA (volt-amperes) for heavy-duty capacity
• Minimum operating frequency of 47Hz (Hertz) and maximum frequency of 63Hz for versatile use
• Power rating of 100VA (volt-amperes) for heavy-duty capacity
Applications
• Automotive manufacturing
• Food processing and bottling
• Power generation
• Food processing and bottling
• Power generation
Will this transformer operate in below-freezing temperatures?
Yes, this transformer operates effectively in dry conditions where temperatures can reach as low as -20°C or as high as +50°C, offering a wide range of potential industrial applications.
