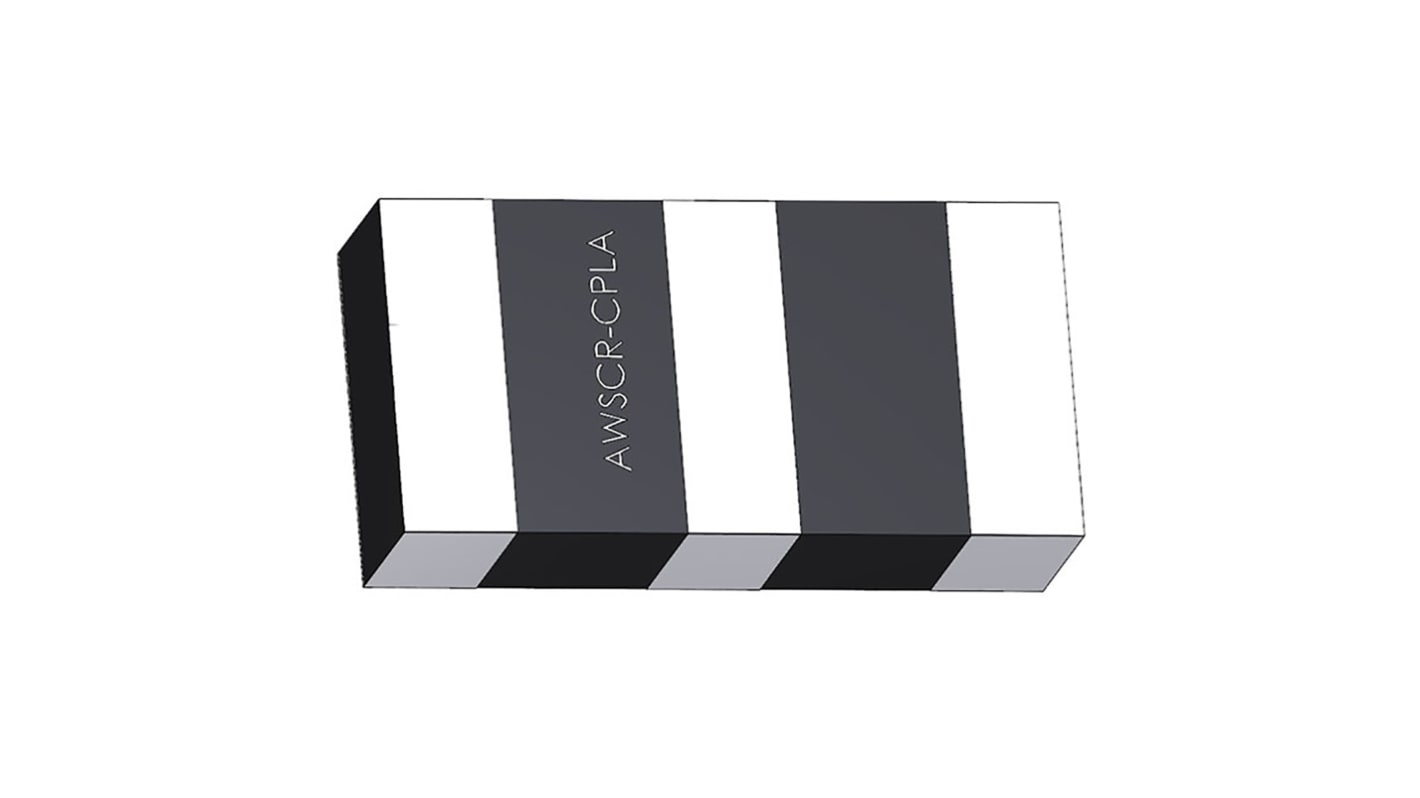

AWSCR-3.68CPLA-C33-T4, Ceramic Resonator, 3.68MHz 33pF, 3-Pin, 6 x 3 x 1.5mm
- RS Stock No.:
- 188-6500
- Mfr. Part No.:
- AWSCR-3.68CPLA-C33-T4
- Manufacturer:
- Abracon
4000 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (On a Reel of 4000)
MYR1.106
| Units | Per Unit | Per Reel* |
| 4000 - 4000 | MYR1.106 | MYR4,424.00 |
| 8000 - 12000 | MYR1.082 | MYR4,328.00 |
| 16000 + | MYR1.062 | MYR4,248.00 |
| *price indicative | ||
- RS Stock No.:
- 188-6500
- Mfr. Part No.:
- AWSCR-3.68CPLA-C33-T4
- Manufacturer:
- Abracon
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Industry standard footprint
Low resonance impedance
Built-in capacitance options
Wide operating temperatures in extended industry range
Applications
Metering systems
Remote control
Microprocessor
Industrial control
Electric appliances
Low resonance impedance
Built-in capacitance options
Wide operating temperatures in extended industry range
Applications
Metering systems
Remote control
Microprocessor
Industrial control
Electric appliances
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Resonance Frequency | 3.68MHz |
| Frequency Tolerance | ±0.5% |
| Load Capacitance | 33pF |
| Resonance Resistance | 30Ω |
| Frequency Ageing | ±0.1% |
| Frequency Stability | ±0.3% |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Dimensions | 6 x 3 x 1.5mm |
| Height | 1.5mm |
| Length | 6mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Width | 3mm |
