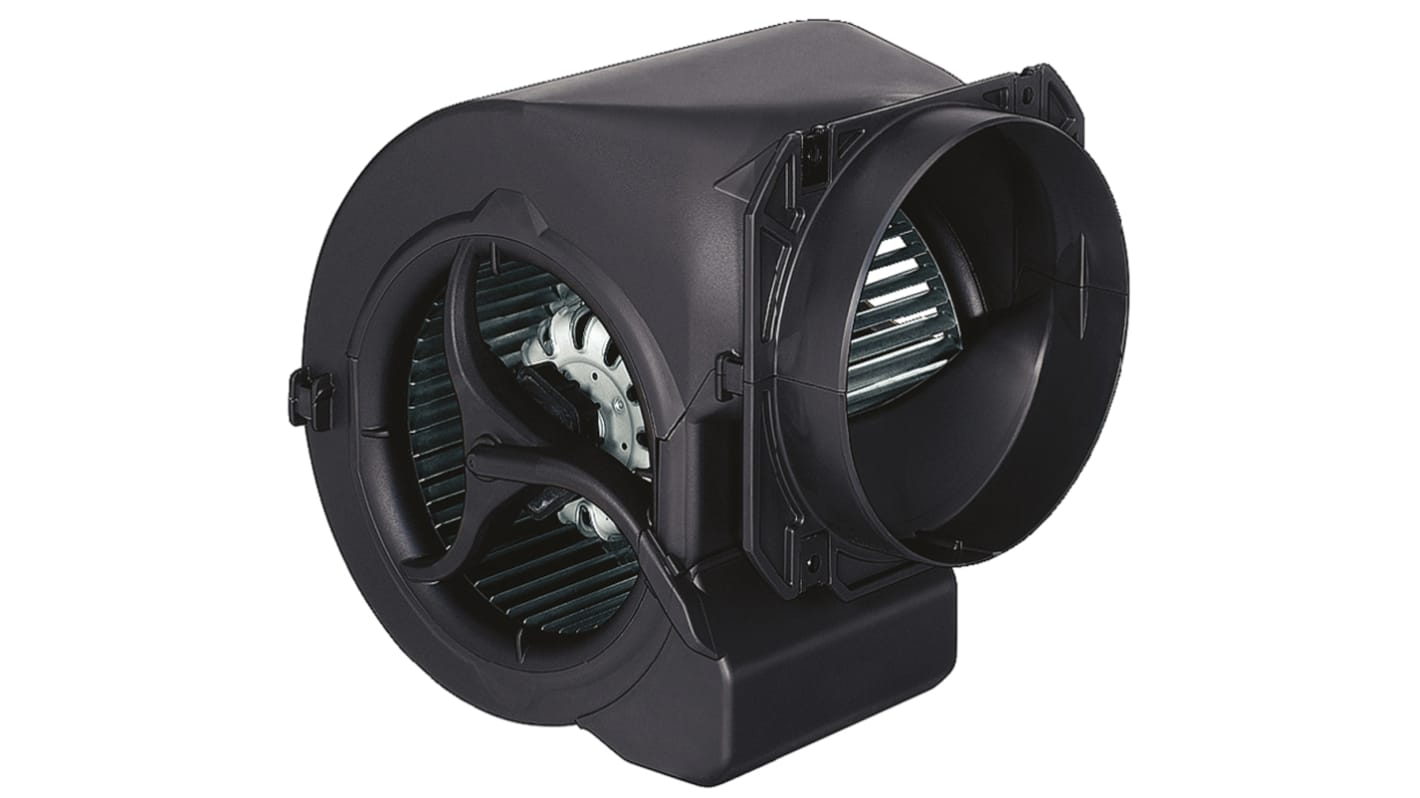

ebm-papst D2E 146 Series Centrifugal Centrifugal Fan, 230V ac, 910 m³/h, AC Operation 216 mm x 220mm x 199 mm
- RS Stock No.:
- 841-4886
- Distrelec Article No.:
- 304-01-739
- Mfr. Part No.:
- D2E146-HT59-02
- Manufacturer:
- ebm-papst
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
MYR1,057.22
FREE delivery for orders over RM 150.00
In Stock
- 32 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | MYR1,057.22 |
| 5 - 9 | MYR1,025.50 |
| 10 - 19 | MYR994.73 |
| 20 + | MYR964.88 |
*price indicative
- RS Stock No.:
- 841-4886
- Distrelec Article No.:
- 304-01-739
- Mfr. Part No.:
- D2E146-HT59-02
- Manufacturer:
- ebm-papst
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ebm-papst | |
| Product Type | Centrifugal Fan | |
| Supply Voltage | 230V ac | |
| Blower Type | Centrifugal | |
| AC or DC Operation | AC | |
| Air Flow | 910m³/h | |
| Series | D2E 146 | |
| Width | 220mm | |
| Terminal Type | Box | |
| Fan Speed | 1600rpm | |
| Bearing Type | Ball | |
| Standards/Approvals | EN, RoHS, CE, VDE, ISO | |
| Height | 216mm | |
| Depth | 199mm | |
| Maximum Current | 1.5A | |
| Static Pressure | 379Pa | |
| Commutation Type | Electronic | |
| IP Rating | IP20 | |
| Mounting Hole Diameter | 138 mm | |
| Select all | ||
|---|---|---|
Brand ebm-papst | ||
Product Type Centrifugal Fan | ||
Supply Voltage 230V ac | ||
Blower Type Centrifugal | ||
AC or DC Operation AC | ||
Air Flow 910m³/h | ||
Series D2E 146 | ||
Width 220mm | ||
Terminal Type Box | ||
Fan Speed 1600rpm | ||
Bearing Type Ball | ||
Standards/Approvals EN, RoHS, CE, VDE, ISO | ||
Height 216mm | ||
Depth 199mm | ||
Maximum Current 1.5A | ||
Static Pressure 379Pa | ||
Commutation Type Electronic | ||
IP Rating IP20 | ||
Mounting Hole Diameter 138 mm | ||
- COO (Country of Origin):
- DE
ebm-papst Centrifugal Blower
The ebm-papst centrifugal dual inlet, high-performance fan motor blower has an airflow of 910m³/h and a supply voltage rating of 230VAC. This is integrated within the impeller that reduces installation dimensions. It is 180mm long, 216mm wide and 199mm depth. It also features of forwarding curved blades are an ideal solution to a wide range of applications and are ideally suited for intake suction use. Additionally, this centrifugal fan and blower, specifically those used for intake suction using backwards curved blades, do not require a scroll housing increasing ease of use and versatility.
Features and Benefits
Impeller material is made from sheet steel and coated in black
Direction of rotation is clockwise, seen on rotor
Insulation class "F"
Mounting position of shaft is horizontal or rotor on bottom
Maintenance-free ball bearings
Motor protection TOP wired internally
Certifications
IP20 rated
EN 60335-2-31
CE certified
VDE approved
