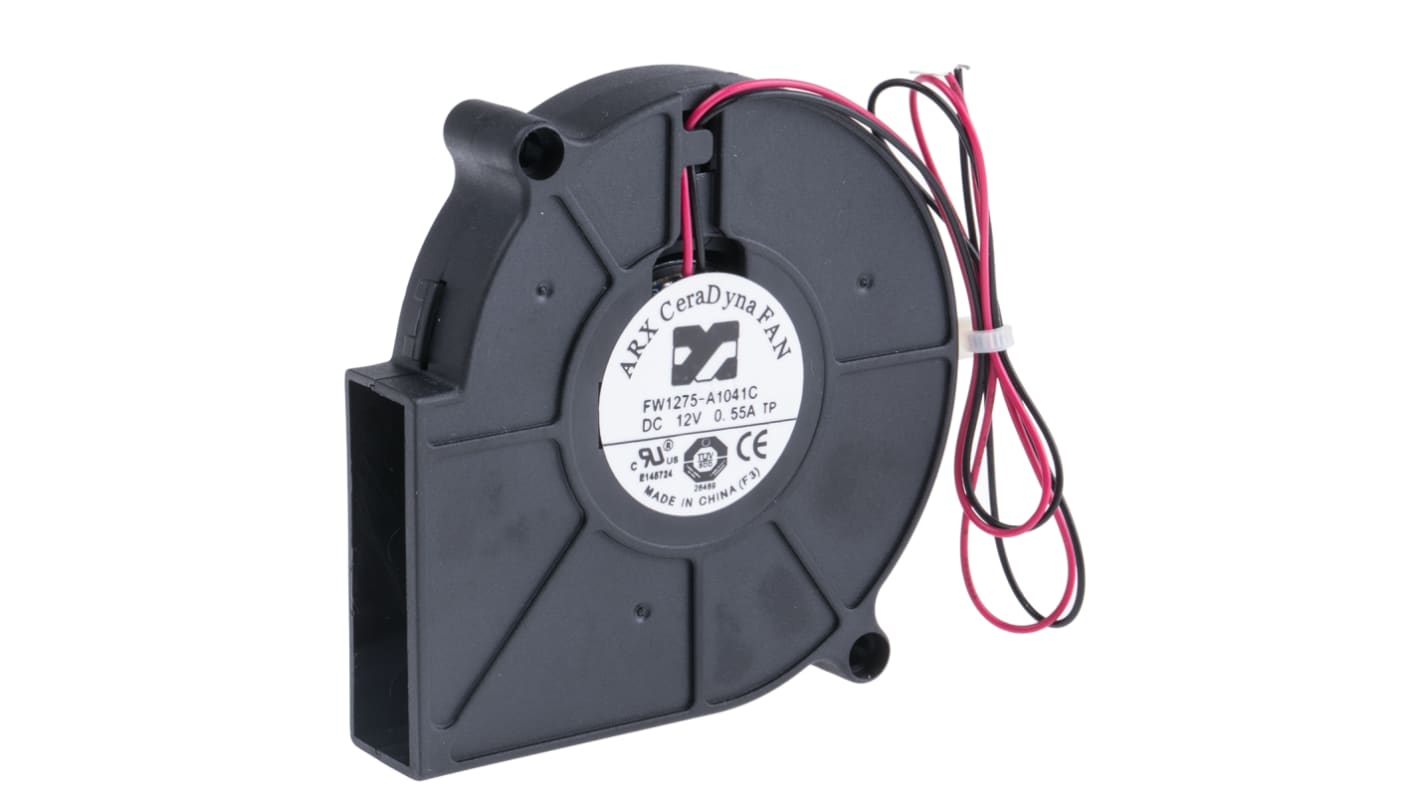

ARX CeraDyna Series Blower Centrifugal Fan, 12V dc, 16.58 m³/h, DC Operation 75 mm x 15mm x 15 mm
- RS Stock No.:
- 787-8964
- Mfr. Part No.:
- FW1275-A1041C2AL
- Manufacturer:
- ARX
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
MYR84.19
FREE delivery for orders over RM 150.00
In Stock
- 609 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | MYR84.19 |
| 5 - 11 | MYR82.51 |
| 12 - 24 | MYR80.87 |
| 25 - 49 | MYR79.25 |
| 50 + | MYR77.67 |
*price indicative
- RS Stock No.:
- 787-8964
- Mfr. Part No.:
- FW1275-A1041C2AL
- Manufacturer:
- ARX
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ARX | |
| Supply Voltage | 12V dc | |
| Product Type | Centrifugal Fan | |
| Blower Type | Blower | |
| AC or DC Operation | DC | |
| Air Flow | 16.58m³/h | |
| Series | CeraDyna | |
| Width | 15mm | |
| Terminal Type | Wire | |
| Fan Speed | 4500rpm | |
| Sensor Output Type | PWM | |
| Noise Level | 51.3dBA | |
| Bearing Type | Sleeve | |
| Height | 75mm | |
| Depth | 15mm | |
| Standards/Approvals | CE, cULus, ISO, CNS, UL, RoHS, IEC | |
| Static Pressure | 1.09in/H2O | |
| Maximum Current | 550mA | |
| IP Rating | IP20 | |
| Commutation Type | Electronic | |
| Mounting Hole Diameter | 4.2 mm | |
| Inlet Diameter | 48mm | |
| Select all | ||
|---|---|---|
Brand ARX | ||
Supply Voltage 12V dc | ||
Product Type Centrifugal Fan | ||
Blower Type Blower | ||
AC or DC Operation DC | ||
Air Flow 16.58m³/h | ||
Series CeraDyna | ||
Width 15mm | ||
Terminal Type Wire | ||
Fan Speed 4500rpm | ||
Sensor Output Type PWM | ||
Noise Level 51.3dBA | ||
Bearing Type Sleeve | ||
Height 75mm | ||
Depth 15mm | ||
Standards/Approvals CE, cULus, ISO, CNS, UL, RoHS, IEC | ||
Static Pressure 1.09in/H2O | ||
Maximum Current 550mA | ||
IP Rating IP20 | ||
Commutation Type Electronic | ||
Mounting Hole Diameter 4.2 mm | ||
Inlet Diameter 48mm | ||
- COO (Country of Origin):
- CN
ARX Ceramic Blower
The ARX 12VDC ceramic bearing blower is a high tech device constructed using a toughened ceramic material. This is mainly to provide a superior reduction of characteristics in both wear and friction. This blower is quiet and has a long service life. This device will outlast ball bearing blowers at a high speed. Ceramic bearing type provides improved performance. It is resistant to heat and humidity. This system does not use oil as a lubricant for its operation.
Features and Benefits
Self-polishing surface
Resistant to heat and humidity
Low friction
Fan speed is 4500rpm
Air flow is 16.58m³/hour
Static pressure of 1.09in/H2O
Life expectancy of 3,00,000 hours
