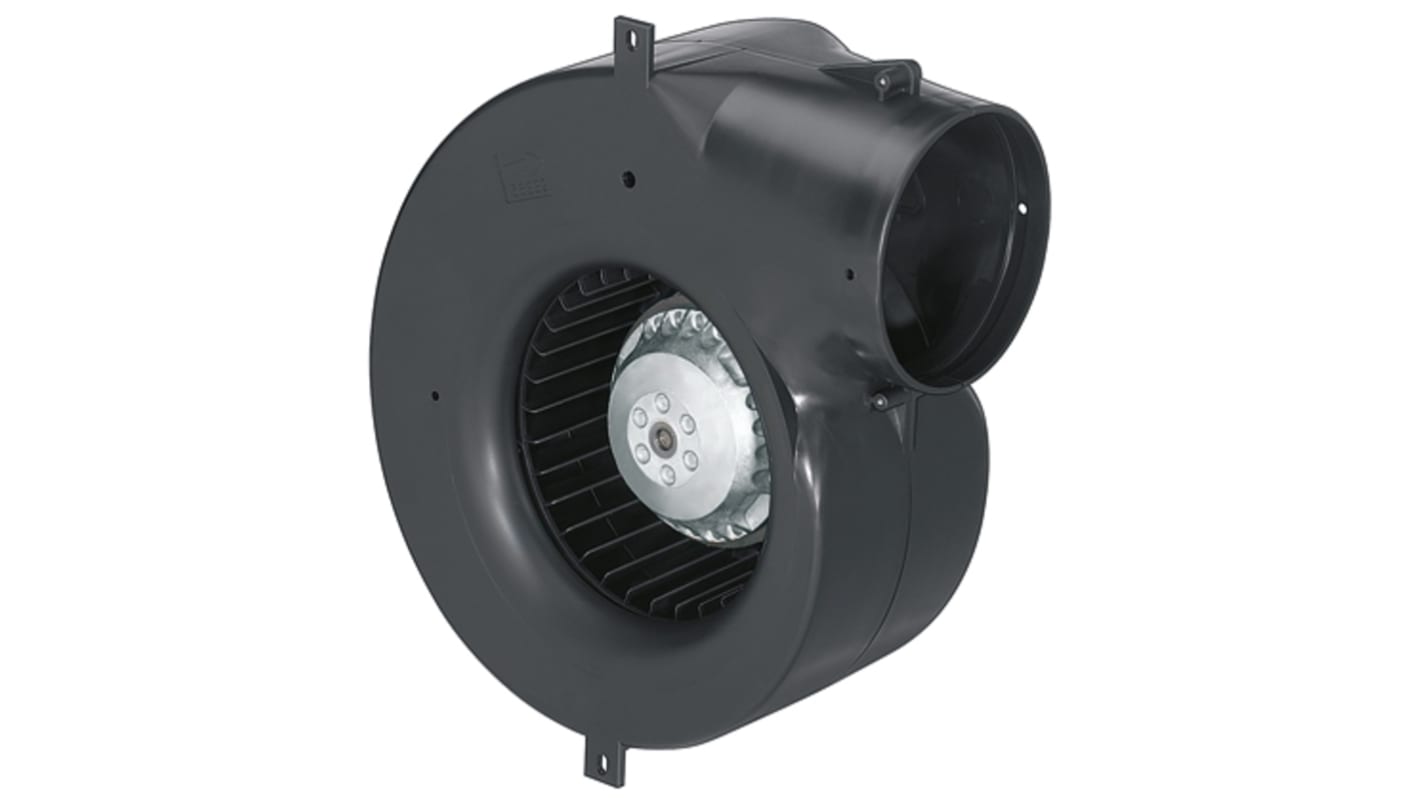

ebm-papst G2E 140 Series Centrifugal Centrifugal Fan, 230V ac, 370 m³/h, AC Operation 248 mm x 237mm x 100 mm
- RS Stock No.:
- 498-8617
- Distrelec Article No.:
- 303-76-253
- Mfr. Part No.:
- G2E140-NS38-01
- Manufacturer:
- ebm-papst
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
MYR900.35
FREE delivery for orders over RM 150.00
In Stock
- 37 unit(s) ready to ship from another location
- Plus 10 unit(s) shipping from 11 September 2026
- Plus 10 unit(s) shipping from 09 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | MYR900.35 |
| 5 - 9 | MYR882.35 |
| 10 - 19 | MYR864.68 |
| 20 + | MYR847.41 |
*price indicative
- RS Stock No.:
- 498-8617
- Distrelec Article No.:
- 303-76-253
- Mfr. Part No.:
- G2E140-NS38-01
- Manufacturer:
- ebm-papst
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ebm-papst | |
| Product Type | Centrifugal Fan | |
| Supply Voltage | 230V ac | |
| Blower Type | Centrifugal | |
| AC or DC Operation | AC | |
| Air Flow | 370m³/h | |
| Series | G2E 140 | |
| Width | 237mm | |
| Fan Speed | 1700rpm | |
| Noise Level | 59dB | |
| Bearing Type | Ball | |
| Depth | 100mm | |
| Height | 248mm | |
| Standards/Approvals | ISO, RoHS, CCC, EAC, CE, EN | |
| Maximum Current | 0.51A | |
| Static Pressure | 300Pa | |
| IP Rating | IP44 | |
| Commutation Type | Electronic | |
| Mounting Hole Diameter | 267 mm | |
| Select all | ||
|---|---|---|
Brand ebm-papst | ||
Product Type Centrifugal Fan | ||
Supply Voltage 230V ac | ||
Blower Type Centrifugal | ||
AC or DC Operation AC | ||
Air Flow 370m³/h | ||
Series G2E 140 | ||
Width 237mm | ||
Fan Speed 1700rpm | ||
Noise Level 59dB | ||
Bearing Type Ball | ||
Depth 100mm | ||
Height 248mm | ||
Standards/Approvals ISO, RoHS, CCC, EAC, CE, EN | ||
Maximum Current 0.51A | ||
Static Pressure 300Pa | ||
IP Rating IP44 | ||
Commutation Type Electronic | ||
Mounting Hole Diameter 267 mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
ebm-papst Centrifugal Fan
The ebm-papst single inlet centrifugal fan has an airflow of 390m³/h (for 50Hz) at a fan speed of 1800rpm and has a supply voltage rating of 230VAC. The external rotor motor is integrated within the impeller, therefore reducing installation dimensions. The scroll housing is open on both sides for added efficiency and a reduction in noise level. The robust and space-saving design makes them versatile and easy to use. It is 248mm long, 237mm wide and 100mm deep. It has featured forwarding curved blades ideal for a wide range of applications.
Features and Benefits
The speed of these centrifugal fans, when equipped with an external rotor, can be adjusted by reducing the supply voltage using a variable speed controller
The impeller is crimped straight onto the rotor
Class B insulation
The casing is made of unpainted injected aluminium
For double inlet models, the casing is made of galvanised steel
Variable speed controllers are also available
Thermal protection by thermocontact and windings
Applications
Central air conditioning units or building ventilation systems
Automobile
Railway
Electronic products
Medical treatment
Household
Ventilation
Air conditioning
Refrigeration system
Certifications
CE certified
CCC certified
EAC certified
IP44 rated
EN 60335-1
Note
Motor capacitor (needed for normal use) not included. please order sepeartely e.g. 1964731
