- RS Stock No.:
- 813-525
- Mfr. Part No.:
- RG90-18/56
- Manufacturer:
- ebm-papst
871 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR325.29
Units | Per Unit |
1 - 9 | MYR325.29 |
10 - 24 | MYR318.44 |
25 - 49 | MYR308.87 |
50 - 99 | MYR301.27 |
100 + | MYR294.69 |
- RS Stock No.:
- 813-525
- Mfr. Part No.:
- RG90-18/56
- Manufacturer:
- ebm-papst
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- CN
Product Details

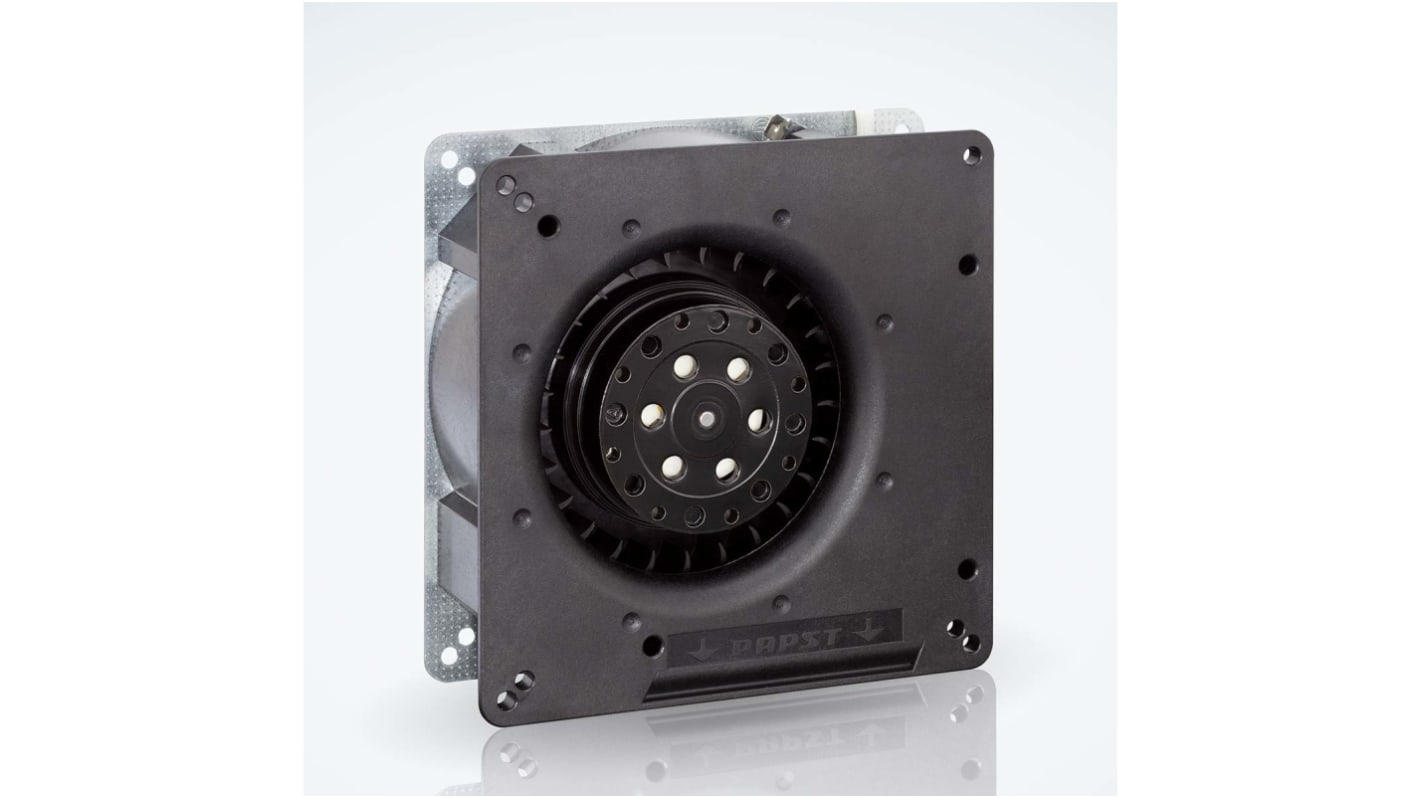

ebm-papst Centrifugal Fan
The ebm-papst 230VDC centrifugal compact fan is provided with a speed signal, ball bearing and wire leaded power connection. The scroll housing is made of fibreglass-reinforced plastic and the fibreglass-reinforced plastic is used for the impeller. The fan has a speed of 2200rpm and provides an axial air intake, centrifugal air exhaust out of the outlet direction of airflow (54m3/h) with single strands 26AWG, TR 64 leads with a forward-curved impeller. This fan is suitable for high air performance with moderate pressure build-up. The flow of air through the fan blades is parallel to the rotation axis.
Features and Benefits
Compact in size
Airflow is at right angles to the intake
High static pressure capabilities
Connections are wire ended
Locked rotor protection
Ball bearing type
High temperature, low power operation
Protection against reverse polarity and blocked rotor
Airflow is at right angles to the intake
High static pressure capabilities
Connections are wire ended
Locked rotor protection
Ball bearing type
High temperature, low power operation
Protection against reverse polarity and blocked rotor
Applications
Central air conditioning units or building ventilation systems
Automobiles
Railways
Electronic products
Medical treatment
Households
Ventilation
Air conditioning
Refrigeration systems
Automobiles
Railways
Electronic products
Medical treatment
Households
Ventilation
Air conditioning
Refrigeration systems
Certifications
UL approved
CSA certified
VDE
approved
CE certified
CSA certified
VDE
approved
CE certified
Approvals
UL; CSA; VDE
Specifications
Attribute | Value |
---|---|
Supply Voltage | 230 V ac |
Blower Type | Centrifugal |
AC or DC Operation | AC |
Air Flow | 54m³/h |
Series | RG 90 N |
Height | 135mm |
Width | 135mm |
Depth | 38mm |
Dimensions | 135 x 135 x 38mm |
Fan Speed | 2200rpm |
Noise Level | 58dB |
Bearing Type | Ball |
Mounting Hole Spacing | 122 x 122mm |
IP Rating | IP20 |
Direction of Curve | Radial |
Horizontal Hole Spacing | 122mm |
Mounting Hole Diameter | 4.3mm |
Termination Type | Lead Wire |
Vertical Hole Spacing | 122mm |
