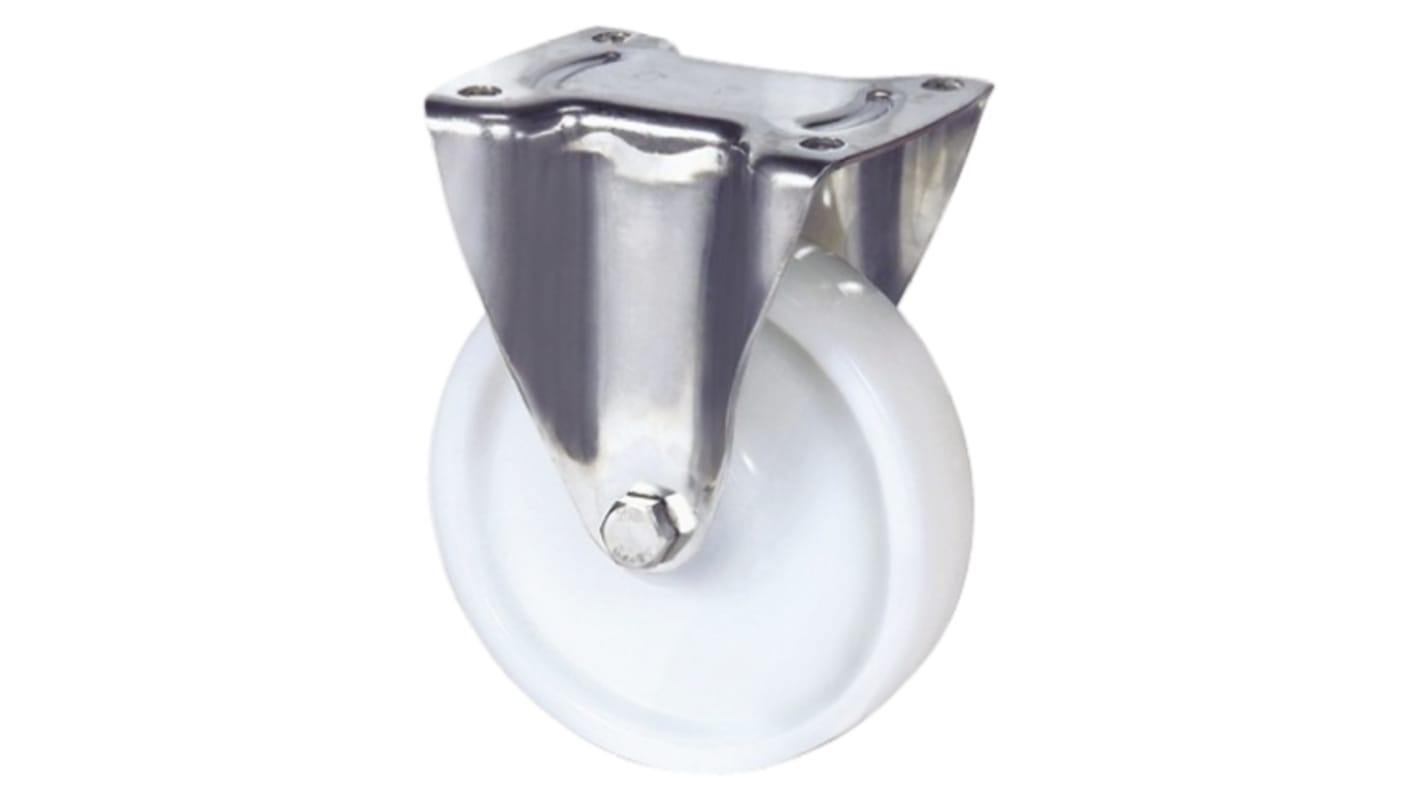

Tente Fixed Castor Wheel, 250kg Load Capacity, 125mm Wheel Diameter

  • RS Stock No. 787-1519
  • Mfr. Part No. 8478UOO125P62
  • Manufacturer Tente
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Nylon Polyamide Wheel, Stainless Steel Fork, Tente

Tente's polyamide castors are suited to a variety of industrial applications. A stainless steel body provides excellent corrosion resistance and a plain bearing helps reduce rolling resistance. These stainless steel, nylon castors are maintenance free and wear resistant.Tente's castors use universal fittings to aid alteration and assembly.

Stainless steel body
Maintenance free
Corrosion resistant
Universal fitting
Plain Bearing
Stainless steel fork material

Standards

EN 12532

Hard Tread - Polyamide / Nylon Wheel

Hard tread wheels are the easiest to push and offer the easiest movement and mobility. Solid Nylon is a floor-friendly alternative to cast iron, which is unaffected by water and has a load capacity approaching that of cast iron. Solid Nylon wheels are the most popular choice as they will not damage solid compacted floors such as cement or tile etc and have good load carrying capacity. Nylon wheels are used widely in food processing areas.

Specifications
Attribute Value
Wheel Diameter 125mm
Load Capacity 250kg
Overall Height 155mm
Wheel Width 40mm
Fixing Plate Dimensions 100 x 85mm
Rotation Fixed
Application Industrial
Tyre Material Polyamide
Includes Brake No
Fixing Centres 80 x 60mm
Weight Class Heavy Duty
Features Corrosion Resistant
Number of Fixing Holes 4
Fixing Hole Size 9mm
Hub Material Polyamide
Hub Bearing Type Ball Bearing
24 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 67.54
units
Per unit
1 - 5
MYR67.54
6 - 11
MYR64.21
12 +
MYR60.81
