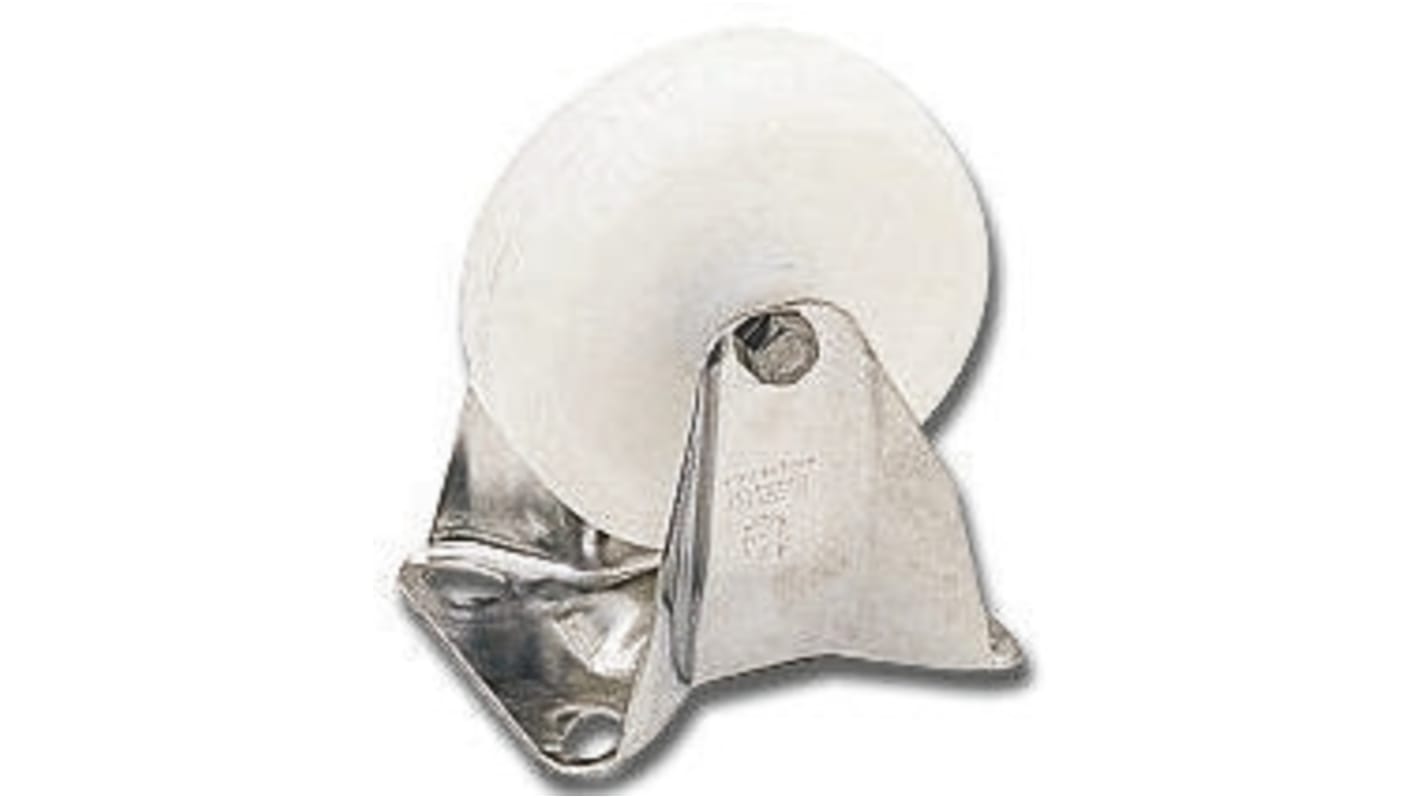

LAG Fixed Castor Wheel, 250kg Load Capacity, 125mm Wheel Diameter

  • RS Stock No. 227-0582
  • Mfr. Part No. 17182
  • Manufacturer LAG
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IT
Product Details

Nylon Polyamide Wheel, Stainless Steel Fork, Medium Duty, Series INOX 20

A range of high quality polyamide castors with minimal rolling resistance. Easy to keep clean and resistant to corrosion, shocks and abrasion.

Plate fixing castor made from hygienic materials
Resistant to corrosion, abrasion & shock
Easy running under heavy loads
Operating Temperature -30°C to +80°C
Wheel series P
Stainless steel fork material

Stainless Steel Castors

Specifications
Attribute Value
Wheel Diameter 125mm
Load Capacity 250kg
Overall Height 160mm
Wheel Width 40mm
Fixing Plate Dimensions 102 x 83mm
Rotation Fixed
Application Industrial
Tyre Material Polyamide
Includes Brake Yes
Fixing Centres 80 x 60mm
Weight Class Heavy Duty
Features Corrosion Resistant, Easy to Clean, Low Rolling Resistance, Shock Absorbing
Number of Fixing Holes 4
Fixing Hole Size 8mm
Hub Material Polyamide
Hub Bearing Type Plain Bore
12 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 131.80
units
Per unit
1 - 5
MYR131.80
6 - 11
MYR125.11
12 +
MYR119.94
