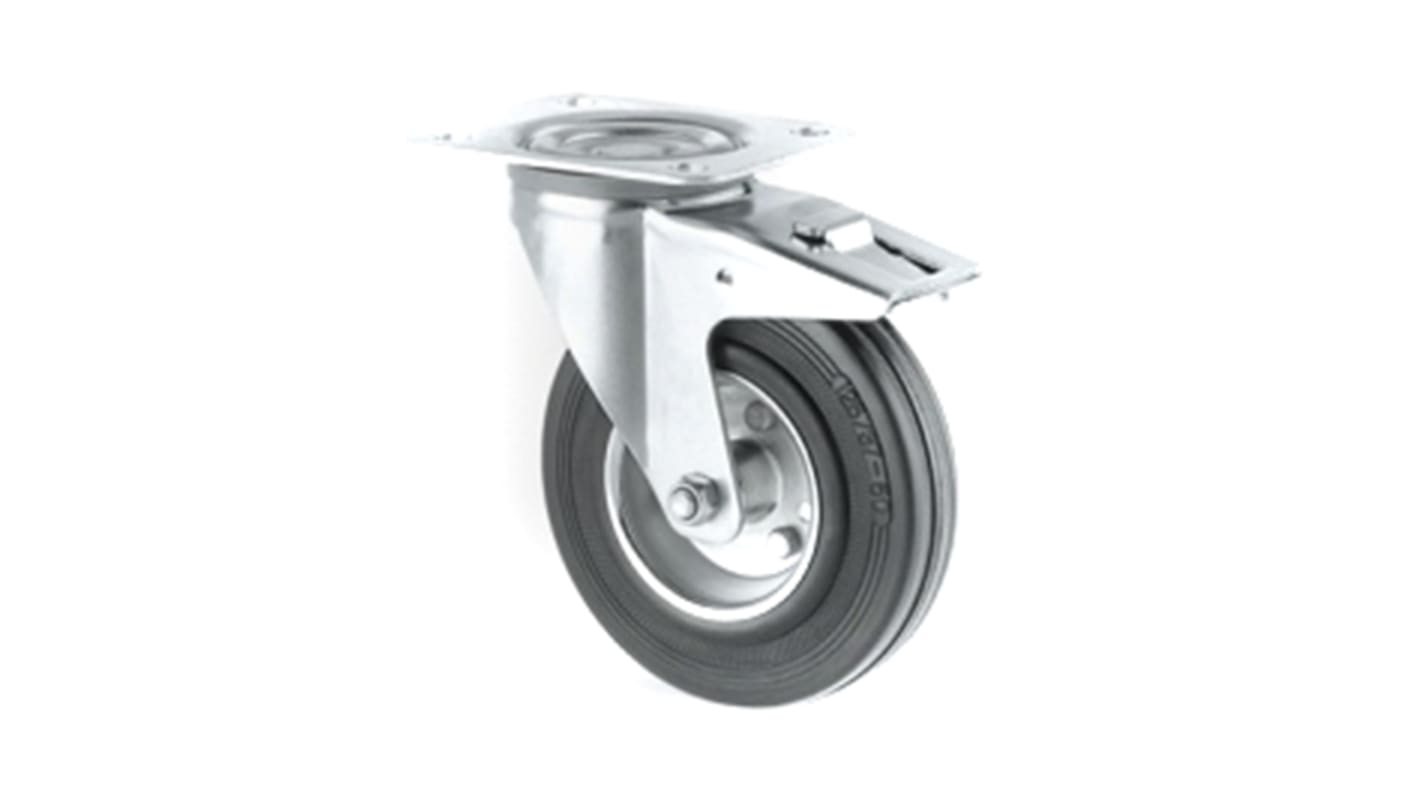

Tente Swivel Castor, 70kg Load Capacity, 100mm Wheel Diameter

  • RS Stock No. 172-1129
  • Mfr. Part No. 3377DVR100P62
  • Manufacturer Tente
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): DE
Product Details

Swivel castor with total lock, tail end of castor, housing made of pressed steel, bright zinc plated, blue passivated, double ball bearing swivel head, wheel axle with nut, plate fitting. Wheel centre made of pressed steel, Tread: solid rubber, black, roller bearing

Specifications
Attribute Value
Wheel Diameter 100mm
Load Capacity 70kg
Overall Height 128mm
Wheel Width 20mm
Fixing Plate Dimensions 105 x 85mm
Rotation Braked Swivel
Application Industrial
Tyre Material Thermoplastic Rubber
Includes Brake Yes
Fixing Centres 80 x 77 x 60mm
Weight Class Heavy Duty
Features Blue Passivated, Bright Zinc Plated, Double Ball Bearing Swivel Head, Dustguard, Housing Made of Pressed Steel, Load Capacity Tested According EN 12532, Wheel Axle with Nut
Number of Fixing Holes 4
Fixing Hole Size 9mm
Hub Bearing Type Ball Bearing, Roller Bearing
Hub Material Steel
10 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 72.30
units
Per unit
1 - 4
MYR72.30
5 - 9
MYR70.09
10 +
MYR68.00
