- RS Stock No.:
- 233-4408
- Mfr. Part No.:
- TLE9561QXXUMA1
- Manufacturer:
- Infineon
2500 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (On a Reel of 2500)
MYR17.608
Units | Per Unit | Per Reel* |
2500 - 2500 | MYR17.608 | MYR44,020.00 |
5000 - 5000 | MYR17.08 | MYR42,700.00 |
7500 + | MYR16.567 | MYR41,417.50 |
*price indicative |
- RS Stock No.:
- 233-4408
- Mfr. Part No.:
- TLE9561QXXUMA1
- Manufacturer:
- Infineon
Technical data sheets
Legislation and Compliance
Product Details

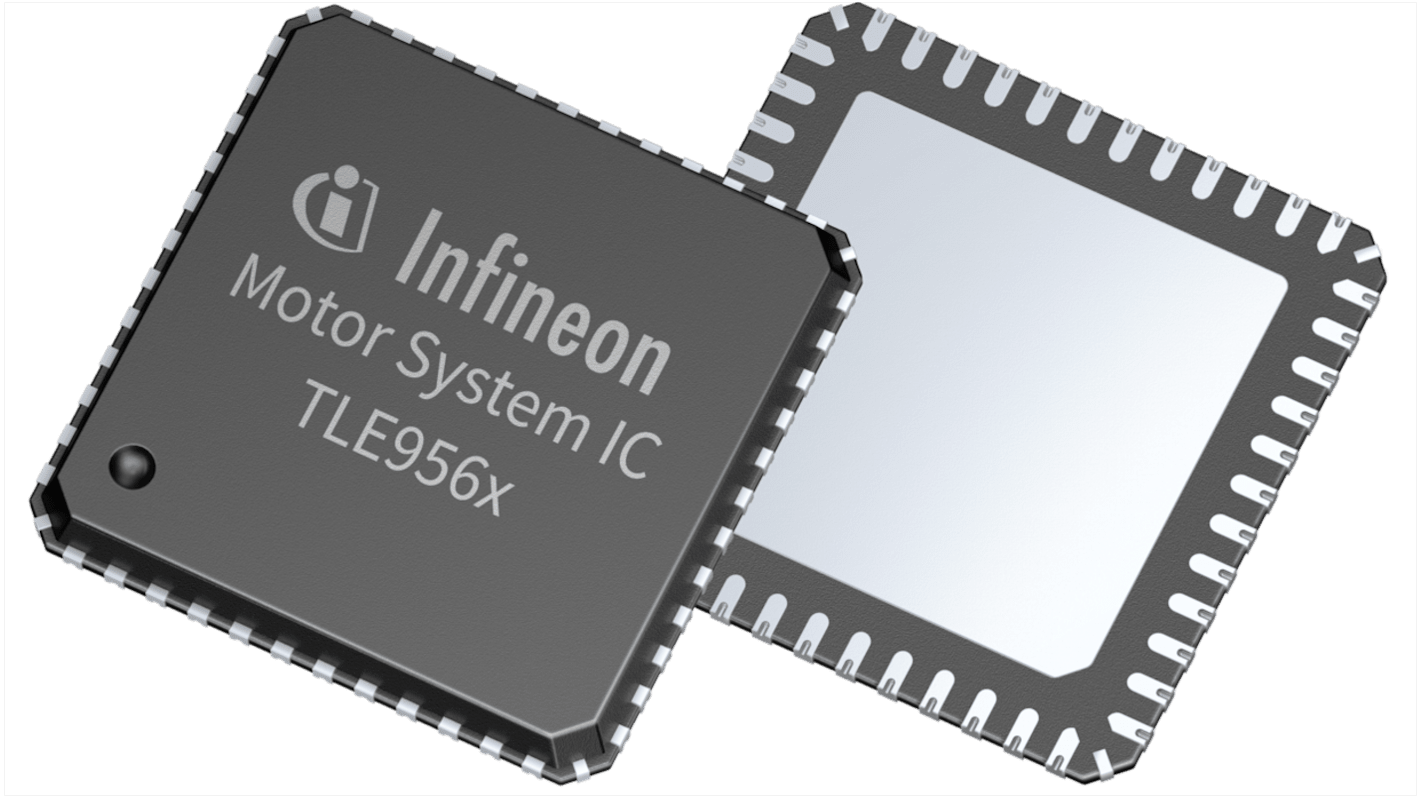

The Infineon TLE9561QX is a multifunctional system IC with integrated power supply, communication interfaces, multiple half-bridges and support features in an exposed pad PG-VQFN-48 power package. The device is designed for various motor control automotive applications. To support these applications, the DC Motor System IC provides the main functions, such as a 5V low-dropout voltage regulator one HS-CAN transceiver supporting CAN FD, four half-bridges for DC motor control, and one 32 bit serial peripheral interface (SPI).
Very low quiescent current consumption in Stop Mode and Sleep Mode
Periodic cyclic sense and cyclic wake in Normal Mode, Stop Mode and Sleep Mode
Reset and interrupt output
Drain-source monitoring and open-load detection
Configurable time-out and window watchdog
Over temperature and short circuit protection features
Periodic cyclic sense and cyclic wake in Normal Mode, Stop Mode and Sleep Mode
Reset and interrupt output
Drain-source monitoring and open-load detection
Configurable time-out and window watchdog
Over temperature and short circuit protection features
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Maximum Data Rate | 5Mbit/s |
Number of Transceivers | 1 |
IC Type | CAN Transceiver IC |
Standard Supported | ISO 11898-2 |
Power Down Mode | High-Speed |
Maximum Supply Current | 250 mA |
Package Type | PG-VQFN-48 |
Pin Count | 48 |
