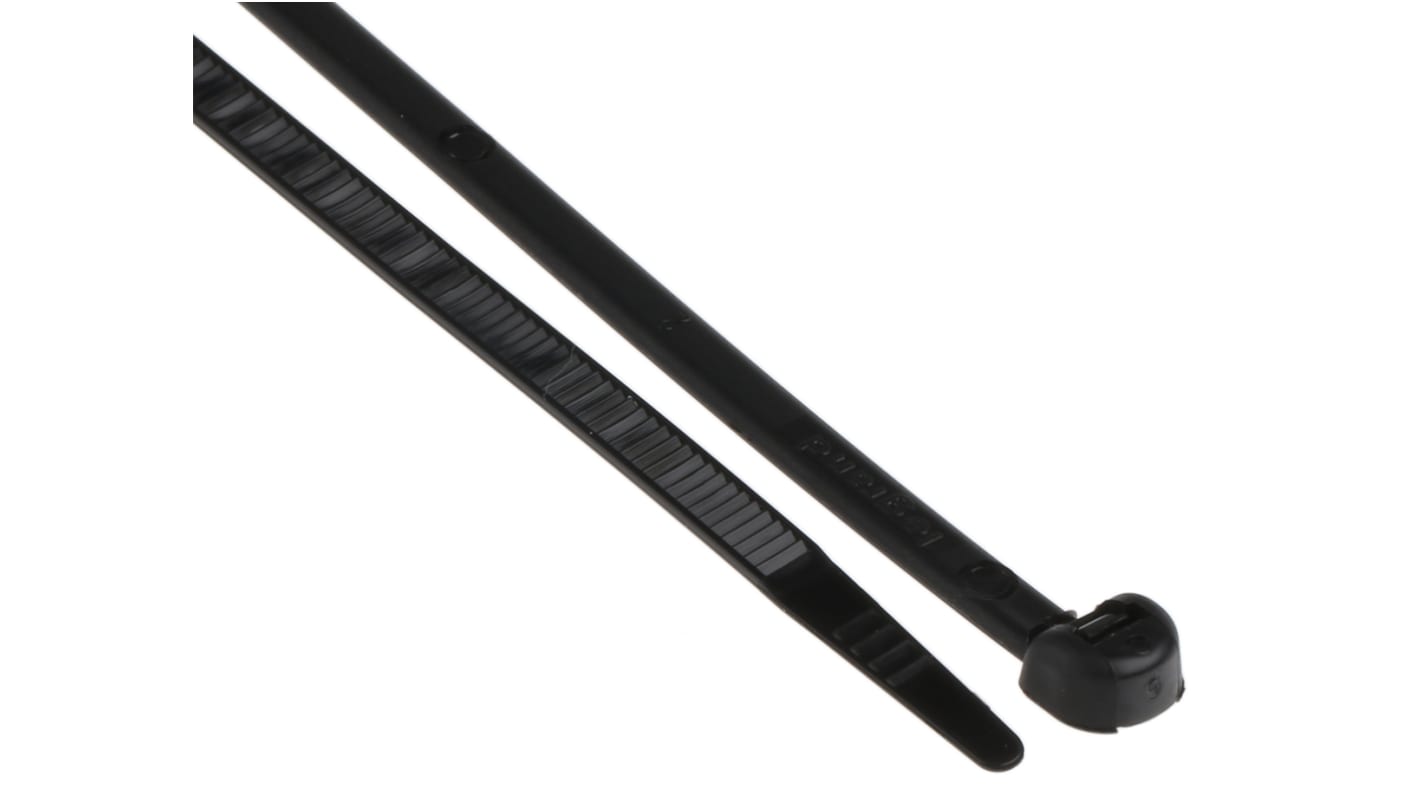

Legrand Black Nylon Cable Tie, 360mm x 4.6 mm, Colring Series

  • RS Stock No. 620-2785
  • Mfr. Part No. 0 320 24
  • Manufacturer Legrand
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

Colring™ equipment ties

Ties made from colourless or black 6/6 polyamide with internal teeth.
Resistance to external agents:
Good resistance to base solutions, oils, greases, petroleum products, chlorinated solvents.
Limited resistance to acids.
Not resistant to phenol.
Humidity absorption: 1.2%.
Corrosiveness of smoke: NF C 20-453 < 5 %.
Halogen-free.
Flame-retardant: UL 94 V 2
Approved to UL 1565.
Conformity to SAE ‒ AS 336 71 (except for items marked (1) in the table below).

Standards

EN 62275 type1 (NFC 68-146), UL 1565, SAE-AS 33671

Specifications
Attribute Value
Length 360 mm
Width 4.6 mm
Colour Black
Material Nylon 66
Quantity 100
UV Resistant Yes
Minimum Operating Temperature 0°C
Maximum Operating Temperature +105°C
Series Colring
Tensile Strength 220N
Maximum Bundle Diameter 102mm
8 Within 4 working day(s) (Global stock)
183 Within 4 working day(s) (Global stock)
Price 1 Box of 100
MYR 220.81
Box(es)
Per Box
Per unit*
1 - 14
MYR220.81
MYR2.208
15 - 49
MYR217.00
MYR2.17
50 +
MYR213.19
MYR2.132
*price indicative
