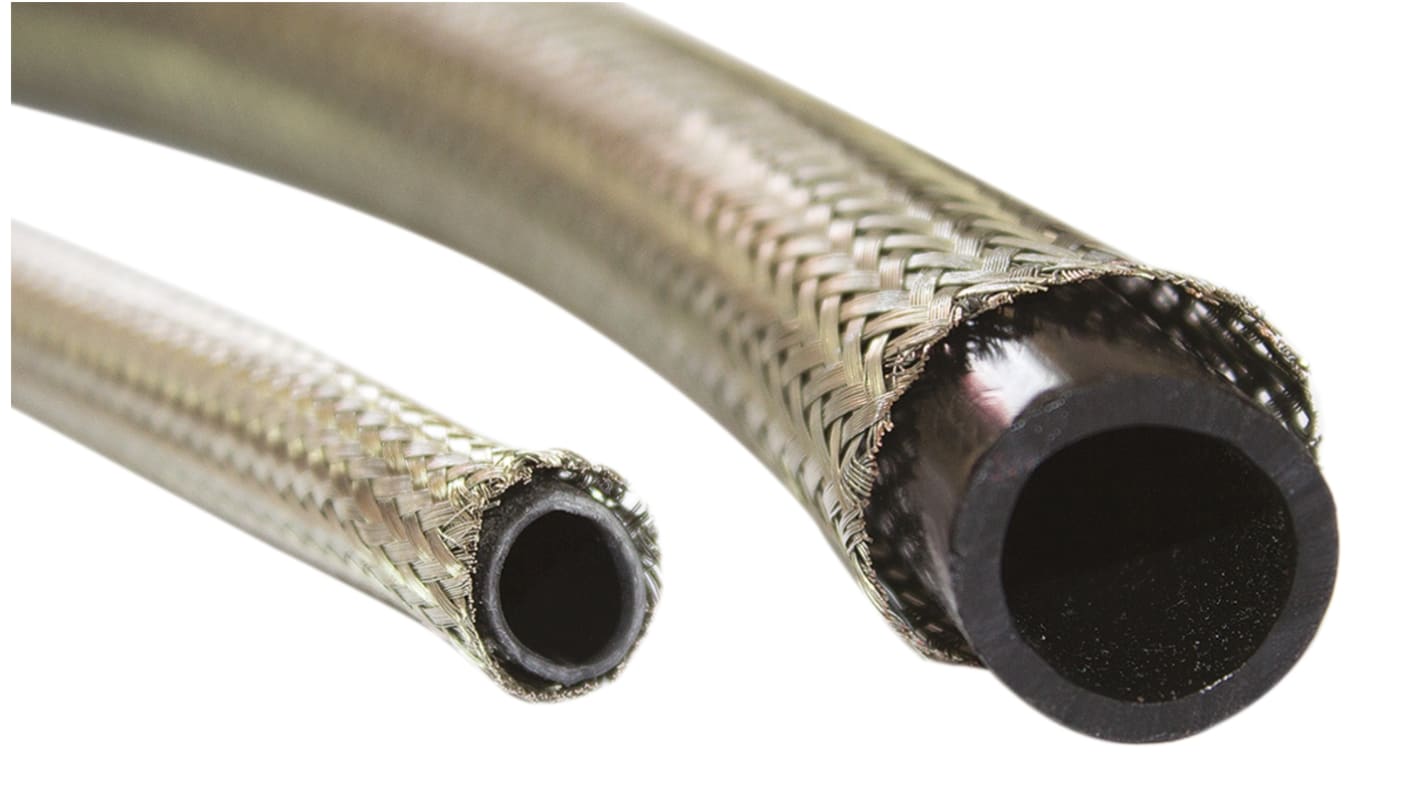

HellermannTyton Braided PVC, Tinned Copper Cable Sleeve, 4mm Diameter, HEGTB540 Series

  • RS Stock No. 837-2432
  • Mfr. Part No. 912-26234 HEGTB540
  • Manufacturer HellermannTyton
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

HellermannTyton Braided Sleeves HEGTB Series

The HellermannTyton HEGTB range of braided sleeving is used for mechaniclal protection and electrical screening.

Braided Sleeves
Easy to remove
A good resistance to automotive chemical atmospheres
Designed for protection and electrical screening

Applications:

Interference suppression
Earth wire
Ground wire
Sheathing of cable bundles
Mechanical protection of cable bundles

Standards

VG 96936-10/type A

Specifications
Attribute Value
Sleeve Diameter 4mm
Material PVC, Tinned Copper
Braided Yes
Maximum Cable Diameter 7.5mm
Minimum Operating Temperature -40°C
Maximum Operating Temperature +155°C
Series HEGTB540
2 In Global stock for delivery within 4 - 6 working days
Price 1 Reel of 10 Metre(s)
MYR 263.93
Reel(s)
Per Reel
Per Metre*
1 - 14
MYR263.93
MYR26.393
15 - 49
MYR257.33
MYR25.733
50 +
MYR253.29
MYR25.329
*price indicative
