HellermannTyton Expandable Braided PET Black Cable Sleeve, 15mm Diameter, 10m Length, Helagaine HLB Series

  • RS Stock No. 302-9127
  • Mfr. Part No. 170-80150 HLB15-PET-BK
  • Manufacturer HellermannTyton
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

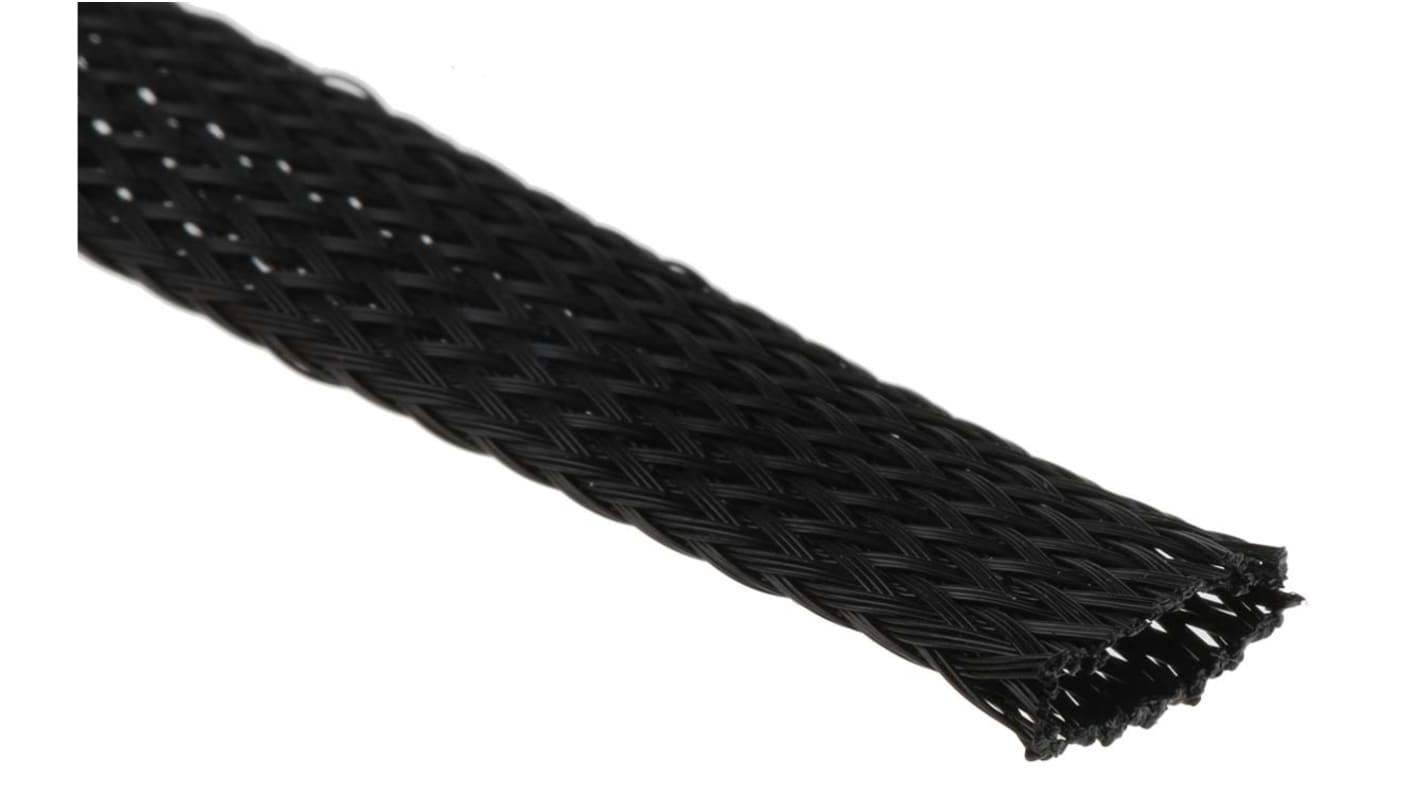

HellermannTyton Cable Sleeve

The HellermannTyton black cable sleeve is an expandable and braided protective cover with sleeve diameter of 15mm and length of 10m. Large differences in diameter, for instance, due to cable jacks and connectors, are easy to handle. It is ideal for both the professional and the home user. It bundles and effectively protects cables and wires, for instance, in HiFi systems and industrial plants providing good resistance to abrasion.

Features and Benefits

Maximum cable diameter is 21mm
Melting point is 250°C
Minimum cable diameter is 5mm
Operating temperature ranging between -50°C and 150°C
Oxygen index is 34%
Expansion rate of 3:1
Extraction of sleeves

Applications

Automation
Automotive
Machine tools
Robotics

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
MIL-STD-810B-METHOD 508
HF approved

Specifications
Attribute Value
Sleeve Diameter 15mm
Colour Black
Material PET
Sleeve Length 10m
Braided Yes
Expandable Yes
Minimum Cable Diameter 5mm
Maximum Cable Diameter 21mm
Minimum Operating Temperature -50°C
Maximum Operating Temperature +150°C
Series Helagaine HLB
Stock check temporarily unavailable - call for stock availability
Price Each
Was MYR14.708
MYR 14.555
units
Per unit
Per Box*
10 - 140
MYR14.555
MYR145.55
150 - 490
MYR14.301
MYR143.01
500 +
MYR13.927
MYR139.27
*price indicative
