HellermannTyton Expandable Braided PET Black Cable Sleeve, 25mm Diameter, 5m Length, Helagaine HEGP06 Series

  • RS Stock No. 187-4701
  • Mfr. Part No. 170-12500 HEGP25-PET-BK (50)
  • Manufacturer HellermannTyton
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

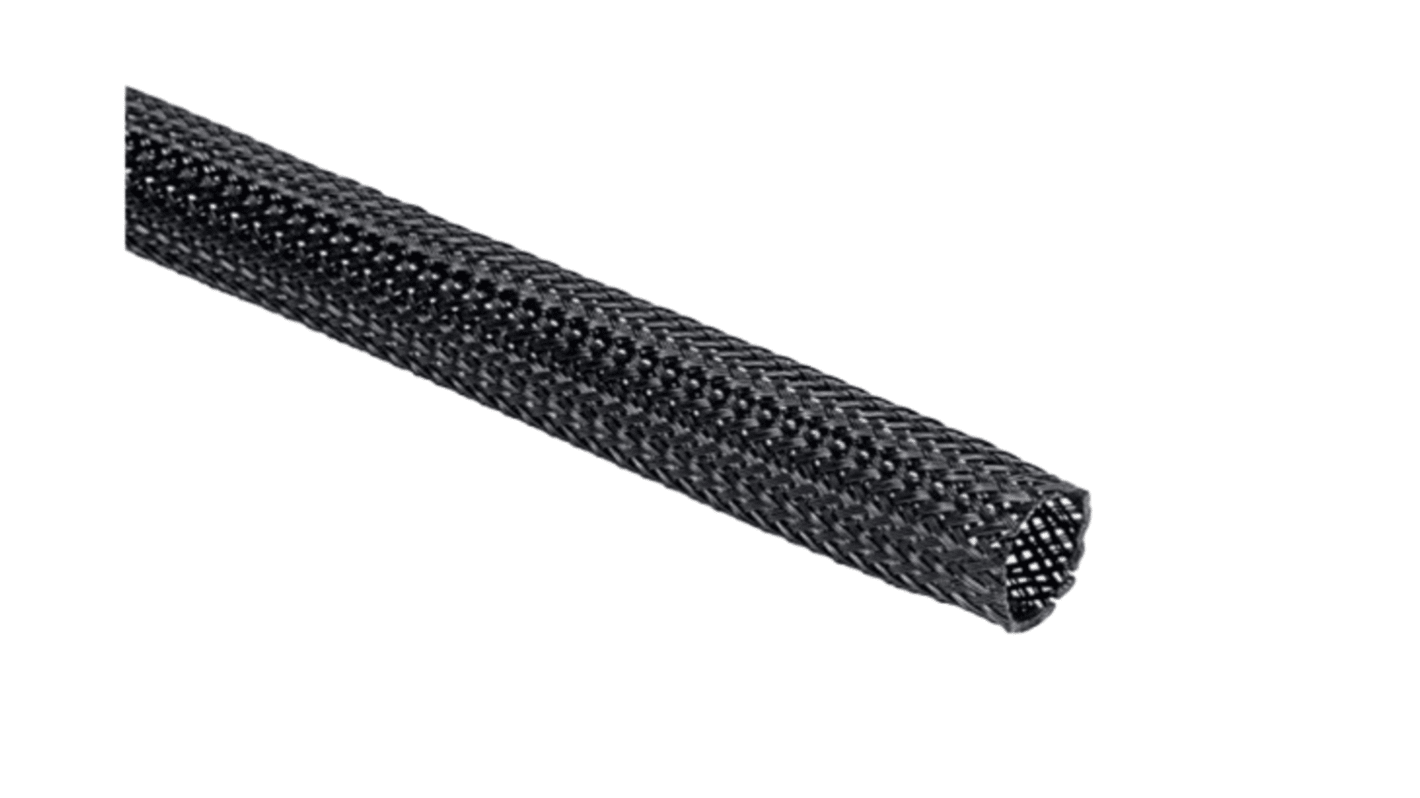

Helagaine braided sleeving

Expandable and highly flexible monofil sleeving for bundling and protecting leads and cables. Its special woven structure allows it to be slipped on easily. The sleeving should be cut with a hot cutting tool, or the ends fused with a soldering iron or similar.

Specifications
Attribute Value
Sleeve Diameter 25mm
Colour Black
Material PET
Sleeve Length 5m
Braided Yes
Expandable Yes
Minimum Cable Diameter 18mm
Maximum Cable Diameter 34mm
Minimum Operating Temperature -50°C
Maximum Operating Temperature +150°C
Series Helagaine HEGP06
46 Within 4 working day(s) (Global stock)
176 Within 4 working day(s) (Global stock)
Price 1 Reel of 5 Metre(s)
MYR 145.42
Reel(s)
Per Reel
Per Metre*
1 - 14
MYR145.42
MYR29.084
15 - 49
MYR138.09
MYR27.618
50 +
MYR131.22
MYR26.244
*price indicative
