RS PRO Expandable Braided Cable Sleeve, 7.5mm Diameter, 10m Length

  • RS Stock No. 181-1998
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

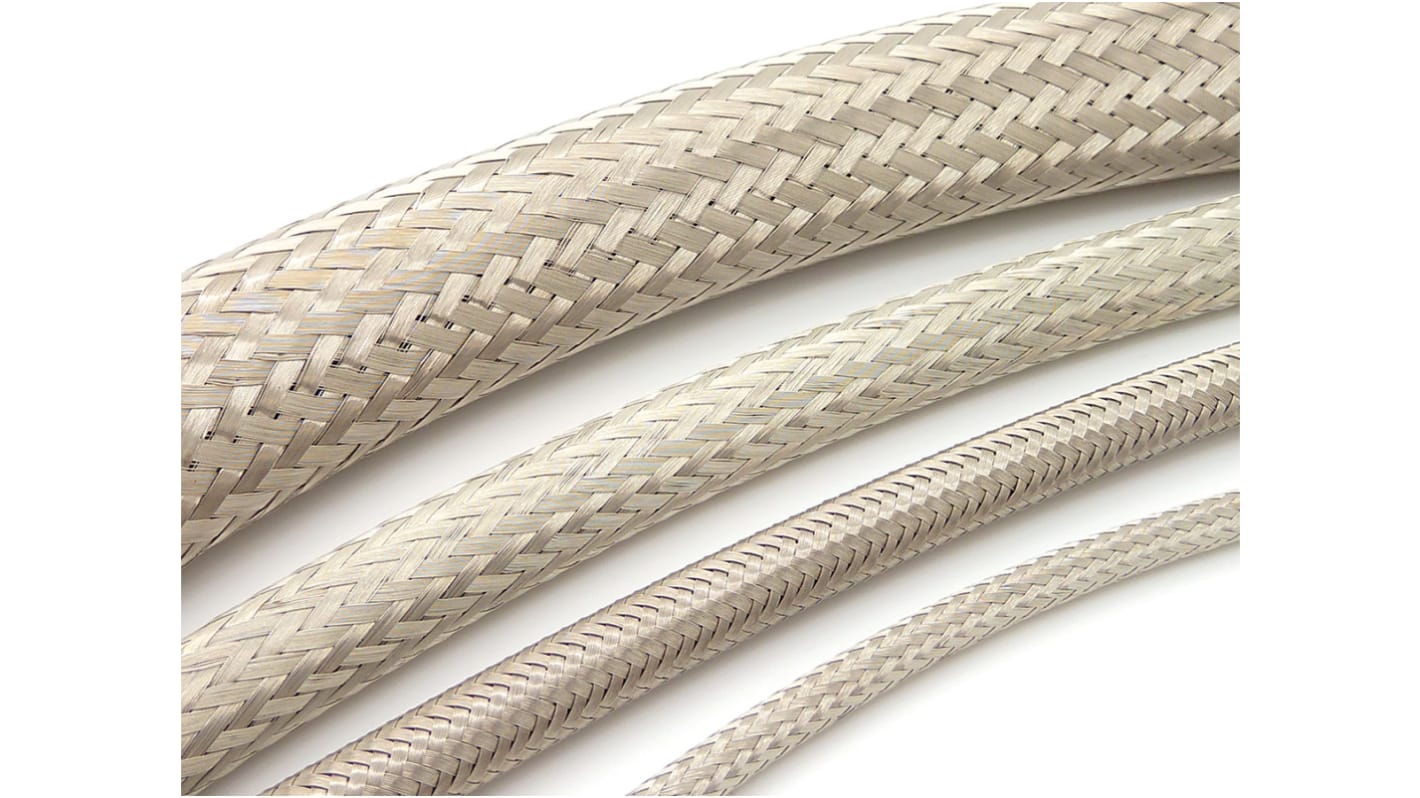

CSB is a commercial screening braid providing exceptional protection for wire and cable harnesses from electromagnetic, electrostatic and radio frequency interference. Available in tin plated copper and provides a minimum optical coverage of 90%. It is supplied on a removable PVC former in order to maintain its physical integrity and to aid application. This product is recommended for wire systems demanding high levels of protection from electromagnetic interference EMI.CSB Screening braid provides a cost effective method of screening wire bundles, harnesses, cables and conduit systems. The product can also be utilised for earth continuity purposes.

Specifications
Attribute Value
Sleeve Diameter 7.5mm
Sleeve Length 10m
Braided Yes
Expandable Yes
Minimum Operating Temperature -65°C
Maximum Operating Temperature +150°C
Standards Met REACH
50 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 345.26
units
Per unit
Per Reel*
1 +
MYR345.26
MYR3,452.60
*price indicative
