RS PRO Heat Shrink Cable Marker Yellow 1.1 → 2.7mm Dia. Range

  • RS Stock No. 872-6227
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

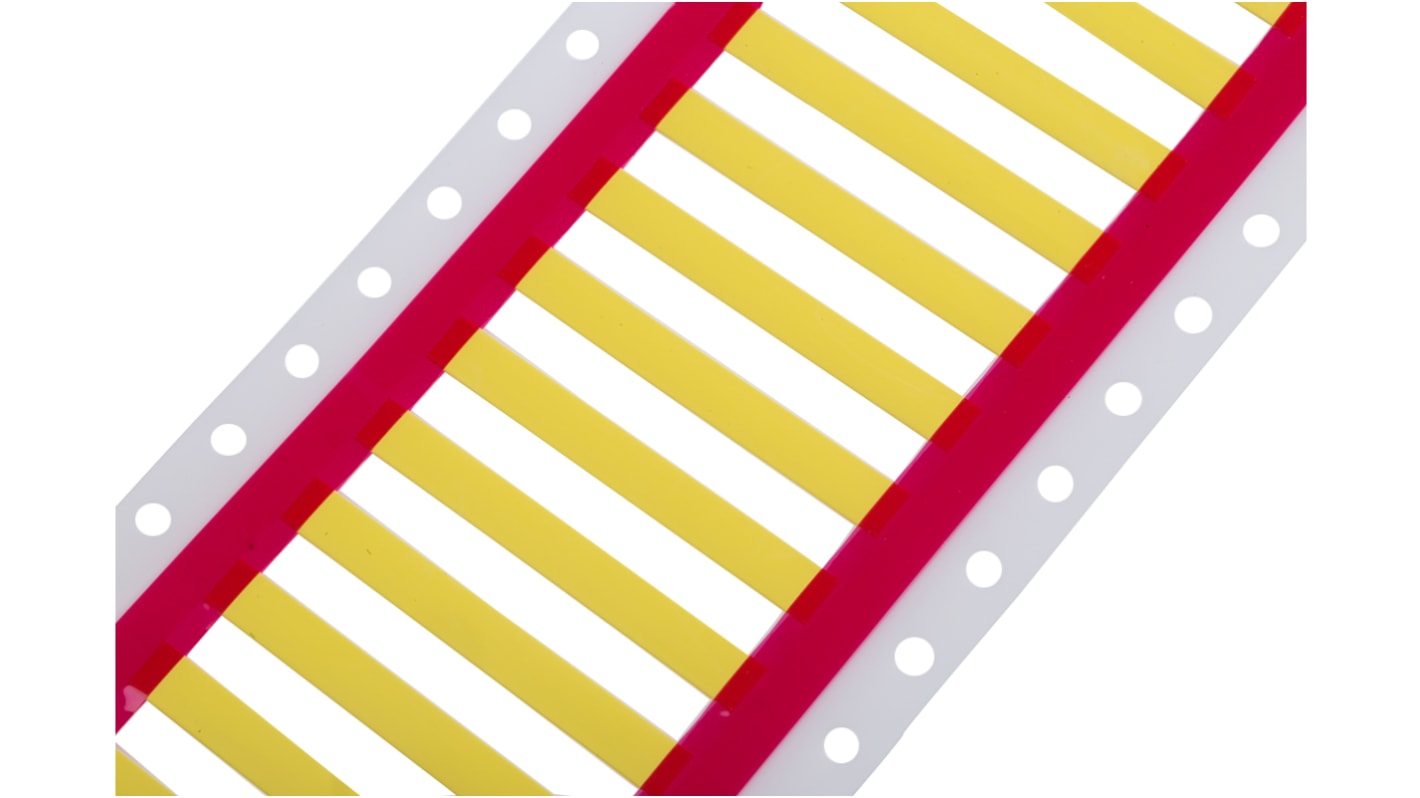

RS Heat-shrink Identification Sleeves

Heat shrinkable identification sleeves that are manufactured from high quality, flame retardant polyolefin with excellent performance properties. The marker sleeves are pre-cut and organised in a ladder format. The identification sleeves are extremely flexible with a thin wall design allowing them to be used with printers; reducing errors, installation time and cost.

Features and benefits
• Shrink ratio of 3:1
• Available in yellow or white, in a range of diameter sizes
• Ready to use for thermal transfer printers
• Flexible
• Flame retardant
• Good abrasion and chemical resistance
• Reliable physical, chemical and electrical properties
• Pre-cut tube with dotted line for tearing off the tube easily

Attribute Value
Affixing Method Heat Shrink
Minimum Cable Diameter 1.1mm
Maximum Cable Diameter 2.7mm
Colour Yellow
Width 3.2 mm
Quantity 1000
Material Polyolefin
Minimum Operating Temperature -55°C
Maximum Operating Temperature +125°C
Fire Behaviour Flame Retardant
Resistant To Abrasion, Chemicals
Operating Temperature Range -55 → +125 °C
Standards Met CULus, RoHS Compliant
Cable Diameter Range 1.1 → 2.7mm
5 In Global stock for delivery within 4 - 6 working days
Price 1 Box of 1000
MYR 524.09
Per Box
Per unit*
1 - 14
15 - 49
50 +
*price indicative
