HellermannTyton WIC Clip On Cable Marker, Pre-printed 9 White 2 → 2.8mm Dia. Range

  • RS Stock No. 408-4478
  • Mfr. Part No. 561-01699 WIC1-9-PA66-WH
  • Manufacturer HellermannTyton
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

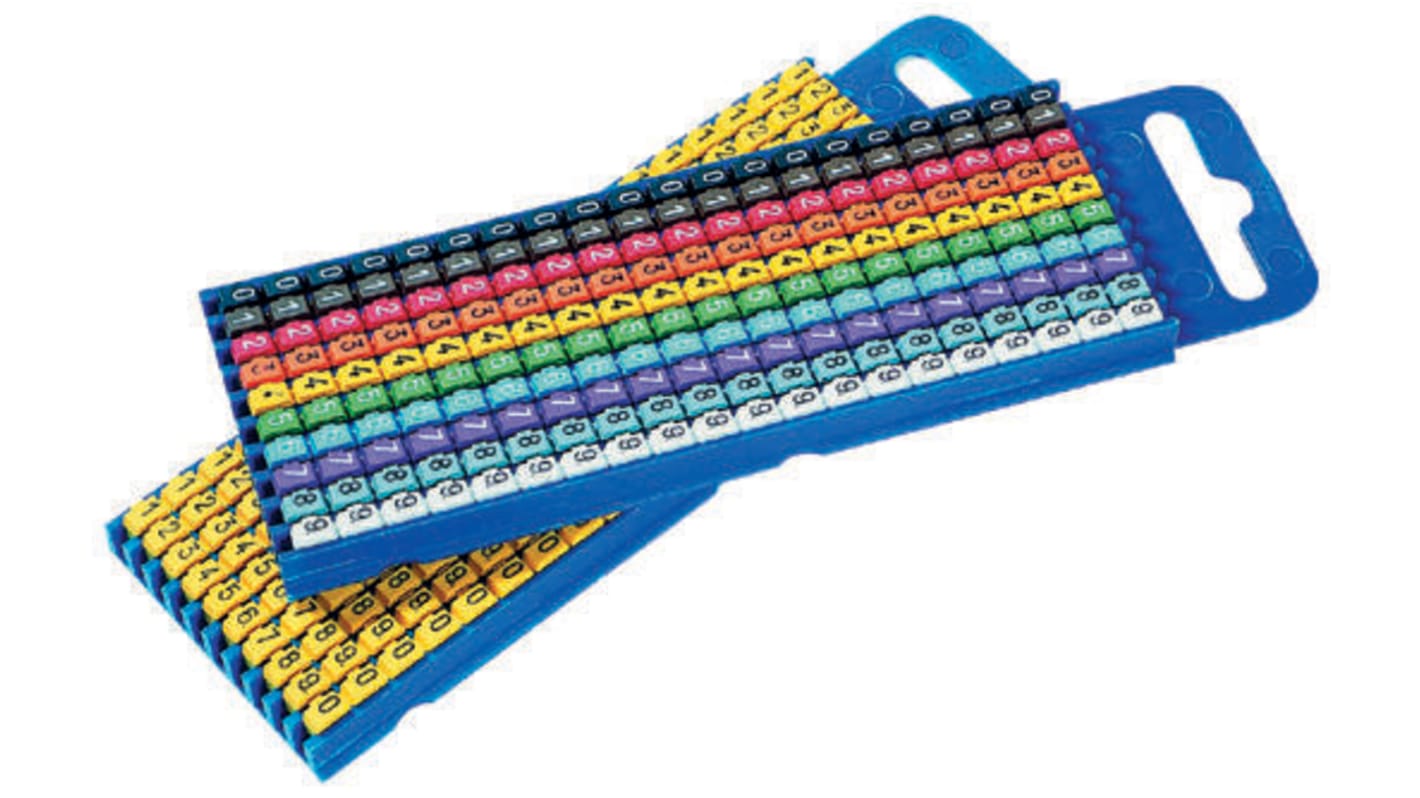

WIC Snap-on Cable Markers

WIC markers are applied to the wire by simply clicking them on using the WIC tool or if no tool is available they can easily be applied by hand. Simply insert the marker strip into the back of the tool and slide down to the end and simply press the marker down over the wire. Twist off the marker and apply the next marker. Once all the markers are on slide them together until the locking mechanism engages. The markers are on a dispenser that is colour coded (Red, Blue or Yellow) for the different sizes of markers. The applicator tool (which can be used with all 3 sizes of markers) is easy to use and designed for use in confined space.

Features and benefits
• Fast and easy to use pre-printed nylon snap-on marker
• Ideal where termination is completed or for maintenance and repair
• Markers lock together to give perfect text alignment
• Vibration resistant markers
• Gripping system locks markers onto wire and resists rotation

Attribute Value
Affixing Method Snap On
Legend 9
Minimum Cable Diameter 2mm
Maximum Cable Diameter 2.8mm
Colour White
Length 3mm
Width 5 mm
Quantity 200
Material Polyamide
Printable No
Minimum Operating Temperature -40°C
Maximum Operating Temperature +85°C
Resistant To Vibrations
Operating Temperature Range -40 → +85 °C
Cable Diameter Range 2 → 2.8mm
Series WIC
8 In Global stock for delivery within 4 - 6 working days
Price 1 Bag of 200
Was MYR41.37
MYR 40.76
Per Bag
Per unit*
1 - 14
15 - 49
50 +
*price indicative
