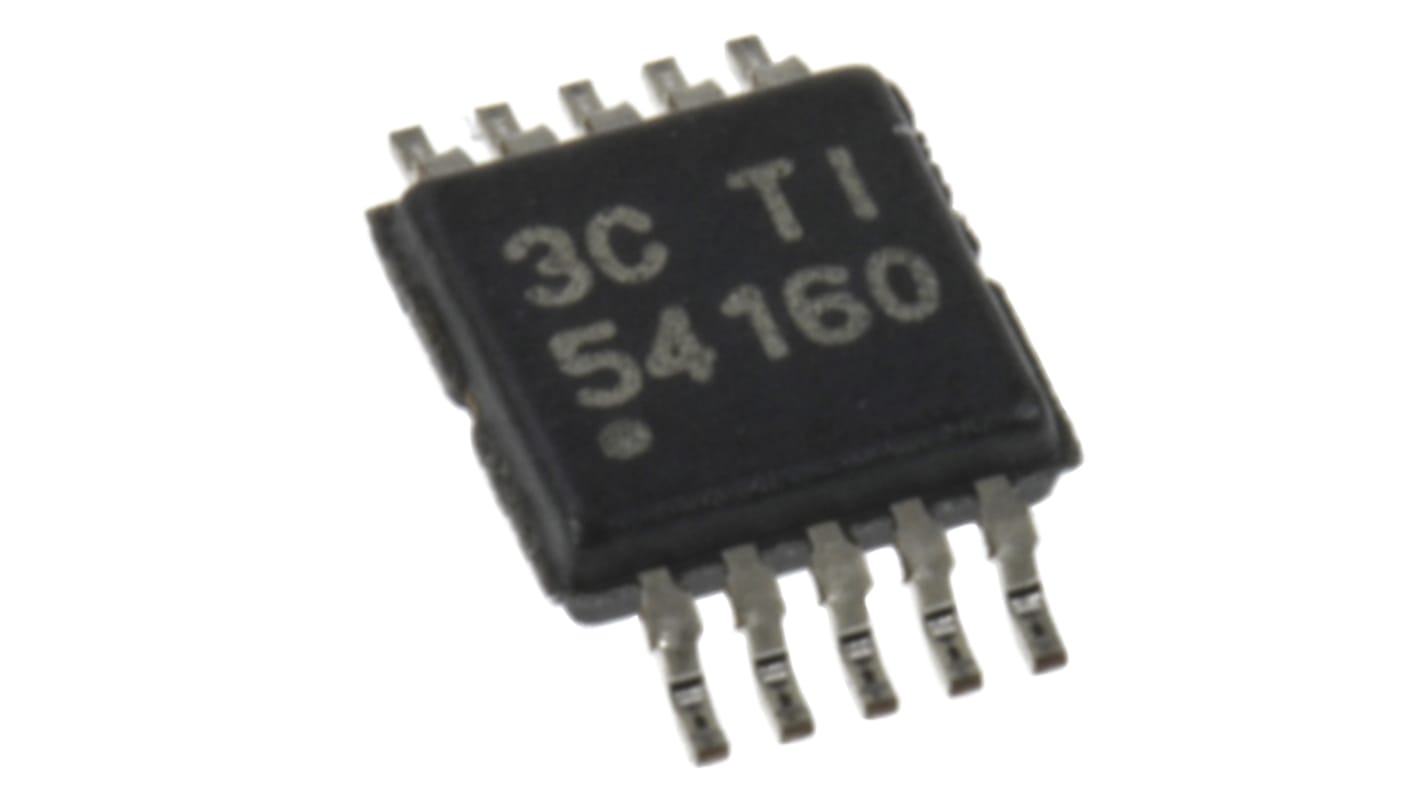

Texas Instruments, TPS54160DGQ Step-Down Switching Regulator, 1-Channel 1.5A Adjustable 10-Pin, MSOP
- RS Stock No.:
- 923-6671
- Mfr. Part No.:
- TPS54160DGQ
- Manufacturer:
- Texas Instruments
720 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Tube of 80)
MYR19.646
| Units | Per Unit | Per Tube* |
| 80 - 80 | MYR19.646 | MYR1,571.68 |
| 160 - 240 | MYR19.213 | MYR1,537.04 |
| 320 + | MYR18.86 | MYR1,508.80 |
| *price indicative | ||
- RS Stock No.:
- 923-6671
- Mfr. Part No.:
- TPS54160DGQ
- Manufacturer:
- Texas Instruments
Legislation and Compliance
Product Details
Step-Down DC/DC Converters (Integrated Switch) over 35V Input Max., Texas Instruments
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
DC/DC Switching Regulator Converters (Integrated Switch), Texas Instruments
The range of highly integrated high-efficiency switching voltage regulators from Texas Instruments includes Step-up (Boost), Step-down (Buck), Step-up/down (Boost/Buck) and Inverting types providing efficient solutions for every DC Voltage Regulator application.
Specifications
Attribute | Value |
|---|---|
| Maximum Output Current | 1.5A |
| Regulator Function | Buck Controller |
| Minimum Input Voltage | 3.5 V |
| Maximum Input Voltage | 60 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Maximum Switching Frequency | 2500 kHz |
| Pin Count | 10 |
| Package Type | MSOP |
| Switching Regulator | Yes |
| Maximum Operating Temperature | +150 °C |
| Length | 3mm |
| Height | 1.02mm |
| Width | 3mm |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 3 x 3 x 1.02mm |
