Units	Per Unit
1 - 9	MYR19.55
10 - 49	MYR19.13
50 - 99	MYR18.55
100 - 249	MYR18.09
250 +	MYR17.70

Select all	Attribute	Value
	Brand	Texas Instruments
	Maximum Output Current	500mA
	Maximum Output Voltage	37 V
	Regulator Function	Buck Controller, Inverting
	Minimum Output Voltage	1.2 V
	Minimum Input Voltage	4.5 V
	Maximum Input Voltage	40 V
	Output Type	Adjustable
	Mounting Type	Through Hole
	Number of Outputs	1
	Maximum Switching Frequency	173 kHz
	Pin Count	8
	Package Type	MDIP
	Switching Regulator	Yes
	Length	9.27mm
	Height	3.3mm
	Efficiency	80%
	Dimensions	9.27 x 6.35 x 3.3mm
	Minimum Operating Temperature	-40 °C
	Width	6.35mm
	Maximum Operating Temperature	+125 °C

	Select all
	Brand Texas Instruments
	Maximum Output Current 500mA
	Maximum Output Voltage 37 V
	Regulator Function Buck Controller, Inverting
	Minimum Output Voltage 1.2 V
	Minimum Input Voltage 4.5 V
	Maximum Input Voltage 40 V
	Output Type Adjustable
	Mounting Type Through Hole
	Number of Outputs 1
	Maximum Switching Frequency 173 kHz
	Pin Count 8
	Package Type MDIP
	Switching Regulator Yes
	Length 9.27mm
	Height 3.3mm
	Efficiency 80%
	Dimensions 9.27 x 6.35 x 3.3mm
	Minimum Operating Temperature -40 °C
	Width 6.35mm
	Maximum Operating Temperature +125 °C

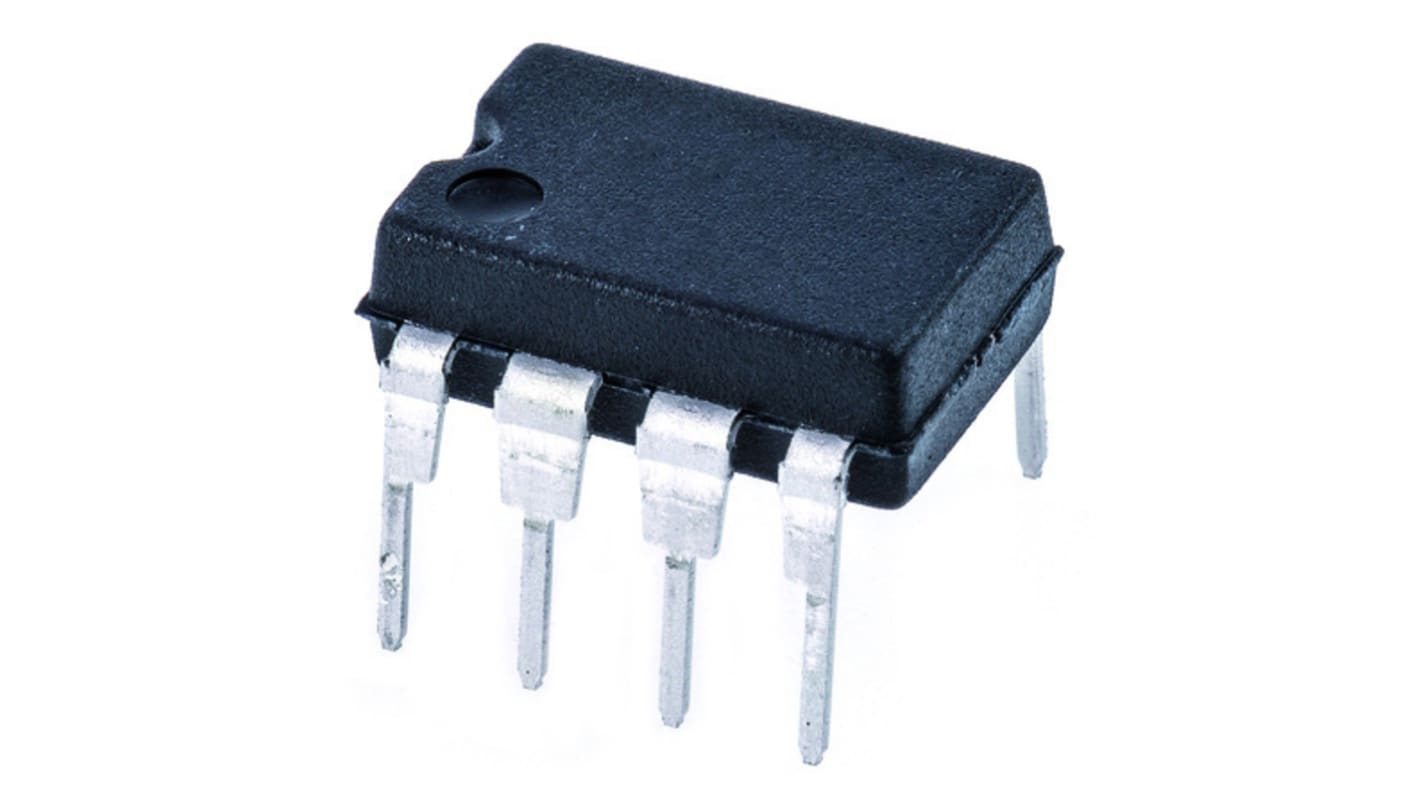

Texas Instruments, LM2594N-ADJ/NOPBStep-Down Switching Regulator, 1-Channel 500mA Adjustable 8-Pin, MDIP

FREE delivery for orders over MYR500.00

SIMPLE SWITCHER® Step-Down Regulators, LM259x Series
