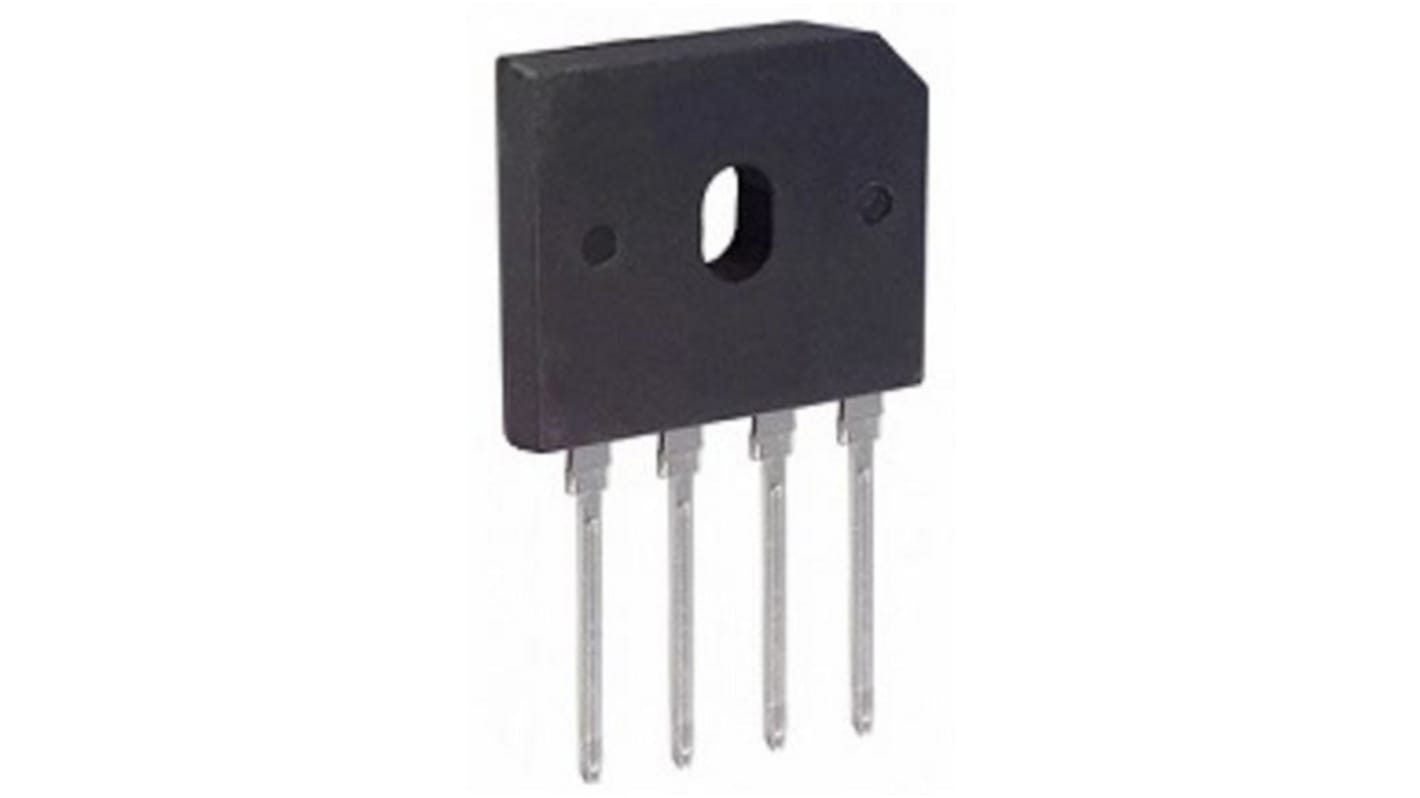

HY Electronic Corp Bridge Rectifier, 10A, 600V, 4-Pin
- RS Stock No.:
- 923-5457
- Mfr. Part No.:
- GBU1006
- Manufacturer:
- HY Electronic Corp
Temporarily out of stock - back order for despatch 04/12/2024, delivery within 4 working days from despatch date
Added
Price Each (In a Tube of 20)
MYR1.984
| Units | Per Unit | Per Tube* |
| 20 + | MYR1.984 | MYR39.68 |
| *price indicative | ||
- RS Stock No.:
- 923-5457
- Mfr. Part No.:
- GBU1006
- Manufacturer:
- HY Electronic Corp
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Bridge Rectifier - GBU Series
The GBU series of bridge rectifiers are glass passivated with a range up to 25 A forward current and 600 V or 1000 VRRM. The HY Electronic (Cayman) Limited rectifier family can reach -350 A surge overload and the plastic material has a UL Classification. It can be mounted on the PCB in any position and it transforms Alternating current (AC) into direct current (DC).
4A Surge overload rating: -150 A peak
6A Surge overload rating: -175 A peak
8A Surge overload rating: -200 A peak
10A Surge overload rating: -220 A peak
15A Surge overload rating: -240 A peak
20A Surge overload rating: -260 A peak
25A Surge overload rating: -350 A peak
6A Surge overload rating: -175 A peak
8A Surge overload rating: -200 A peak
10A Surge overload rating: -220 A peak
15A Surge overload rating: -240 A peak
20A Surge overload rating: -260 A peak
25A Surge overload rating: -350 A peak
Bridge Rectifiers - HY Electronic (Cayman) Limited
Specifications
Attribute | Value |
|---|---|
| Peak Average Forward Current | 10A |
| Bridge Type | Single Phase |
| Peak Reverse Repetitive Voltage | 600V |
| Mounting Type | Through Hole |
| Package Type | GBU |
| Pin Count | 4 |
| Configuration | Single |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage | 1V |
| Peak Reverse Current | 500µA |
| Length | 22.3mm |
| Dimensions | 22.3 x 3.56 x 18.8mm |
| Width | 3.56mm |
| Height | 18.8mm |
