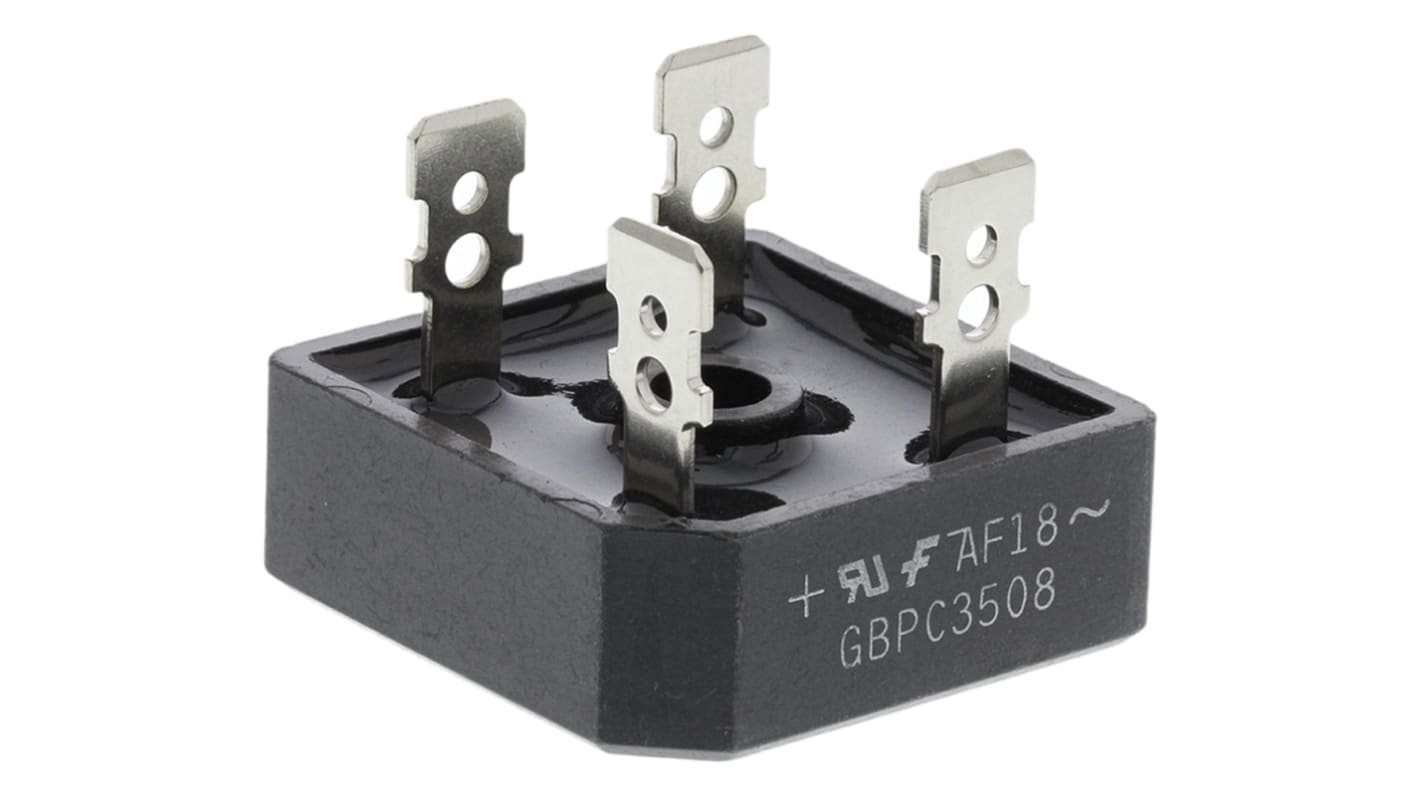

onsemi Bridge Rectifier, 35A, 800V, 4-Pin

Discontinued product

Attribute	Value
Bridge Type	Single Phase
Peak Average Forward Current	35A
Peak Reverse Repetitive Voltage	800V
Mounting Type	Screw Mount
Package Type	GBPC
Pin Count	4
Configuration	Single
Peak Non-Repetitive Forward Surge Current	400A
Maximum Operating Temperature	+150 °C
Minimum Operating Temperature	-55 °C
Peak Forward Voltage	1.1V
Peak Reverse Current	500µA
Length	29mm
Dimensions	29 x 29 x 11.23mm
Width	29mm
Height	11.23mm
