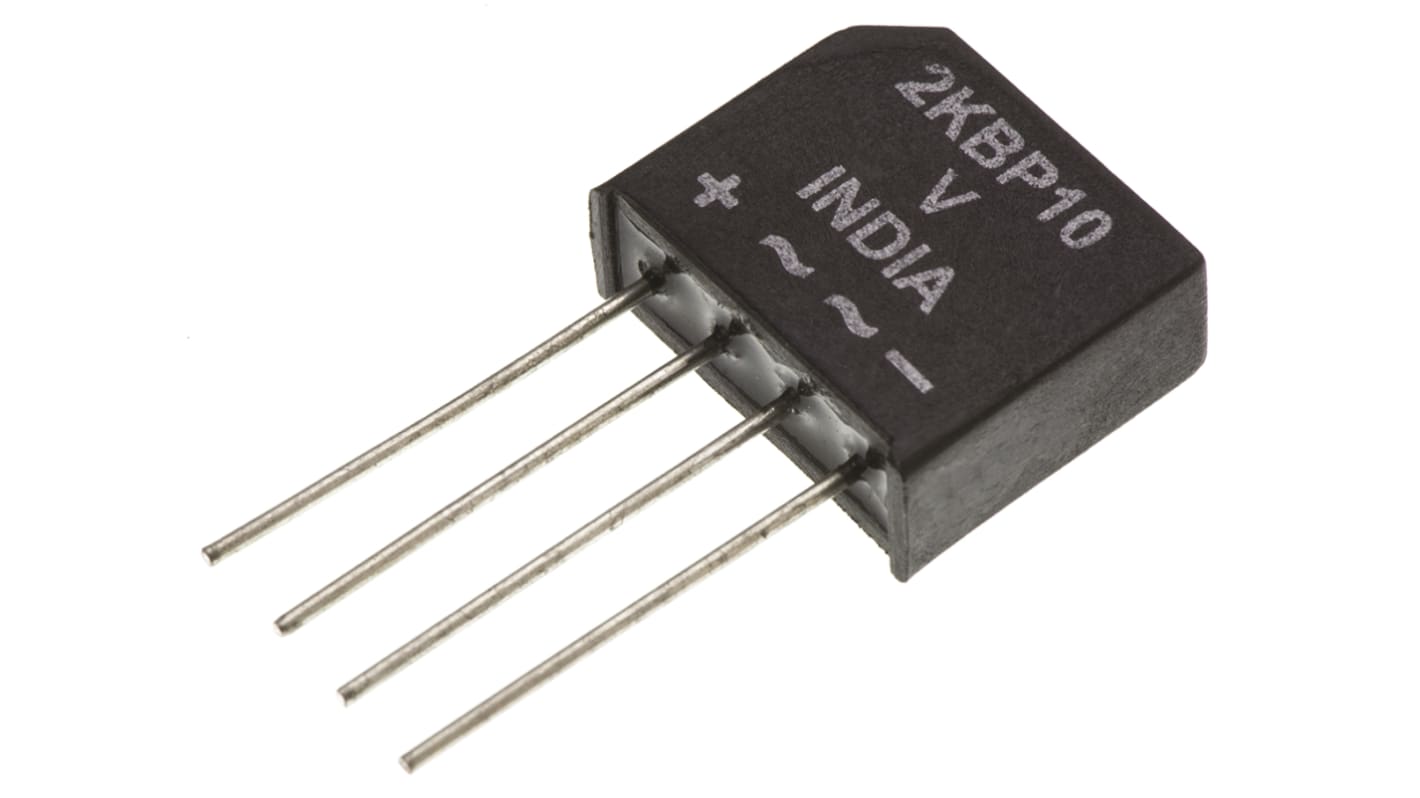

Vishay VS-2KBP10, Bridge Rectifier, 2A 1000V, 4-Pin D 44

  • RS Stock No. 395-2998
  • Mfr. Part No. VS-2KBP10
  • Manufacturer Vishay
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Vishay 2KBP Series Bridge Rectifiers

A 2 A single phase encapsulated bridge rectifier consisting of four single diodes connected as a full bridge. They are intended for general applications in industrial and consumer equipment.

• Suitable for printed circuit board mounting
• Compact construction
• High surge current capability

Bridge Rectifiers - Vishay Semiconductor

The Bridge Rectifier converts an Alternating Current (AC) input into a Direct Current (DC) output for full-wave rectification applications. The diode arrangement provides the same polarity of output for either polarity of input. A three-phase full-wave rectifier is an arrangement of six diodes in a bridge circuit configuration. The packages are designed for minimal size, highest reliability and maximum thermal performance.

Specifications
Attribute Value
Peak Average Forward Current 2A
Bridge Type Single Phase
Peak Reverse Repetitive Voltage 1000V
Mounting Type Through Hole
Package Type D 44
Pin Count 4
Configuration Single
Peak Non-Repetitive Forward Surge Current 63A
Maximum Operating Temperature +150 °C
Minimum Operating Temperature -40 °C
Peak Forward Voltage 1V
Peak Reverse Current 10µA
Length 17.5mm
Height 15mm
Dimensions 17.5 x 6.8 x 15mm
Width 6.8mm
