Units	Per Unit
100 - 490	MYR2.166
500 - 990	MYR2.099
1000 - 4990	MYR2.055
5000 +	MYR2.011

Select all	Attribute	Value
	Brand	Bourns
	Peak Average Forward Current	2A
	Bridge Type	Single Phase
	Peak Reverse Repetitive Voltage	100V
	Mounting Type	Surface Mount
	Package Type	SMT
	Pin Count	4
	Diode Technology	Schottky
	Configuration	Single
	Peak Non-Repetitive Forward Surge Current	50A
	Maximum Operating Temperature	+125 °C
	Minimum Operating Temperature	-55 °C
	Peak Forward Voltage	850mV
	Peak Reverse Current	200µA
	Length	6.25mm
	Dimensions	6.25 x 4.85 x 1.22mm
	Junction Capacitance	250pF
	Width	4.85mm
	Height	1.22mm

	Select all
	Brand Bourns
	Peak Average Forward Current 2A
	Bridge Type Single Phase
	Peak Reverse Repetitive Voltage 100V
	Mounting Type Surface Mount
	Package Type SMT
	Pin Count 4
	Diode Technology Schottky
	Configuration Single
	Peak Non-Repetitive Forward Surge Current 50A
	Maximum Operating Temperature +125 °C
	Minimum Operating Temperature -55 °C
	Peak Forward Voltage 850mV
	Peak Reverse Current 200µA
	Length 6.25mm
	Dimensions 6.25 x 4.85 x 1.22mm
	Junction Capacitance 250pF
	Width 4.85mm
	Height 1.22mm

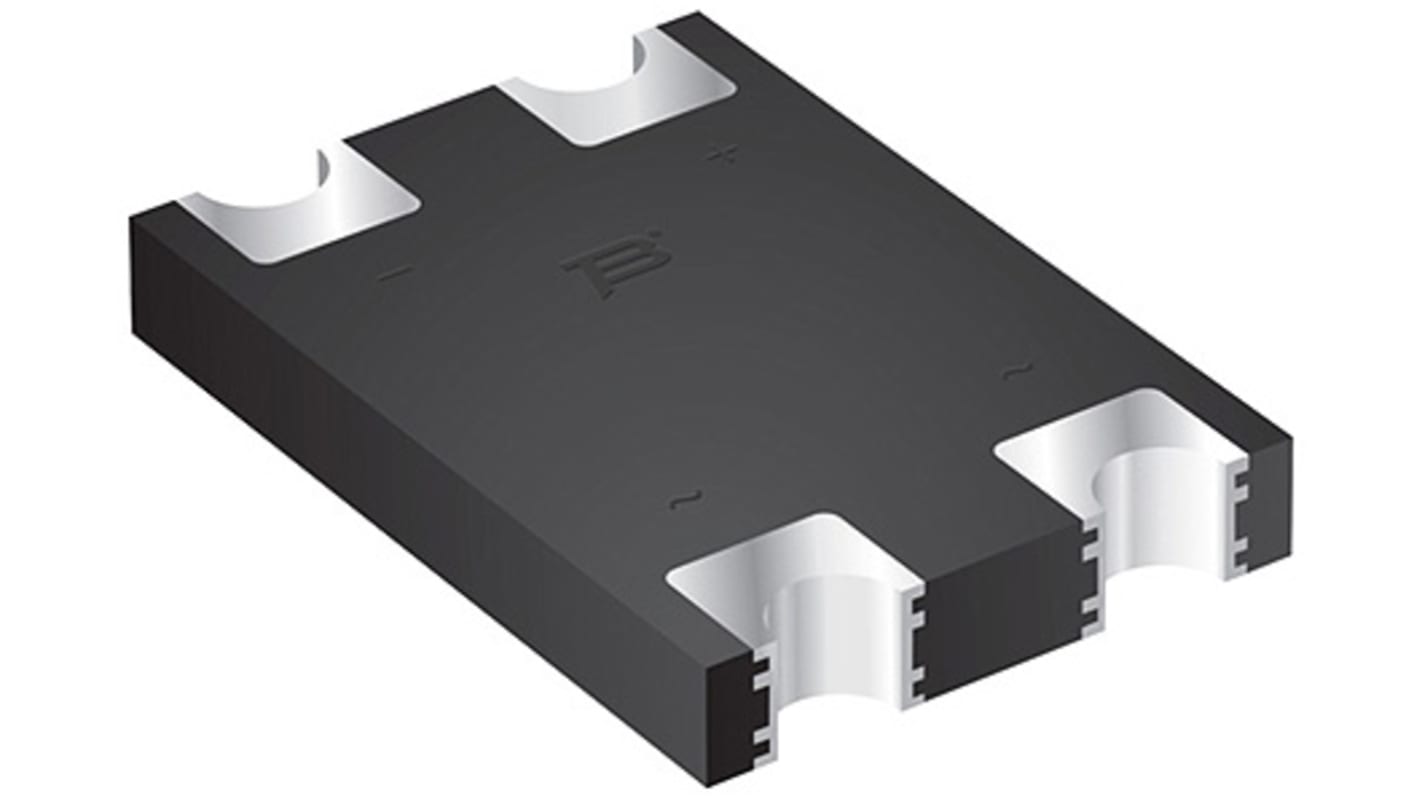

Bourns Bridge Rectifier, 2A, 100V, 4-Pin

FREE delivery for orders over MYR500.00

SMT Schottky Bridge Rectifiers, Bourns Electronics
