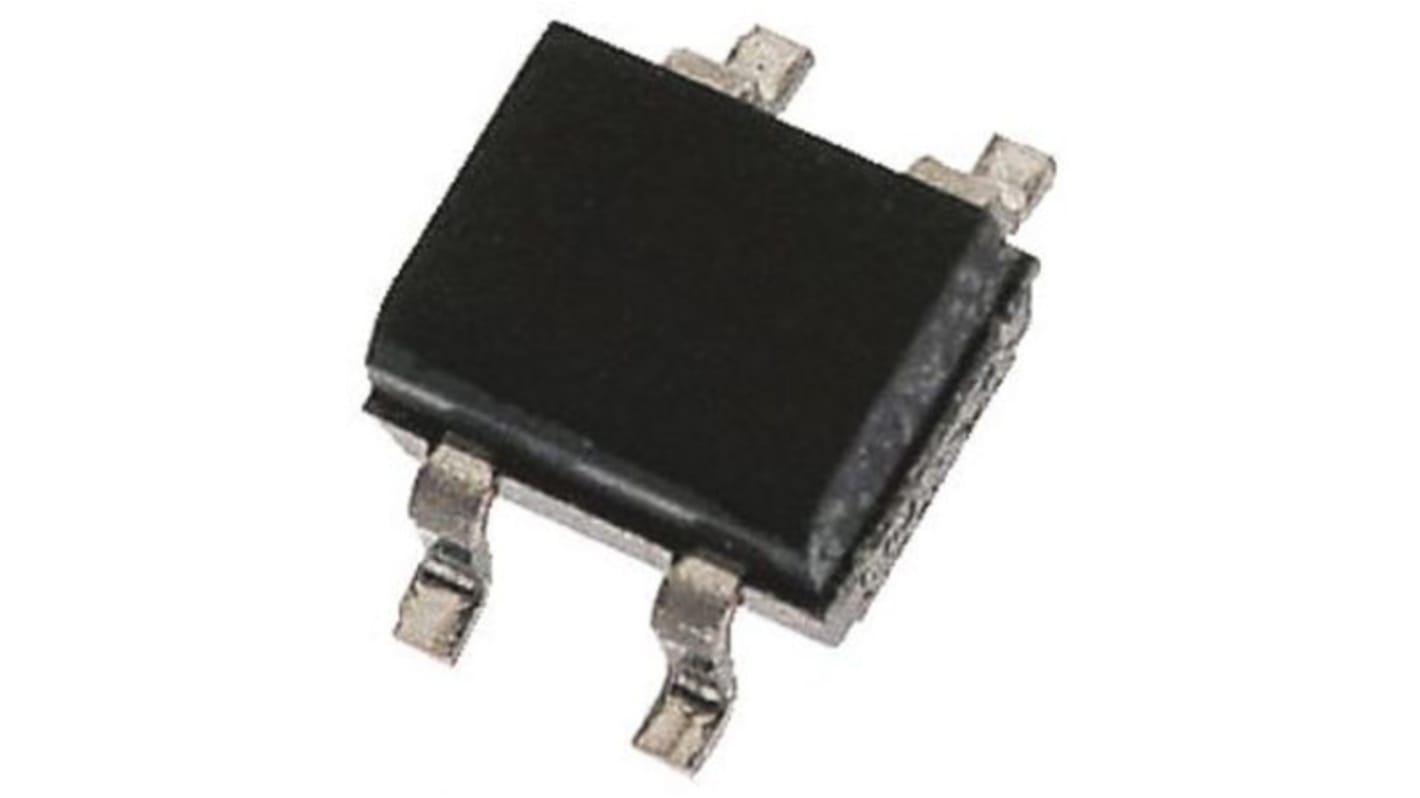

Fagor Electronica Bridge Rectifier, 500 mA, 800 mA, 600V, 4-Pin
- RS Stock No.:
- 123-1501P
- Mfr. Part No.:
- 1SMZG06GP TR
- Manufacturer:
- Fagor Electronica
Discontinued product
- RS Stock No.:
- 123-1501P
- Mfr. Part No.:
- 1SMZG06GP TR
- Manufacturer:
- Fagor Electronica
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Fagor Electronica | |
| Bridge Type | Single Phase | |
| Peak Average Forward Current | 500 mA, 800 mA | |
| Peak Reverse Repetitive Voltage | 600V | |
| Mounting Type | Surface Mount | |
| Package Type | TO-269AA | |
| Pin Count | 4 | |
| Diode Technology | Silicon Junction | |
| Configuration | Single | |
| Peak Non-Repetitive Forward Surge Current | 35A | |
| Maximum Operating Temperature | +150 °C | |
| Minimum Operating Temperature | -40 °C | |
| Peak Forward Voltage | 1.15V | |
| Peak Reverse Current | 100µA | |
| Length | 4.75mm | |
| Dimensions | 4.75 x 3.65 x 2.5mm | |
| Height | 2.5mm | |
| Width | 3.65mm | |
Select all | ||
|---|---|---|
Brand Fagor Electronica | ||
Bridge Type Single Phase | ||
Peak Average Forward Current 500 mA, 800 mA | ||
Peak Reverse Repetitive Voltage 600V | ||
Mounting Type Surface Mount | ||
Package Type TO-269AA | ||
Pin Count 4 | ||
Diode Technology Silicon Junction | ||
Configuration Single | ||
Peak Non-Repetitive Forward Surge Current 35A | ||
Maximum Operating Temperature +150 °C | ||
Minimum Operating Temperature -40 °C | ||
Peak Forward Voltage 1.15V | ||
Peak Reverse Current 100µA | ||
Length 4.75mm | ||
Dimensions 4.75 x 3.65 x 2.5mm | ||
Height 2.5mm | ||
Width 3.65mm | ||
