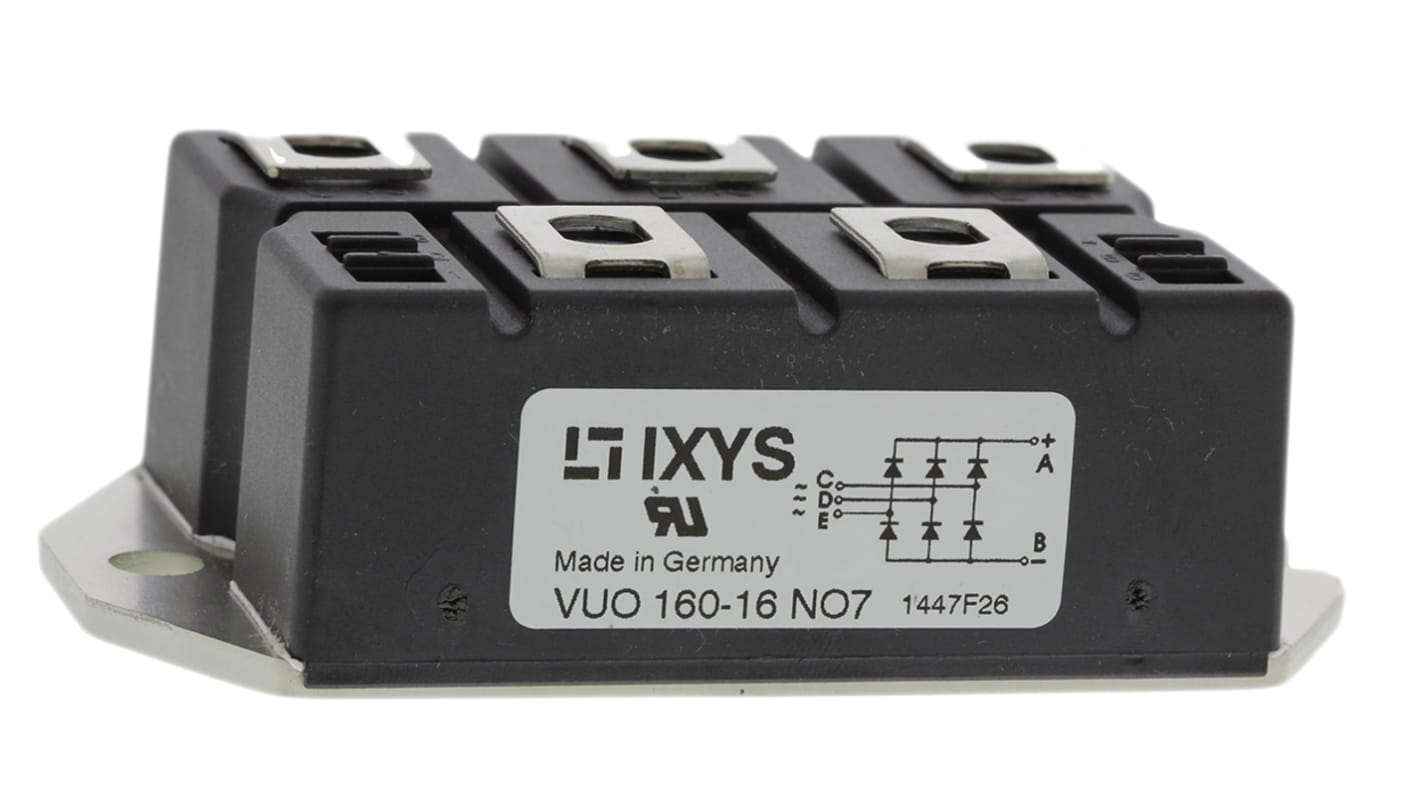

IXYS Bridge Rectifier Module, 175A, 1600V, 3-phase, 5-Pin
- RS Stock No.:
- 192-528
- Mfr. Part No.:
- VUO160-16NO7
- Manufacturer:
- IXYS
1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
6 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR333.88
| Units | Per Unit |
| 1 - 1 | MYR333.88 |
| 2 - 2 | MYR329.22 |
| 3 + | MYR322.64 |
- RS Stock No.:
- 192-528
- Mfr. Part No.:
- VUO160-16NO7
- Manufacturer:
- IXYS
Technical data sheets
Legislation and Compliance
Product Details
Three Phase Bridge Rectifier with Screw Terminals, VUO160 Series, IXYS
Package with screw terminals
Isolation voltage 3000Vrms
Low forward voltage drop
Isolation voltage 3000Vrms
Low forward voltage drop
Approvals
UL registered E 72873
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Bridge Rectifiers - IXYS
A Bridge Rectifier is a diode common application, known for converting an Alternating Current (AC) input into Direct Current a (DC) output. A diode bridge is an arrangement of four diodes in a bridge circuit configuration that provides the same polarity of output for either polarity of input.
Specifications
Attribute | Value |
|---|---|
| Bridge Type | Three Phase |
| Peak Average Forward Current | 175A |
| Peak Reverse Repetitive Voltage | 1600V |
| Mounting Type | Panel Mount |
| Package Type | PWS E 1 |
| Pin Count | 5 |
| Diode Technology | Silicon Junction |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 1.95kA |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -40 °C |
| Peak Forward Voltage | 1.65V |
| Peak Reverse Current | 300µA |
| Length | 94mm |
| Dimensions | 94 x 54 x 30mm |
| Height | 30mm |
| Width | 54mm |
