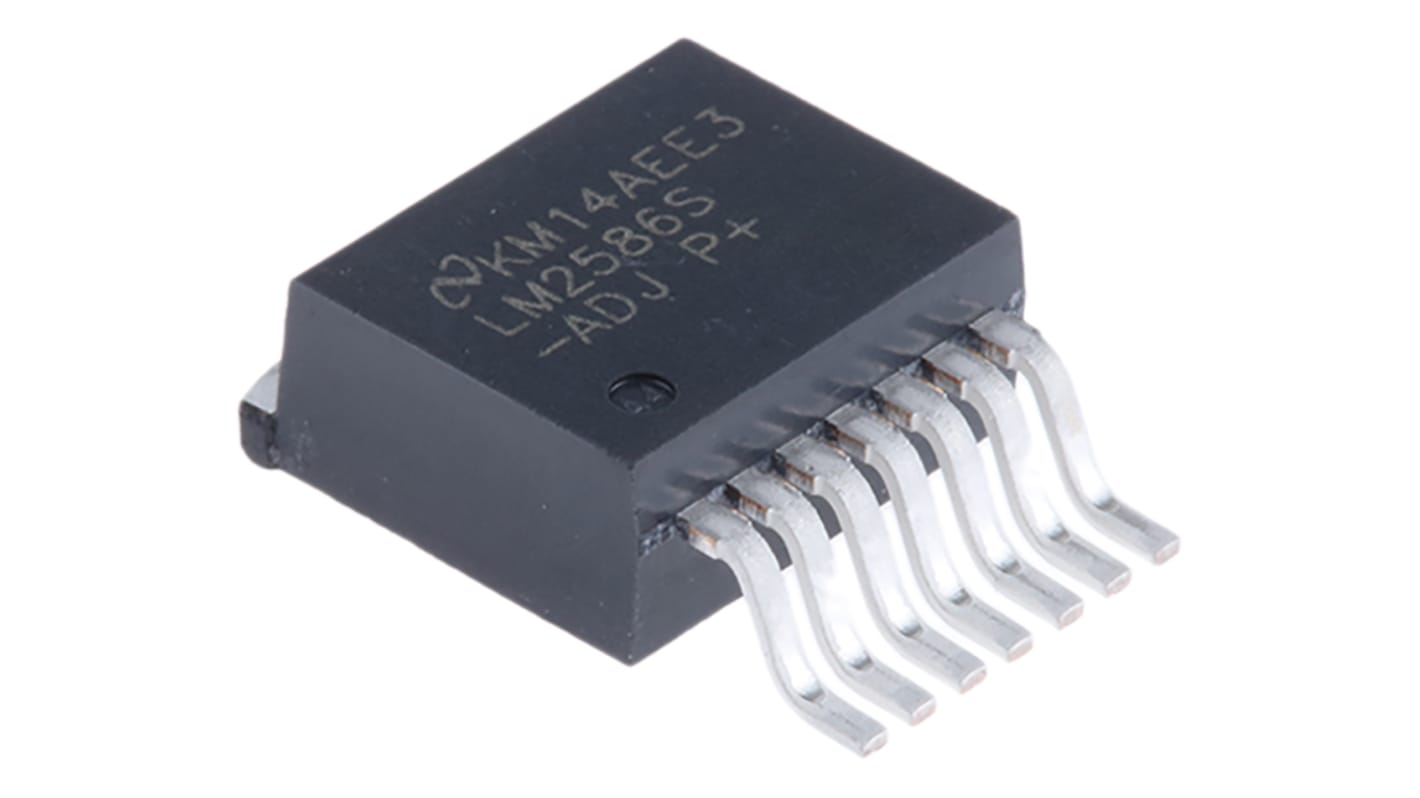

Texas Instruments LM2586S-ADJ/NOPB, Boost Converter, Step Up 3A Adjustable, 200 kHz 7-Pin, TO-263

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

LM258x Boost/Flyback/Sepic SIMPLE SWITCHER® Regulator Series

The LM258x series of SIMPLE SWITCHER® regulators are designed for flyback, step-up (boost), SEPIC, and forward converter applications.

Requires few external components
Output voltage versions: 5V, 12V, and adjustable
Family of standard inductors and transformers
Wide input voltage range: 4V to 40V
Current-mode operation for improved transient response, line regulation, and current limit
Internal soft-start function reduces in-rush current during start-up
Output transistor protected by current limit, under voltage lockout, and thermal shutdown
System Output Voltage Tolerance of ±4% max over line and load conditions
LM2586/LM2588 with external shutdown capability

SIMPLE SWITCHER® Regulators, Texas Instruments

Use for wide voltage inputs designs up to 75V, and a balance between ease of use and flexibility.

Specifications
Attribute Value
Regulator Function Step Up
Maximum Output Current 3A
Number of Outputs 1
Line Regulation 100 mV
Load Regulation 100 mV
Mounting Type Surface Mount
Package Type TO-263
Pin Count 7
Output Type Adjustable
Maximum Switching Frequency 200 kHz
Switching Regulator Yes
Efficiency 93%
Dimensions 10.16 x 8.64 x 4.57mm
Height 4.57mm
Width 8.64mm
Length 10.16mm
Maximum Operating Temperature +125 °C
Maximum Input Voltage 40 V
Minimum Input Voltage 4 V
Minimum Operating Temperature -40 °C
