Texas Instruments TPS61085DGKT, Boost Converter, Step Up 2A Adjustable, 1200 kHz 8-Pin, MSOP
- RS Stock No.:
- 162-6462
- Mfr. Part No.:
- TPS61085DGKT
- Manufacturer:
- Texas Instruments

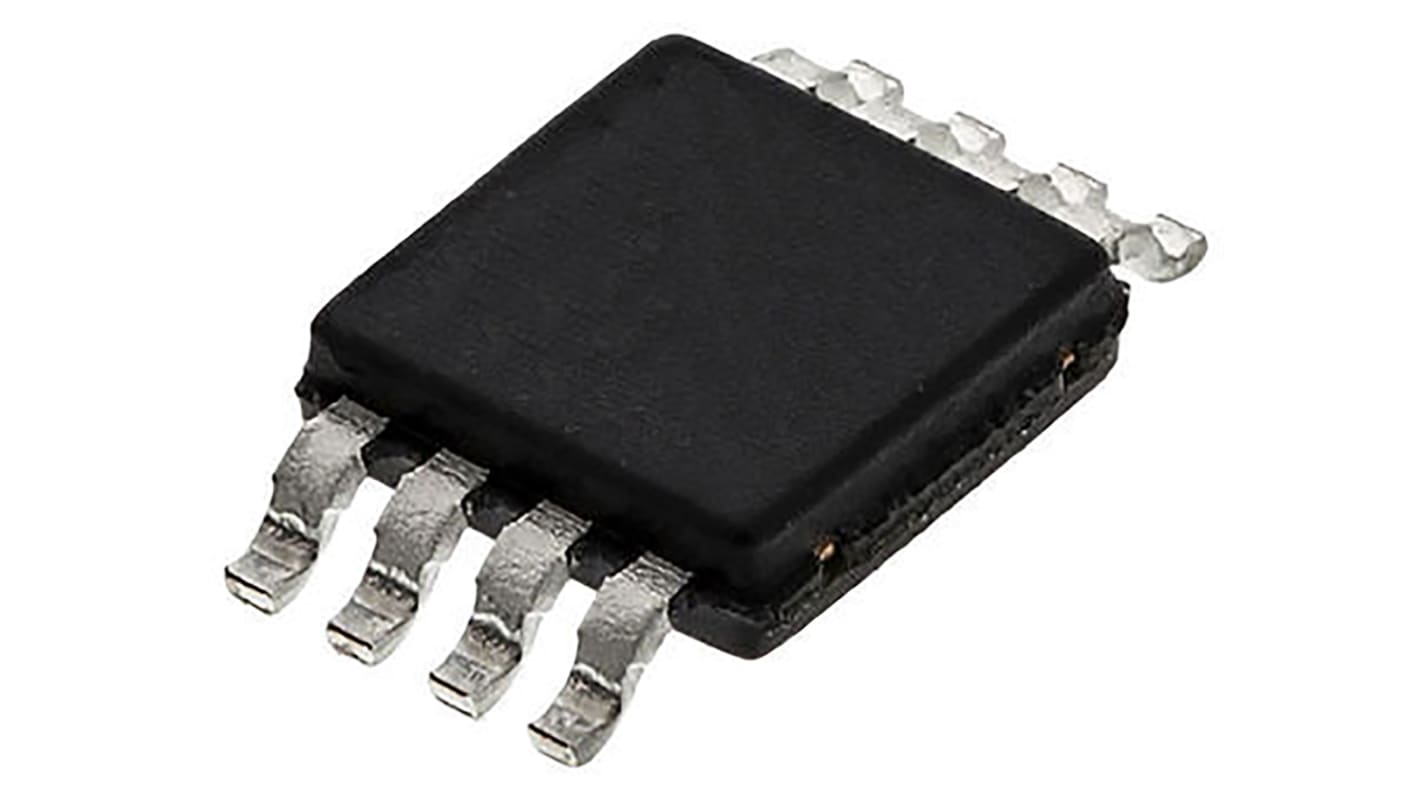

This image is representative of the product range
Bulk discount available
Subtotal (1 reel of 250 units)*
MYR2,134.25
FREE delivery for orders over RM 500.00
Temporarily out of stock
- Shipping from 17 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Reel* |
|---|---|---|
| 250 - 250 | MYR8.537 | MYR2,134.25 |
| 500 - 750 | MYR8.349 | MYR2,087.25 |
| 1000 + | MYR8.195 | MYR2,048.75 |
*price indicative
- RS Stock No.:
- 162-6462
- Mfr. Part No.:
- TPS61085DGKT
- Manufacturer:
- Texas Instruments
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Regulator Function | Step Up | |
| Maximum Output Current | 2A | |
| Number of Outputs | 1 | |
| Maximum Input Voltage | 6 V | |
| Line Regulation | 0.0002 %/V | |
| Load Regulation | 0.11 %/A | |
| Mounting Type | Surface Mount | |
| Package Type | MSOP | |
| Pin Count | 8 | |
| Output Type | Adjustable | |
| Maximum Switching Frequency | 1200 kHz | |
| Switching Regulator | Yes | |
| Dimensions | 3 x 3 x 0.97mm | |
| Maximum Output Voltage | 18.5 V | |
| Height | 0.97mm | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Input Voltage | 2.3 V | |
| Length | 3mm | |
| Width | 3mm | |
| Minimum Output Voltage | 2.8 V | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Regulator Function Step Up | ||
Maximum Output Current 2A | ||
Number of Outputs 1 | ||
Maximum Input Voltage 6 V | ||
Line Regulation 0.0002 %/V | ||
Load Regulation 0.11 %/A | ||
Mounting Type Surface Mount | ||
Package Type MSOP | ||
Pin Count 8 | ||
Output Type Adjustable | ||
Maximum Switching Frequency 1200 kHz | ||
Switching Regulator Yes | ||
Dimensions 3 x 3 x 0.97mm | ||
Maximum Output Voltage 18.5 V | ||
Height 0.97mm | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +85 °C | ||
Minimum Input Voltage 2.3 V | ||
Length 3mm | ||
Width 3mm | ||
Minimum Output Voltage 2.8 V | ||
- COO (Country of Origin):
- MY
Step-Up (Boost) DC/DC Converters (Integrated Switch), Texas Instruments
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
DC/DC Switching Regulator Converters (Integrated Switch), Texas Instruments
The range of highly integrated high-efficiency switching voltage regulators from Texas Instruments includes Step-up (Boost), Step-down (Buck), Step-up/down (Boost/Buck) and Inverting types providing efficient solutions for every DC Voltage Regulator application.
