Units	Per Unit	Per Pack**
10 - 740	MYR5.498	MYR54.98
750 - 1490	MYR5.175	MYR51.75
1500 +	MYR4.767	MYR47.67

Select all	Attribute	Value
	Brand	onsemi
	Regulator Function	Boost Converter
	Maximum Output Current	800mA
	Number of Outputs	1
	Maximum Input Voltage	5 V
	Line Regulation	1 mV/V
	Load Regulation	1 mV/V
	Mounting Type	Surface Mount
	Package Type	DFN
	Pin Count	10
	Output Type	Adjustable
	Maximum Switching Frequency	1.2 MHz
	Switching Regulator	Yes
	Efficiency	94%
	Dimensions	3 x 3 x 1.95mm
	Height	1.95mm
	Maximum Output Voltage	5 V
	Minimum Operating Temperature	-40 °C
	Minimum Input Voltage	1 V
	Minimum Output Voltage	1.5 V
	Length	3mm
	Maximum Operating Temperature	85 °C
	Width	3mm

	Select all
	Brand onsemi
	Regulator Function Boost Converter
	Maximum Output Current 800mA
	Number of Outputs 1
	Maximum Input Voltage 5 V
	Line Regulation 1 mV/V
	Load Regulation 1 mV/V
	Mounting Type Surface Mount
	Package Type DFN
	Pin Count 10
	Output Type Adjustable
	Maximum Switching Frequency 1.2 MHz
	Switching Regulator Yes
	Efficiency 94%
	Dimensions 3 x 3 x 1.95mm
	Height 1.95mm
	Maximum Output Voltage 5 V
	Minimum Operating Temperature -40 °C
	Minimum Input Voltage 1 V
	Minimum Output Voltage 1.5 V
	Length 3mm
	Maximum Operating Temperature 85 °C
	Width 3mm

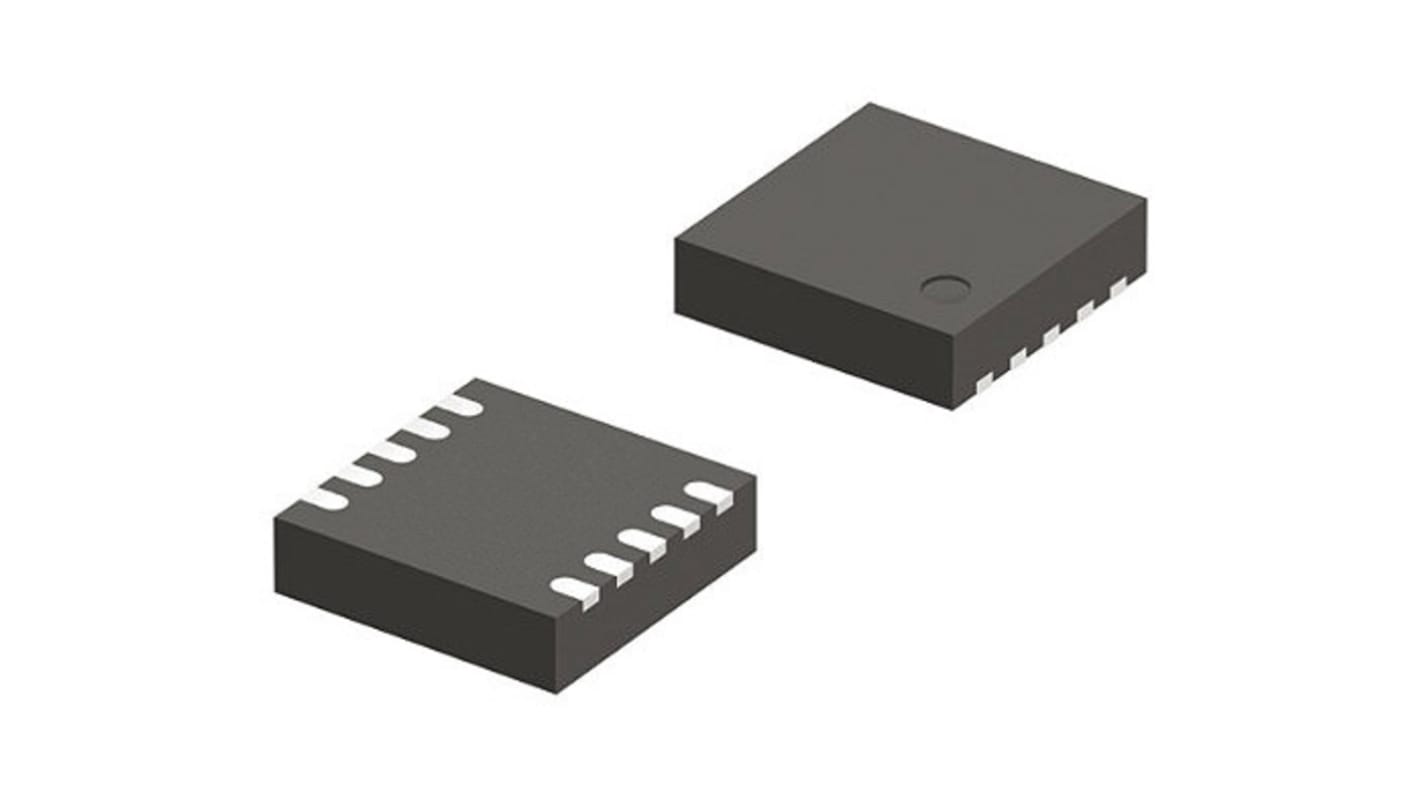

onsemi NCP1422MNR2G, Boost Converter, Boost Converter 800mA Adjustable, 1.2 MHz 10-Pin, DFN
