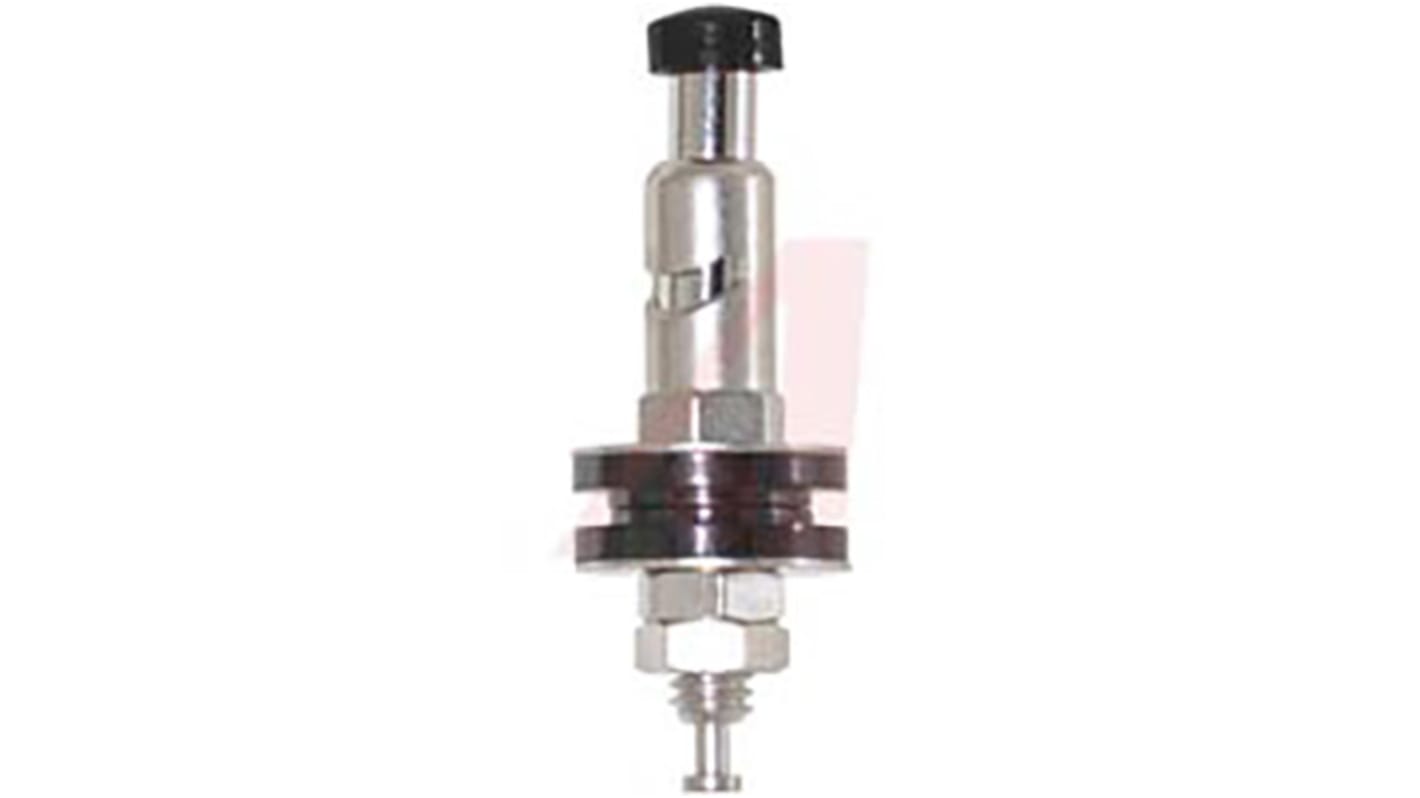

Grayhill 20A, Black Binding Post with Brass Contacts and Nickel Plated

  • RS Stock No. 878-2794
  • Mfr. Part No. 29-104 BLK
  • Manufacturer Grayhill
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

Grayhill 29 Series Push Posts and Binding Posts

The 29 series includes both push and binding posts in one range making them suitable for various applications. The push posts have three mounting options further increasing their versatility. These include standard, insulated and banana plug styles.

Push Post Features:
Quick connect/disconnect
Only 7/8" above board height
Standard, insulated, or banana plug styles
High temperature spring style
Color-coded caps with optional additional colours
Current rating: 20A at 120 Vdc

Binding Post Features:
Flush hole to prevent crimping
Space-saving 3/8" diameter or decorative flared skirt
Dual mounting base accessory
Current rating: 15A at 120 Vdc

Push and Binding Posts

Specifications
Attribute Value
Colour Black
Contact Material Brass
Contact Plating Nickel
Current Rating 20A
Voltage Rating 120V dc
Gender Male
134 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 54.56
units
Per unit
1 +
MYR54.56
