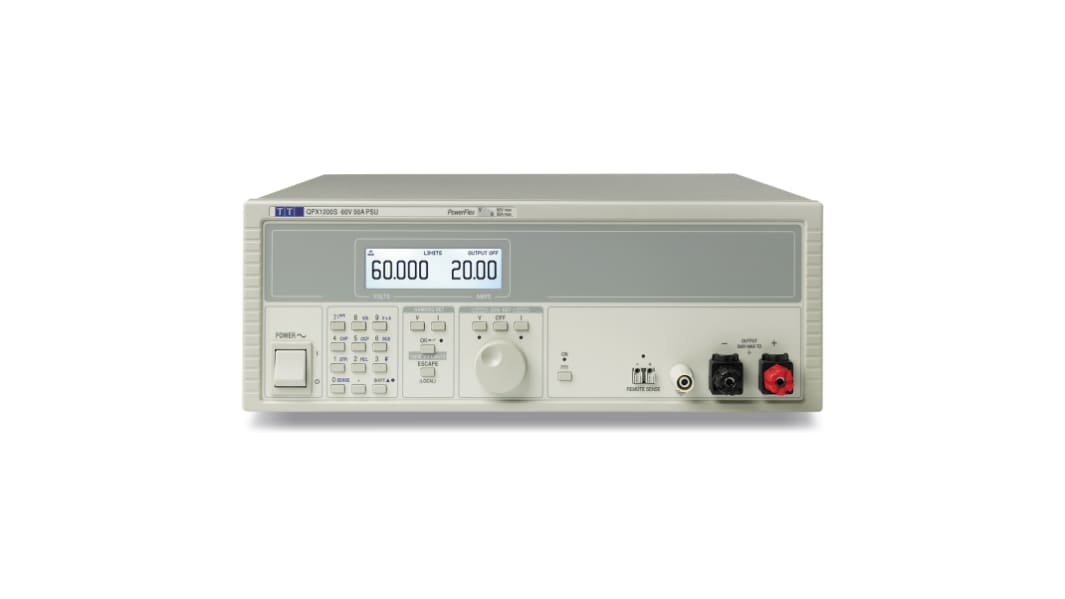

Aim-TTi Digital Bench Power Supply 1.2kW, 1 Output 0 → 60V 0 → 50A

  • RS Stock No. 731-2858
  • Mfr. Part No. QPX1200S
  • Manufacturer Aim-TTi
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

1.2KW PowerFlex, 60V/50A QPX1200S & SP

Suitable for bench or system use with terminals front and rear. The PowerFlex design offers voltage and current combinations between 60V/20A and 20V/50A. Mixed mode regulation with linear output stage gives low output noise. Both versions include an analogue interface. The SP version includes USB, RS232, GPIB and LAN (Ethernet) with support for LXI.

PowerFlex design gives variable voltage/current combinations
Up to 60V and up to 50A within power envelope
Setting by direct numeric entry or spin wheel
High setting resolution 1mV
3U sized casing suitable for bench-top or rack mounted use, front and rear terminals
Analogue remote control interface
Full range of digital interfaces, RS232, USB,LXI compliant LAN and GPIB (QPX1200SP only)

Note

Interfaces are standard analogue ( 731-2858 ) +LXi, USB, RS232, GPIB ( 731-2852 )

Supplied with

Manual, mains lead and CD containing driver software

//media.rs-online.com/t_line/L6654915-01.gif
Specifications
Attribute Value
Output Voltage 0 → 60V
Output Current 0 → 50A
Number of Outputs 1
Type Digital
Power Rating 1.2kW
Supply Voltage 110 → 240V ac
Number of Displays 1
Input Connector IEC 320
Output Connector Binding Post Terminal
Minimum Temperature +5°C
Maximum Temperature +40°C
8 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 7,880.42
units
Per unit
1 +
MYR7,880.42
