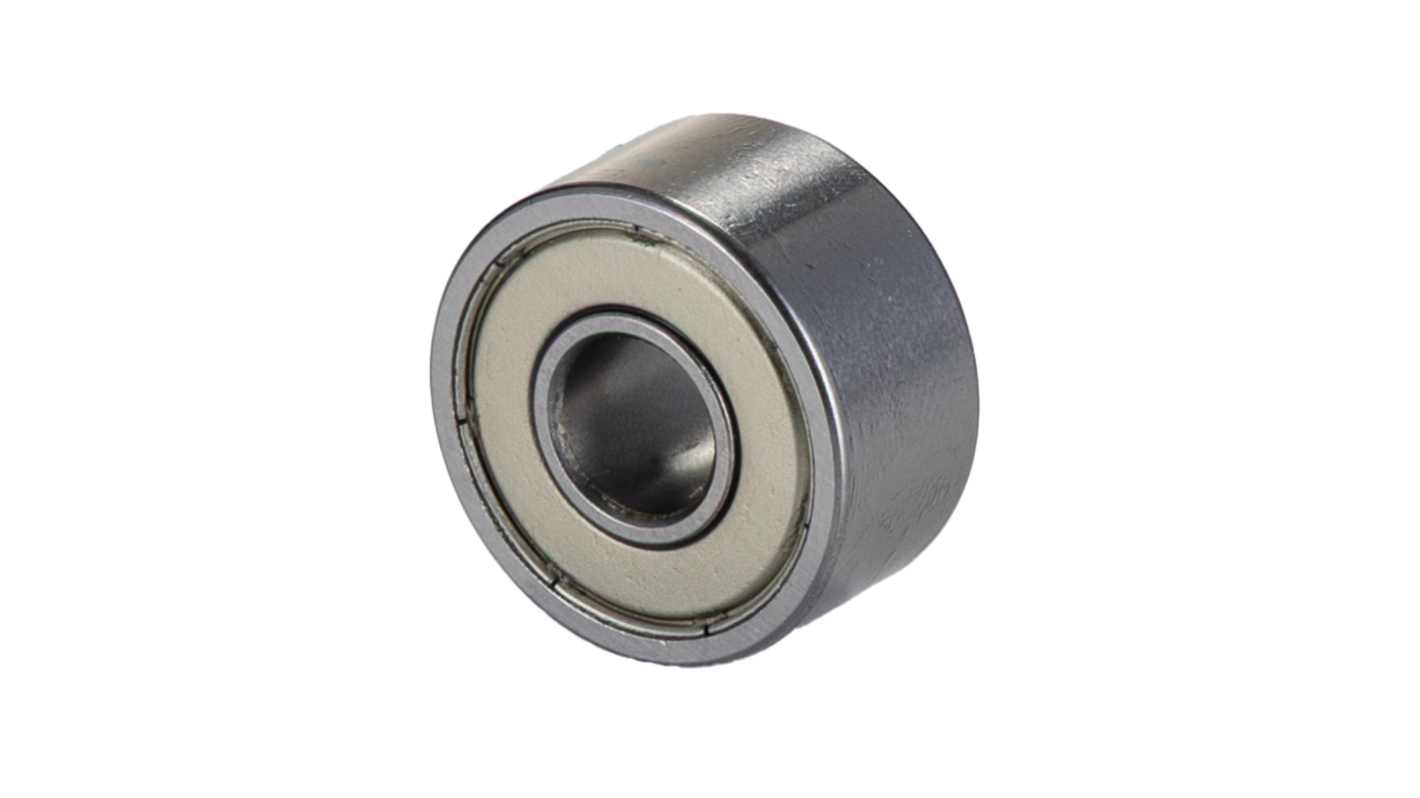

FAG 30/8-B-2Z-TVH Double Row Angular Contact Ball Bearing- Both Sides Shielded 8mm I.D, 22mm O.D
- RS Stock No.:
- 190-8352
- Mfr. Part No.:
- 30/8-B-2Z-TVH
- Manufacturer:
- FAG
54 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR245.40
| Units | Per Unit |
| 1 + | MYR245.40 |
- RS Stock No.:
- 190-8352
- Mfr. Part No.:
- 30/8-B-2Z-TVH
- Manufacturer:
- FAG
Technical data sheets
Legislation and Compliance
Product Details
The design envelope is not sufficient under high loads for a pair of single row angular contact ball bearings
High radial and axial loads are acting simultaneously
Tilting moments must also be supported
A relatively rigid bearing arrangement is required
The bearing arrangement is to run quietly in addition to meeting the requirements stated above
High radial and axial loads are acting simultaneously
Tilting moments must also be supported
A relatively rigid bearing arrangement is required
The bearing arrangement is to run quietly in addition to meeting the requirements stated above
Specifications
Attribute | Value |
|---|---|
| Inside Diameter | 8mm |
| Outside Diameter | 22mm |
| Race Width | 11mm |
| Ball Bearing Type | Double Row Angular Contact Ball Bearing |
| Sealing Arrangement | Both Sides Shielded |
| Bearing Clearance | CN |
| Material | Steel |
| Ball Material | Steel |
| Cage Material | Steel |
| Number of Rows | 2 |
| Static Load Rating | 2.6kN |
| Dynamic Load Rating | 5.1kN |
| Bore Type | Parallel |
| Bearing Series | 0 Extra Light |
| Race Type | Plain |
| Partial Bearing Code | 30/8-B-2Z |
