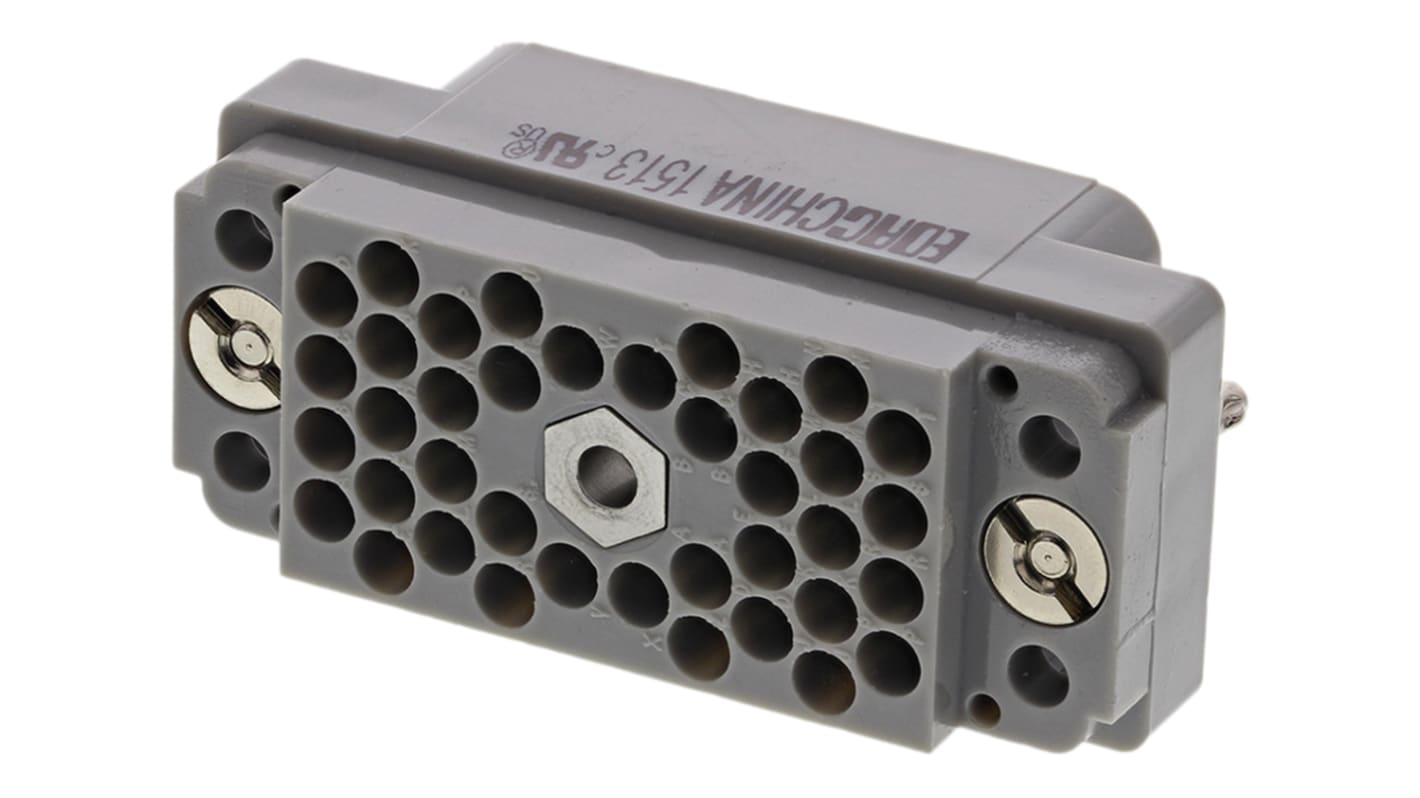

EDAC, 516 Heavy Duty Power Connector, Male, Straight, 38 Way

  • RS Stock No. 259-9580
  • Mfr. Part No. 516-038-000-302
  • Manufacturer EDAC
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): CN
Product Details

Rack and Panel Plug Connector Housing

From EDAC, the cable mounting rack and panel connector housing incorporates an actuating screw to facilitate connection with a corresponding receptacle.

Crimp, solder and wire wrap contacts are available for this connector housing, and are sold separately.

//media.rs-online.com/t_line/L259956-01.gif

EDAC 516 Range

This extensive range of 8.5A multipole connectors is suitable for use in a wide range of applications where safety and/or ultra-reliability is required. These include audio broadcast, railway signalling, oil and gas industry control systems together with general industrial and automotive control & test systems. These connectors are suitable wherever a multi-pin cable to panel or cable to cable connection is required. The plugs or receptacles of this high density system can form either the fixed or free half of the connector, providing designers with great flexibility.

Guaranteed secure connection
Hermaphroditic metal to metal contact design
Polarized mouldings and metal locators
Crimp, solder or wire wrap contacts
Contacts fit plug and socket

Specifications
Attribute Value
Gender Male
Number of Contacts 38
Body Orientation Straight
Contact Material Phosphor Bronze
Contact Plating Gold
Current Rating 8.5A
Series 516
Maximum Operating Temperature +105°C
Minimum Operating Temperature -65°C
324 In Global stock for delivery within 4 - 6 working days
Price Each
Was MYR48.71
MYR 36.22
units
Per unit
1 - 14
MYR36.22
15 - 49
MYR35.10
50 - 99
MYR34.61
100 +
MYR33.78
