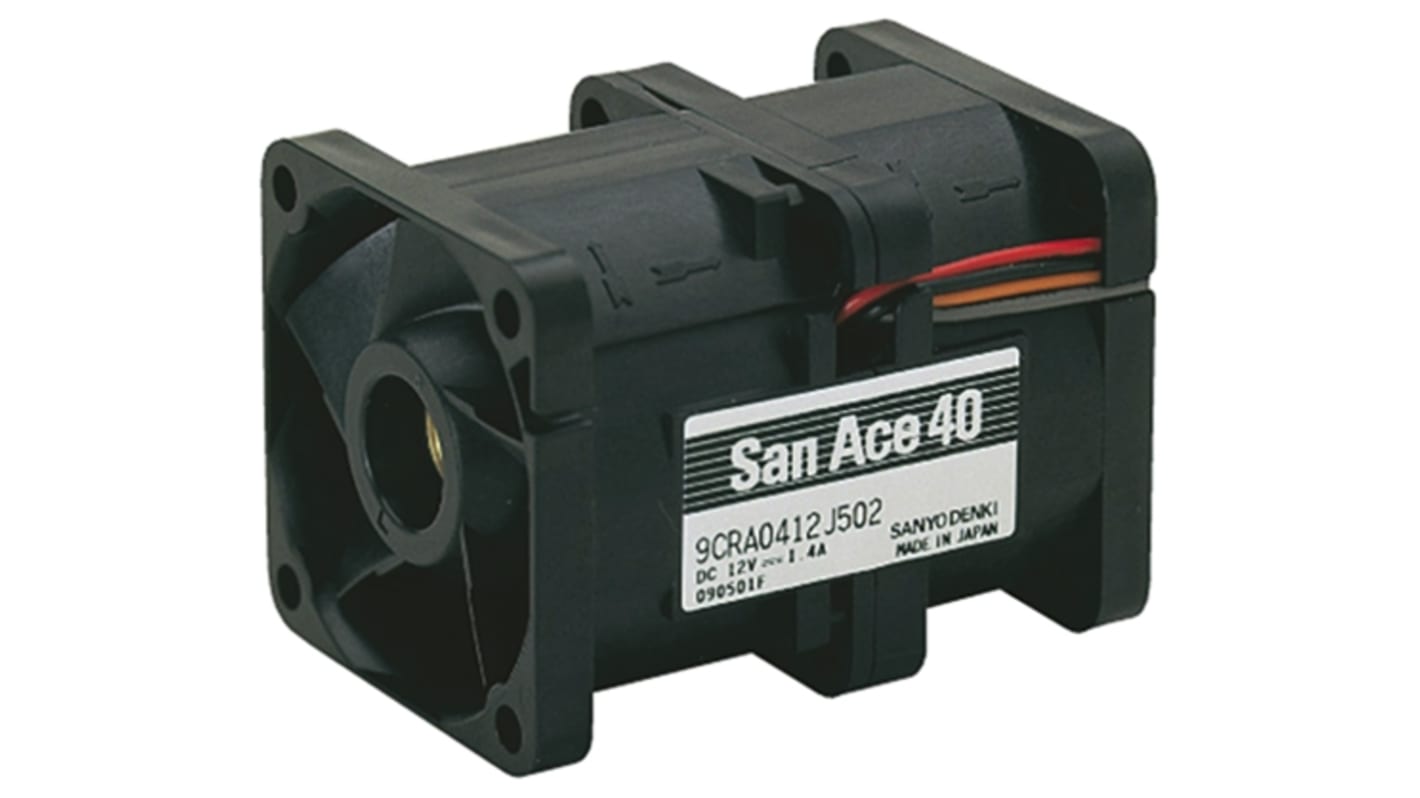

Sanyo Denki San Ace 9CRA Series Axial Fan, 12 V dc, DC Operation, 54m³/h, 16.8W, 1.4A Max, 40 x 40 x 56mm
- RS Stock No.:
- 800-4296
- Mfr. Part No.:
- 9CRA0412J501
- Manufacturer:
- Sanyo Denki
33 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR173.31
| Units | Per Unit |
| 1 + | MYR173.31 |
- RS Stock No.:
- 800-4296
- Mfr. Part No.:
- 9CRA0412J501
- Manufacturer:
- Sanyo Denki
Legislation and Compliance
- COO (Country of Origin):
- PH
Product Details
San Ace Counter Rotating DC Fans - CR Series
Sanyo Denki CR series counter rotating DC fans feature exceptional levels of air flow and static pressure due to the back-to-back fan configuration. The long life, space optimising design of the CR series makes these fans suitable for a wide variety of demanding applications.
Specifications
Attribute | Value |
|---|---|
| Supply Voltage | 12 V dc |
| AC or DC Operation | DC |
| Height | 56mm |
| Power Consumption | 16.8W |
| Width | 40mm |
| Depth | 56mm |
| Maximum Current | 1.4A |
| Air Flow | 54m³/h |
| Termination Type | Lead Wire |
| Dimensions | 40 x 40 x 56mm |
| Noise Level | 62dB |
| Fan Speed | 12200 rpm, 15800rpm |
| Sensor Type | Tachometer |
| Bearing Type | Ball |
