Sunon A2123 Series Axial Fan, 230V ac, 161.4 m³/h, 22 W, 120 mA Max 120 mm, 120mm, 38 mm
- RS Stock No.:
- 544-1169
- Mfr. Part No.:
- A2123-HSL.GN
- Manufacturer:
- Sunon
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
MYR121.22
FREE delivery for orders over RM 150.00
In Stock
- 258 unit(s) ready to ship from another location
- Plus 80 unit(s) shipping from 13 April 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | MYR121.22 |
| 5 - 9 | MYR117.57 |
| 10 - 24 | MYR113.92 |
| 25 - 49 | MYR111.50 |
| 50 + | MYR109.06 |
*price indicative
- RS Stock No.:
- 544-1169
- Mfr. Part No.:
- A2123-HSL.GN
- Manufacturer:
- Sunon
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sunon | |
| Product Type | Axial Fan | |
| Supply Voltage | 230V ac | |
| Power Consumption | 22W | |
| Maximum Current | 120mA | |
| Air Flow | 161.4m³/h | |
| Noise Level | 46dB | |
| Fan Speed | 2750rpm | |
| External Depth | 38mm | |
| Direction of Curve | Forward | |
| Terminal Type | Wire | |
| Bearing Type | Sleeve | |
| Fan Frame Type | Square | |
| Fan Frame Size | 120 mm | |
| Height | 120mm | |
| Depth | 38mm | |
| Standards/Approvals | RoHS, cUR, TUV, UL, CE | |
| Width | 120mm | |
| Series | A2123 | |
| Select all | ||
|---|---|---|
Brand Sunon | ||
Product Type Axial Fan | ||
Supply Voltage 230V ac | ||
Power Consumption 22W | ||
Maximum Current 120mA | ||
Air Flow 161.4m³/h | ||
Noise Level 46dB | ||
Fan Speed 2750rpm | ||
External Depth 38mm | ||
Direction of Curve Forward | ||
Terminal Type Wire | ||
Bearing Type Sleeve | ||
Fan Frame Type Square | ||
Fan Frame Size 120 mm | ||
Height 120mm | ||
Depth 38mm | ||
Standards/Approvals RoHS, cUR, TUV, UL, CE | ||
Width 120mm | ||
Series A2123 | ||
- COO (Country of Origin):
- CN

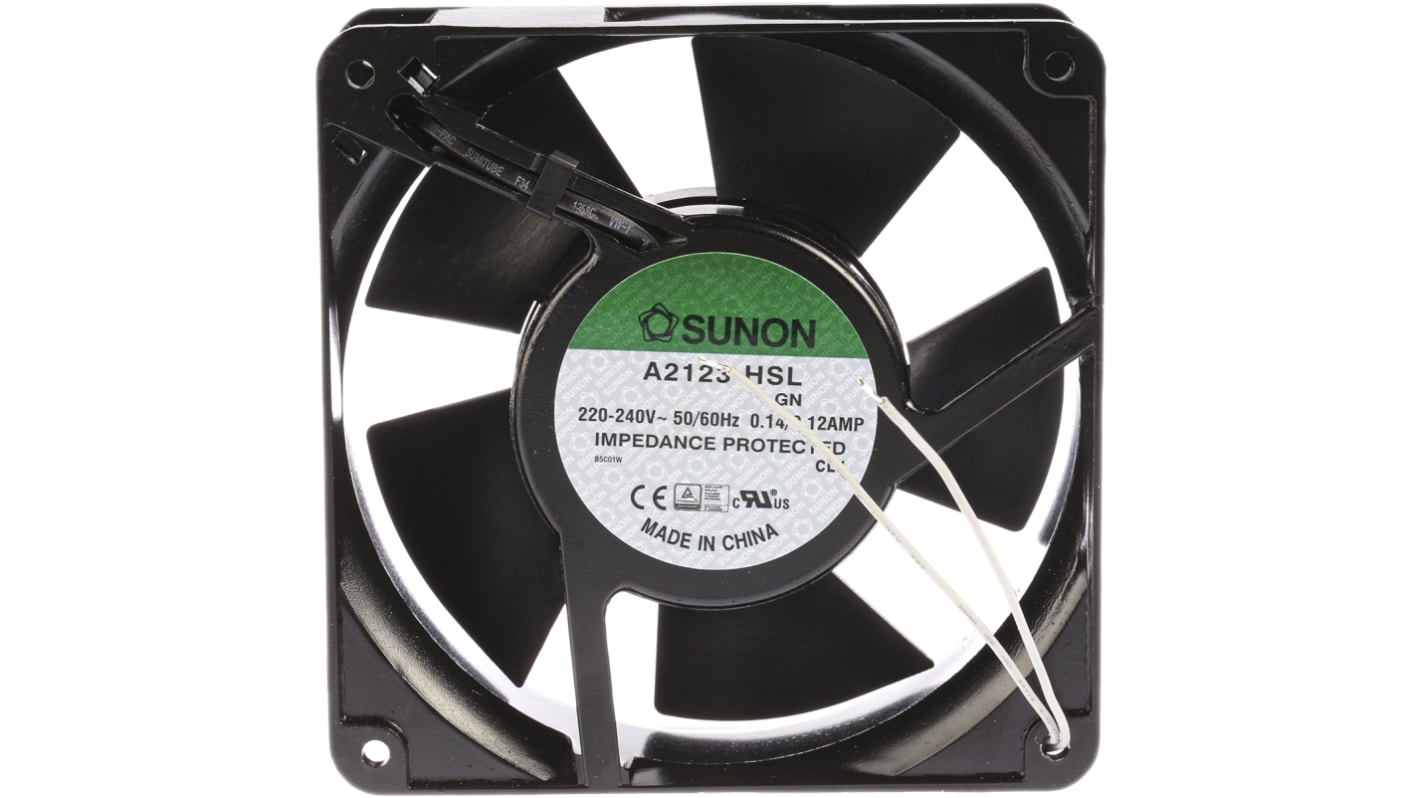

Sunon Sleeve Bearing Axial Fan
The Sunon sleeve bearing axial fan has 120mm x 120mm x 38mm in size. The supply voltage rating is 230VAC. This fan has 2750rpm motor speed. It uses Maglev-powered technology, which enables fault-free use for a significant period. This ensures DC fans provide a flexible and dependable cooling solution for applications that require a fan to be mounted in any axial position. This fan has a power consumption rating of 1.66W. Sunon DR Maglev power series DC fans utilise Maglev technology to produce a fan with superior performance, low noise and long life. Maglev achieves this through zero friction – no contact between shaft and bearing. With excellent rotational stability, the Maglev fan eliminates vibration and typical wobble and shaking typically experienced in fan motors. Maglev also provides excellent high-temperature endurance that results in a long life. Additionally, Maglev fans also feature all-plastic manufacture of major items for optimal insulation resistance and electrostatic discharge (ESD) performance.
Features and Benefits
Operating temperature ranges between -10°C and 70°C
Supplied with fasten terminal
Blow or extract mounting capability
Applications
Overhead projection equipment
Laptops and game consoles
Digital appliances
Heavy industry
Medical
Opto-electronics
Automotive
Network communication
Certifications
NSI/ESD S20.20:2014
BS EN 61340-5-1:2007
