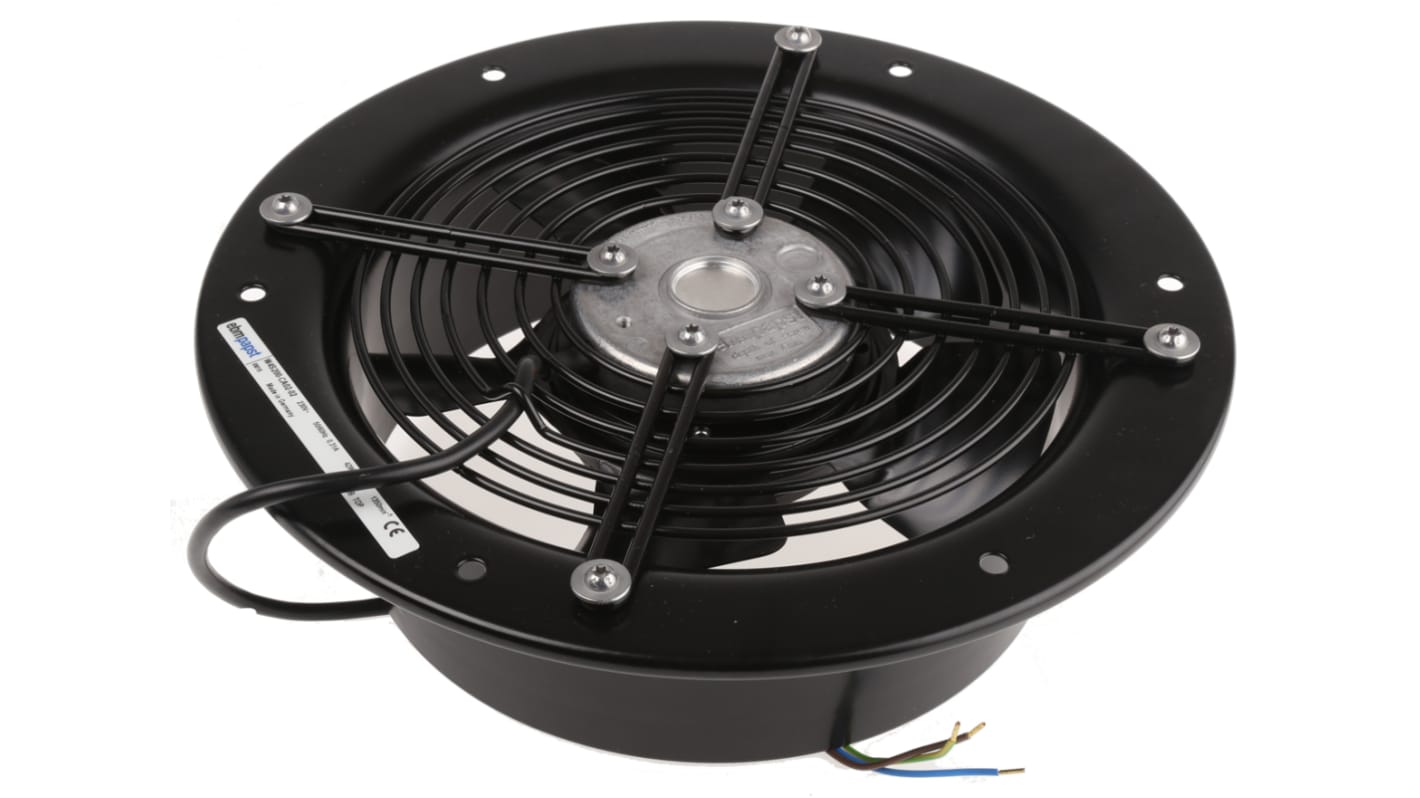

ebm-papst W4S200 Series Axial Fan, 200 x 80mm, 375m³/h, 40W, 230 V ac

  • RS Stock No. 218-3129
  • Mfr. Part No. W4S200-CA02-02
  • Manufacturer ebm-papst
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Helical fans with round base

Fans with encapsulated ball bearings
4-pole, equipped with a yellow chrome-plated protective grille located on the inlet side.
The helix is made of galvanised steel with a black paint coating.
The fans are produced with a single-phase external rotor with phase-shifting rings (WS) or capacitor (WE).
WE versions are supplied with a capacitor whereas W4S versions do not require a capacitor.
Applications: air conditioning, air renewal and cooling of electrical and electronic equipment.
Thermal protection by thermocontact and windings.

//media.rs-online.com/t_line/LF218312-10.gif
//media.rs-online.com/t_line/LF218312-11.gif
Specifications
Attribute Value
Dimensions 200 x 80mm
Supply Voltage 230 V ac
AC or DC Operation AC
Power Consumption 40W
Maximum Current 300mA
Depth 80mm
Air Flow 375m³/h
Noise Level 52dB
Fan Speed 1380rpm
Bearing Type Ball
26 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 971.58
units
Per unit
1 - 4
MYR971.58
5 - 9
MYR905.49
10 - 24
MYR871.04
25 - 49
MYR851.50
50 +
MYR833.24
