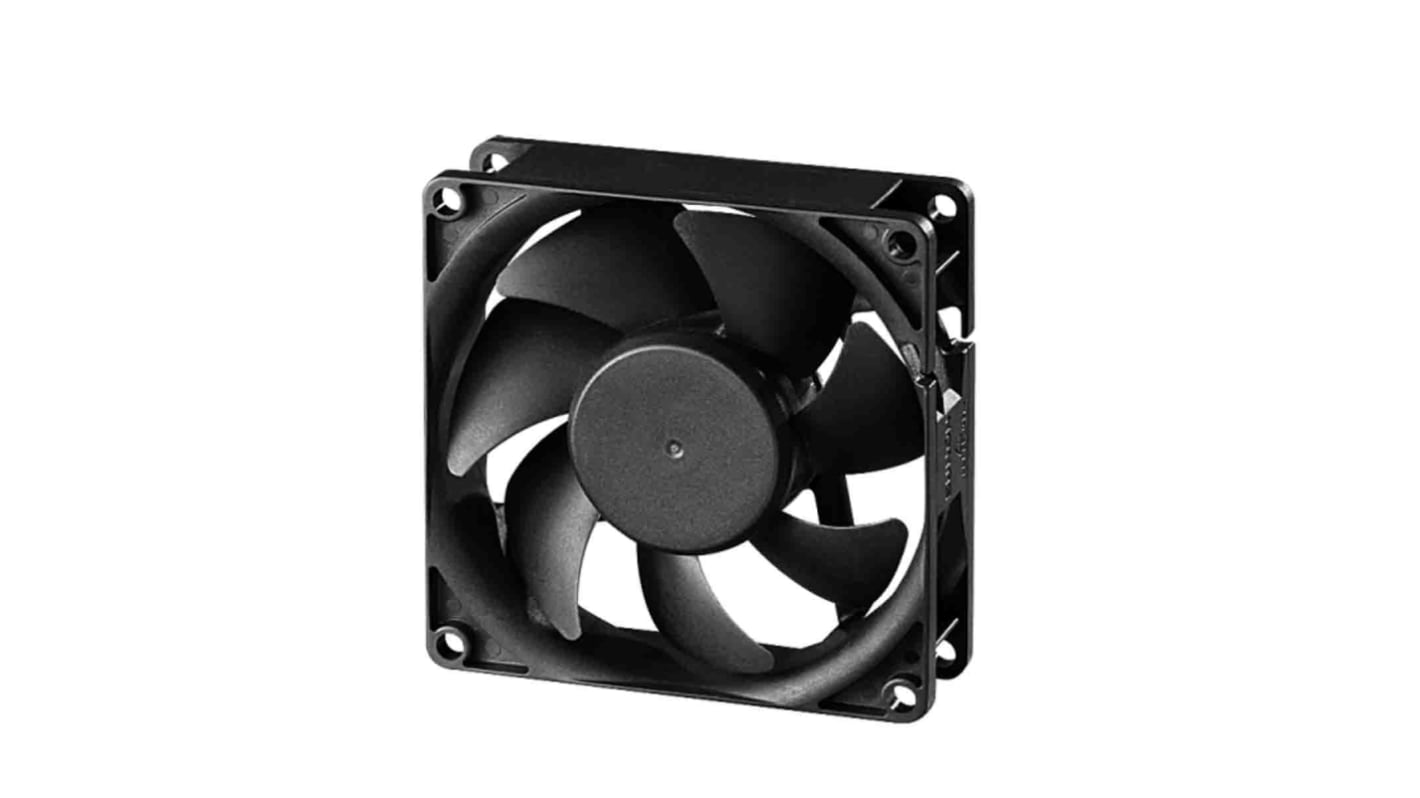

Sunon PF Series Axial Fan, 24V dc, 60 cfm, 3.72 W, 171 mA Max, IP20 80 mm 80mm 25 mm
- RS Stock No.:
- 202-5441
- Distrelec Article No.:
- 303-35-141
- Mfr. Part No.:
- PF80252B1-1000U-A99
- Manufacturer:
- Sunon
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
MYR92.31
FREE delivery for orders over RM 150.00
Temporarily out of stock
- 164 unit(s) shipping from 08 December 2026
- Plus 50 unit(s) shipping from 05 January 2027
- Plus 150 unit(s) shipping from 19 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 4 | MYR92.31 |
| 5 - 9 | MYR90.37 |
| 10 - 49 | MYR87.66 |
| 50 - 99 | MYR85.51 |
| 100 + | MYR83.64 |
*price indicative
- RS Stock No.:
- 202-5441
- Distrelec Article No.:
- 303-35-141
- Mfr. Part No.:
- PF80252B1-1000U-A99
- Manufacturer:
- Sunon
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sunon | |
| Product Type | Axial Fan | |
| Supply Voltage | 24V dc | |
| Power Consumption | 3.72W | |
| Maximum Current | 171mA | |
| Air Flow | 60cfm | |
| Noise Level | 45.5dB | |
| Fan Speed | 4800rpm | |
| Terminal Type | Wire | |
| Direction of Curve | Forward | |
| External Depth | 25mm | |
| Fan Frame Size | 80 mm | |
| Bearing Type | Ball | |
| Fan Frame Type | Square | |
| Standards/Approvals | TUV, cUR, CE, UL | |
| Height | 80mm | |
| Series | PF | |
| Depth | 25mm | |
| Width | 80mm | |
| IP Rating | IP20 | |
| Select all | ||
|---|---|---|
Brand Sunon | ||
Product Type Axial Fan | ||
Supply Voltage 24V dc | ||
Power Consumption 3.72W | ||
Maximum Current 171mA | ||
Air Flow 60cfm | ||
Noise Level 45.5dB | ||
Fan Speed 4800rpm | ||
Terminal Type Wire | ||
Direction of Curve Forward | ||
External Depth 25mm | ||
Fan Frame Size 80 mm | ||
Bearing Type Ball | ||
Fan Frame Type Square | ||
Standards/Approvals TUV, cUR, CE, UL | ||
Height 80mm | ||
Series PF | ||
Depth 25mm | ||
Width 80mm | ||
IP Rating IP20 | ||
The Sunon MagLev motor fan has precise vapo bearing system . It also has counter clockwise rotation viewed from front of the fan blade.
Automatic restart
Polarity protection
