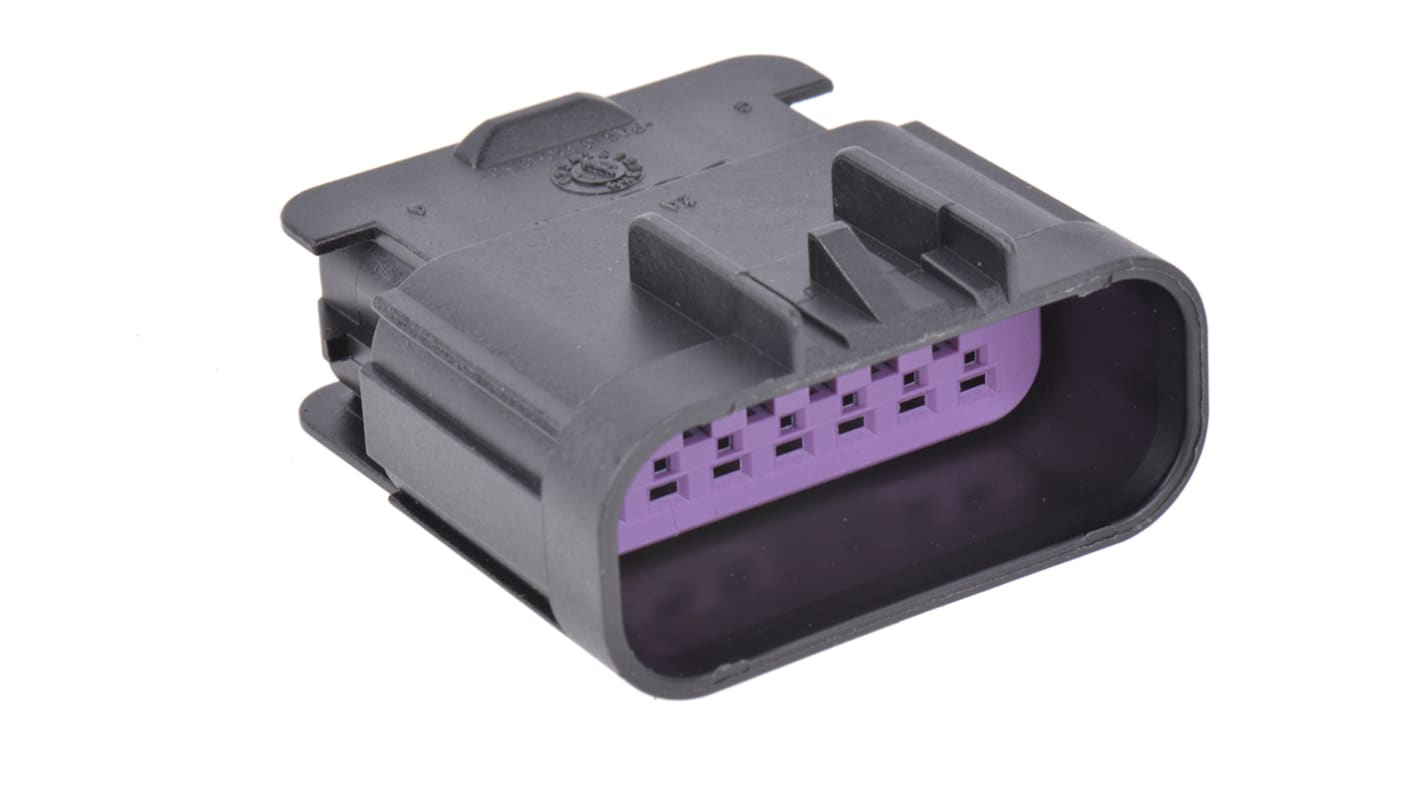

Delphi, GT 150 Automotive Connector Male Black Cable 14 Way Crimp Termination 15326861
- RS Stock No.:
- 896-1978
- Mfr. Part No.:
- 15326861
- Manufacturer:
- Delphi
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 10 units)*
MYR107.35
FREE delivery for orders over RM 150.00
In Stock
- 30 unit(s) ready to ship from another location
- Plus 100 unit(s) shipping from 04 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Pack* |
|---|---|---|
| 10 - 90 | MYR10.735 | MYR107.35 |
| 100 - 490 | MYR10.414 | MYR104.14 |
| 500 + | MYR10.101 | MYR101.01 |
*price indicative
- RS Stock No.:
- 896-1978
- Mfr. Part No.:
- 15326861
- Manufacturer:
- Delphi
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Delphi | |
| Product Type | Automotive Connector | |
| Sub Type | Automotive Connector | |
| Termination Type | Crimp | |
| Number of Contacts | 14 | |
| Current | 15A | |
| Gender | Male | |
| Number of Rows | 1 | |
| Mount Type | Cable | |
| Series | GT 150 | |
| Cord Included | No | |
| Colour | Black | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | RoHS | |
| Width | 43.1mm | |
| Height | 24.5mm | |
| Depth | 43.4mm | |
| Housing Material | Polyamide | |
| Contact Plating | Tin | |
| Contact Material | Tin Brass | |
| Select all | ||
|---|---|---|
Brand Delphi | ||
Product Type Automotive Connector | ||
Sub Type Automotive Connector | ||
Termination Type Crimp | ||
Number of Contacts 14 | ||
Current 15A | ||
Gender Male | ||
Number of Rows 1 | ||
Mount Type Cable | ||
Series GT 150 | ||
Cord Included No | ||
Colour Black | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals RoHS | ||
Width 43.1mm | ||
Height 24.5mm | ||
Depth 43.4mm | ||
Housing Material Polyamide | ||
Contact Plating Tin | ||
Contact Material Tin Brass | ||
Delphi GT150 Sealed Male Automotive Connectors
The Delphi GT150 series of sealed automotive connectors have a 1.5mm blade width. These automotive connectors have silver interface plating which pass the SAE ® J2030 Heavy Duty Connector standard. The connectors have a maximum current capacity of 15 Amps and a temperature range of -40°C to -125°C.
