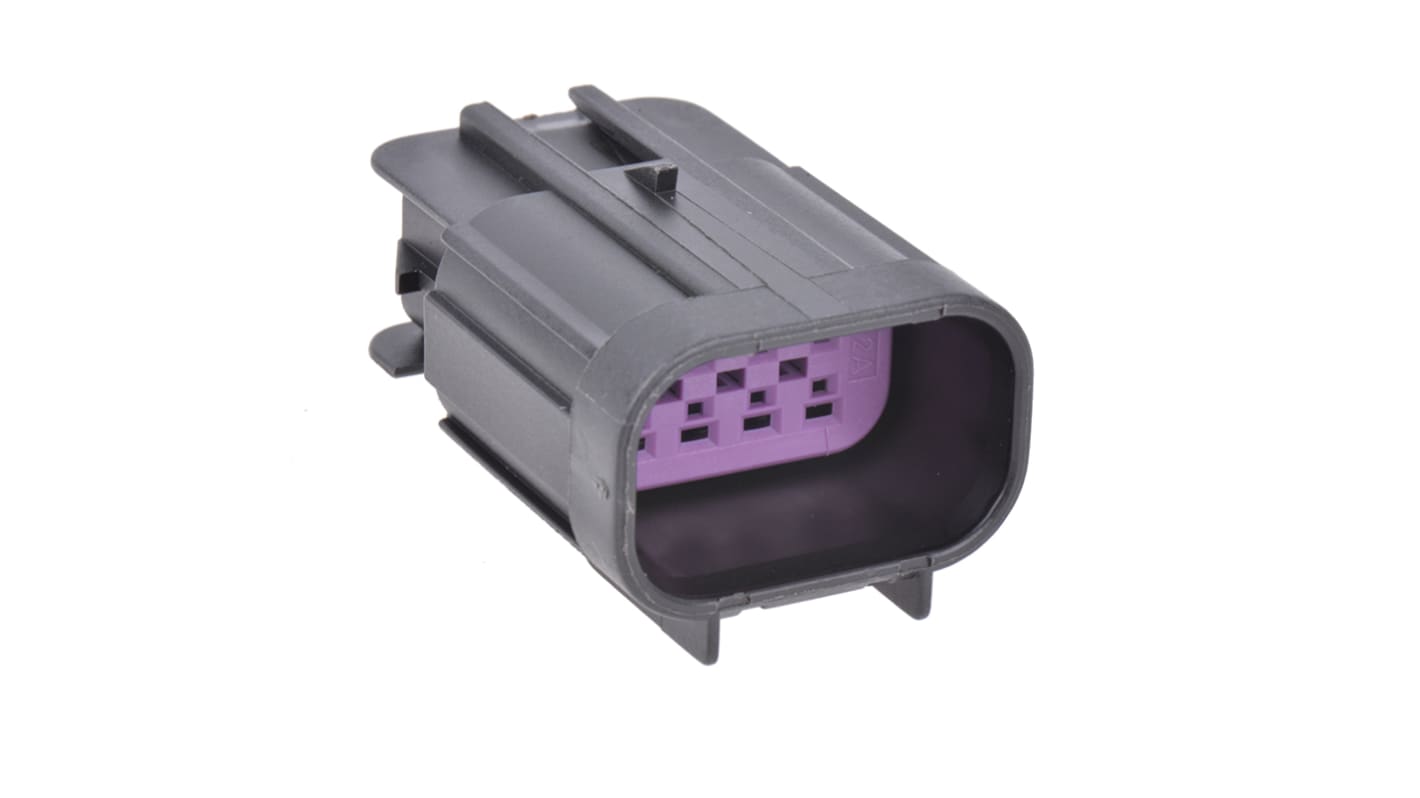

Delphi GT 150 Series, 8 Way Cable Mount Plug Connector, with Crimp Termination Method

  • RS Stock No. 896-1969
  • Mfr. Part No. 15326840
  • Manufacturer Delphi
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Delphi GT150 Sealed Male Automotive Connectors

The Delphi GT150 series of sealed automotive connectors have a 1.5mm blade width. These automotive connectors have silver interface plating which pass the SAE ® J2030 Heavy Duty Connector standard. The connectors have a maximum current capacity of 15 Amps and a temperature range of -40°C to -125°C.

Delphi GT150 Series Automotive Connectors

Specifications
Attribute Value
Number of Contacts 8
Type Connector
Gender Male
Current Rating 15A
Mounting Type Cable Mount
Series GT 150
Colour Black
Termination Method Crimp
Height 24.5mm
Width 29.6mm
Depth 43.4mm
Maximum Operating Temperature +125°C
Contact Plating Tin
Housing Material PA 6
Minimum Operating Temperature -40°C
Contact Material Tin Brass
570 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 10)
MYR 8.418
units
Per unit
Per Pack*
10 - 90
MYR8.418
MYR84.18
100 - 240
MYR4.694
MYR46.94
250 - 490
MYR4.60
MYR46.00
500 - 990
MYR4.508
MYR45.08
1000 +
MYR4.418
MYR44.18
*price indicative
