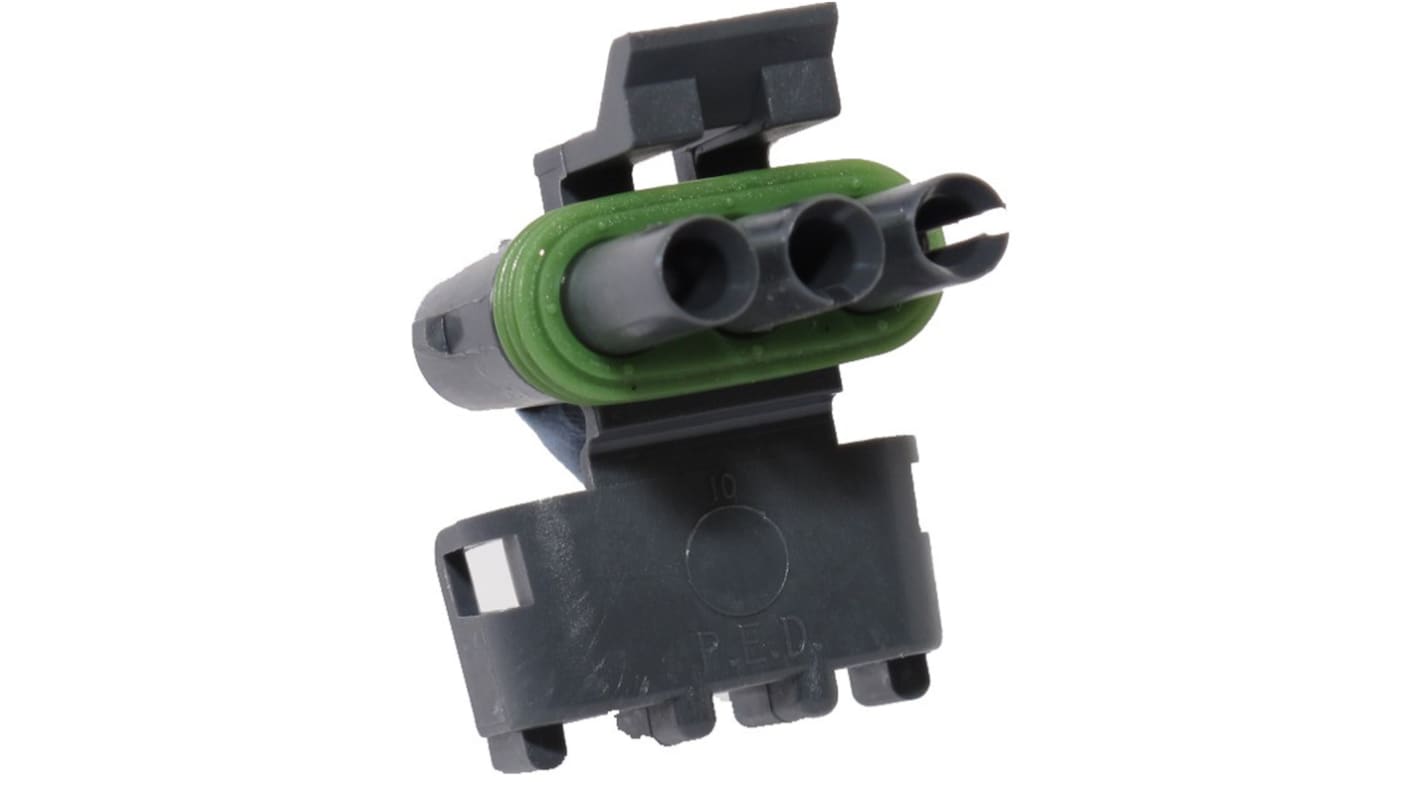

Delphi Weather-Pack Series, 1 Row 3 Way Cable Mount Plug Connector, with Crimp Termination Method

  • RS Stock No. 896-1644
  • Mfr. Part No. 12015384
  • Manufacturer Delphi
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Delphi Weather-Pack Sealed Male Automotive Connector Assemblies

Weather-Pack sealed male automotive connector assemblies with triple ribbed silicone connector and cavity seals designed to withstand extreme temperatures, chemicals and fluids. The terminals of these Weather-Pack automotive connectors are tin plated and have special core wings that allow crimp only connections so solder is not needed, the dual tangs on the terminals help prevent backing out. These Weather-Pack automotive connectors have positive locking indexing to prevent mismating along with secondary lock and Connector Position Assurance (CPA)
Typical applications for these Weather Pack sealed automotive connectors are low energy, low voltage automotive applications in harsh environments such as commercial vehicle and marine applications.
For mating connectors, crimp terminals and cable seals please see table.

Delphi Weather-Pack Series Automotive Connectors

Specifications
Attribute Value
Number of Contacts 3
Type Connector
Gender Male
Number of Rows 1
Current Rating 20A
Mounting Type Cable Mount
Series Weather-Pack
Colour Grey
Termination Method Crimp
Contact Plating Tin
Housing Material PA6, PA66
Maximum Operating Temperature +125°C
Minimum Operating Temperature -40°C
Contact Material Tin Brass
460 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 10)
MYR 4.341
units
Per unit
Per Pack*
10 - 90
MYR4.341
MYR43.41
100 - 240
MYR3.907
MYR39.07
250 - 490
MYR3.689
MYR36.89
500 - 990
MYR3.472
MYR34.72
1000 +
MYR3.255
MYR32.55
*price indicative
