TE Connectivity, Junior Power Timer Automotive Connector Female Green Cable 2 Way Solder Termination 282189-4
- RS Stock No.:
- 718-6889
- Distrelec Article No.:
- 302-73-300
- Mfr. Part No.:
- 282189-4
- Manufacturer:
- TE Connectivity

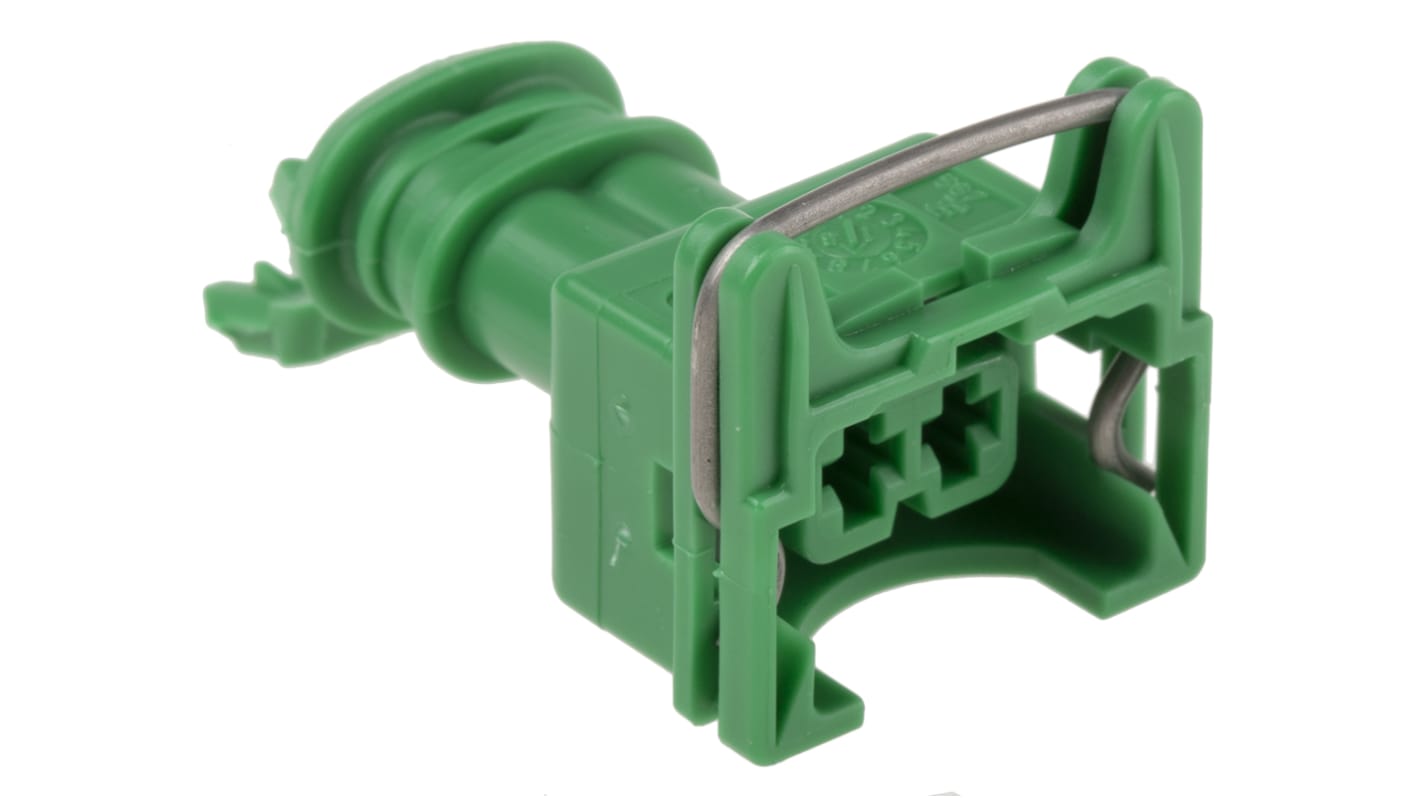

This image is representative of the product range
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
MYR5.84
FREE delivery for orders over RM 150.00
In Stock
- 69 unit(s) ready to ship from another location
- Plus 217 unit(s) shipping from 18 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 - 299 | MYR5.84 |
| 300 - 599 | MYR5.66 |
| 600 + | MYR5.49 |
*price indicative
- RS Stock No.:
- 718-6889
- Distrelec Article No.:
- 302-73-300
- Mfr. Part No.:
- 282189-4
- Manufacturer:
- TE Connectivity
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Automotive Connector | |
| Number of Contacts | 2 | |
| Termination Type | Solder | |
| Sub Type | Automotive Connector Housing | |
| Gender | Female | |
| Number of Rows | 1 | |
| Mount Type | Cable | |
| Series | Junior Power Timer | |
| Cord Included | No | |
| Colour | Green | |
| IP Rating | IP54K | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 125°C | |
| Width | 23.8mm | |
| Standards/Approvals | RoHS | |
| Height | 23mm | |
| Depth | 37.5mm | |
| Housing Material | Nylon | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Automotive Connector | ||
Number of Contacts 2 | ||
Termination Type Solder | ||
Sub Type Automotive Connector Housing | ||
Gender Female | ||
Number of Rows 1 | ||
Mount Type Cable | ||
Series Junior Power Timer | ||
Cord Included No | ||
Colour Green | ||
IP Rating IP54K | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 125°C | ||
Width 23.8mm | ||
Standards/Approvals RoHS | ||
Height 23mm | ||
Depth 37.5mm | ||
Housing Material Nylon | ||
- COO (Country of Origin):
- IT
TE Connectivity Junior Power Timer Connector Housings with Secondary Locking
Junior Power timer receptacle style connector housings for socket contacts with a 5mm centreline. These receptacle housings are sealed and have a secondary locking mechanism.
Timer connector housings are accessible from power to high pin density PCB links with a broad range of cavity choices. These connectors recognize Timer contacts and are accessible in housings for pins and receptacles.
Features and Benefits
• Connector Style: Housing for female terminals.
• Connector System: Wire-to-Board, Wire-to-Device.
• Primary Locking Feature: Integrated in Housing, On the Terminal
• Number of Positions: 55
• Pitch: 5 mm
• Series: Junior Power Timer
TE Connectivity Automotive Connectors
